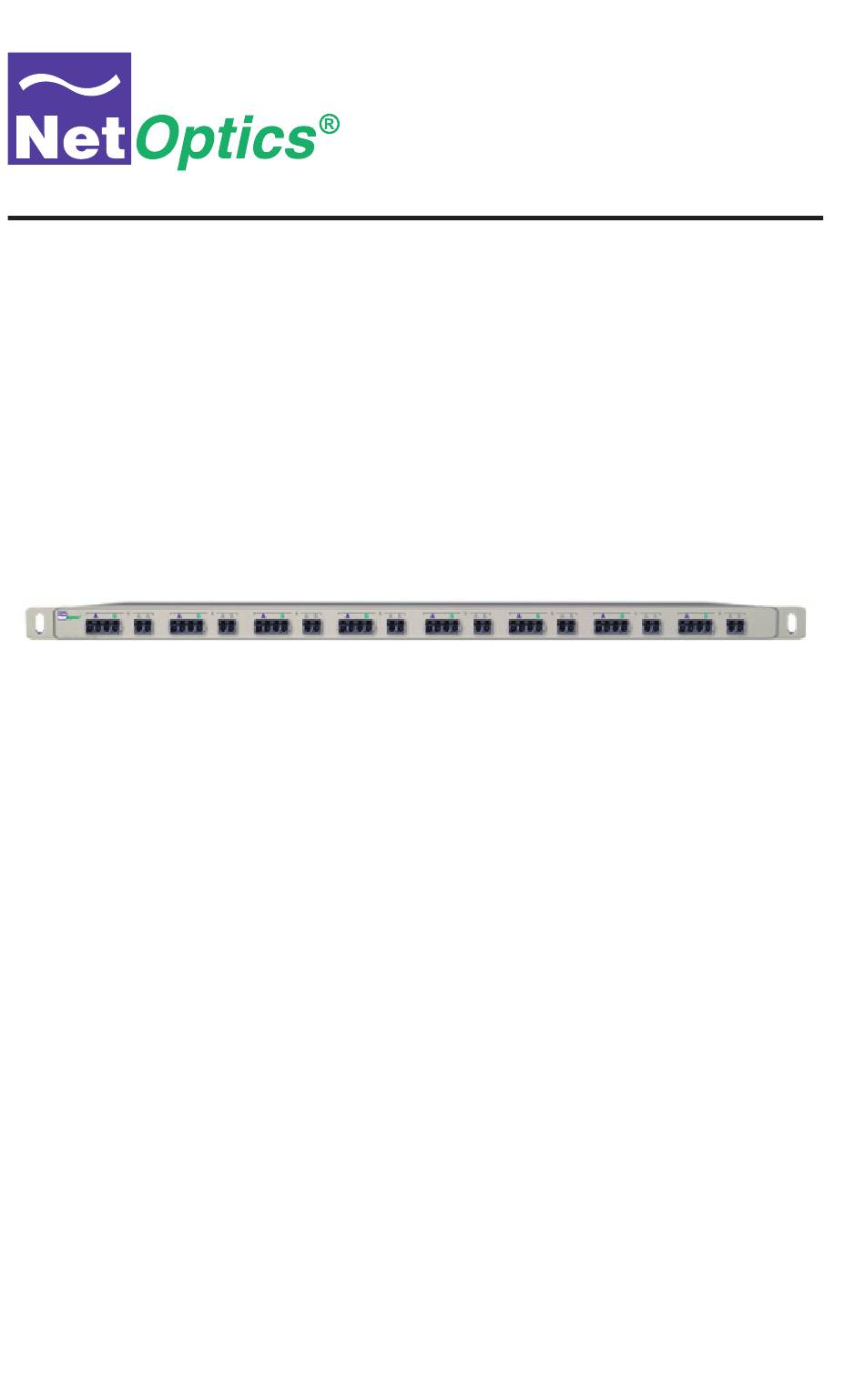

- Page 1 Installation Guide for Fiber Tap HD8 800-0153-001 Doc. PUBTP800800XU Rev.D 11/11...
-
Page 3: Table Of Contents
Fiber Tap HD8 Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Key Features . - Page 4 PLEASE READ THESE LEGAL NOTICES CAREFULLY. By using a Net Optics Tap you agree to the terms and conditions of usage set forth by Net Optics, Inc . No licenses, express or implied, are granted with respect to any of the technology described in this manual .
-
Page 5: Introduction
10 GigaBit Fiber Tap HD8 supports passive monitoring of fiber optics links. Slim Profile Flat-out, the thinnest 8 station Fiber Tap HD8. The new slim profile of the Fiber Tap HD8 saves rack space—install up to sixteen Taps in a one rack unit panel . All Optical Design Requiring no power, Fiber Tap HD8 maintains permanent passive access ports without introducing a point of failure or disturbing other network connections . -
Page 6: Key Features
Support • Net Optics offers free technical support throughout the lifetime of your purchase. Our technical support team is available from 8 am to 5 pm Pacific Time, Monday through Friday at +1 (408) 737-7777 and via email at ts-support@netoptics .com . -
Page 7: About This Guide
Fiber Tap HD8 About This Guide Please read the guide before attempting to install Fiber Tap HD8 . This guide covers the following models: Part Number Description Split Ratio TP-800 GigaBit Multimode Fiber Tap HD8 (SX) 50/50 TP-803 GigaBit Multimode Fiber Tap HD8 (SX) -
Page 8: Product Diagram
Fiber Tap HD8 Product Diagram Network Port Segments Splitter Tap HD Splitter Tap HD LASER www.netoptics.com OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT CAUTION! Monitor Ports Segments Figure 1: Front Panel (all models) -
Page 9: Connecting To The Network
Fiber Tap HD8 Connecting to the Network 1 . Connect Network Port A to the appropriate network device using a Duplex LC cable . 2 . Connect Network Port B to the appropriate network device using a Duplex LC cable . -
Page 10: Connecting To The Monitoring Device
Fiber Tap HD8 Connecting to the Monitoring Device 1 . Connect to the Monitor Port using a Net Optics custom LC analyzer cable 2. Connect one side of the twin-duplex fiber cable into a RX port on the monitoring device to view one side of the full-duplex link . -
Page 11: Specifications
Fiber Tap HD8 Specifications Splitter Specifications Fiber Type 10 Gigabit model: Corning Multimode 50 or 62 .5/125µm, wavelength 850nm Split Ratio Network Port Insertion Loss Monitor Port Insertion Loss 50/50 ≤ 4.5 dB ≤ 4.5 dB 70/30 ≤ 2.4 dB ≤... -
Page 12: Limitations On Warranty And Liability
. Net Optics, Inc . warrants this Tap to be in good working order for a period of ONE YEAR from the date of purchase from Net Optics or an authorized Net Optics reseller . - Page 13 Fiber Tap HD8 Notes:...
- Page 14 Fiber Tap HD8 Notes:...
- Page 16 © 2010 by Net Optics, Inc . All Rights Reserved .
