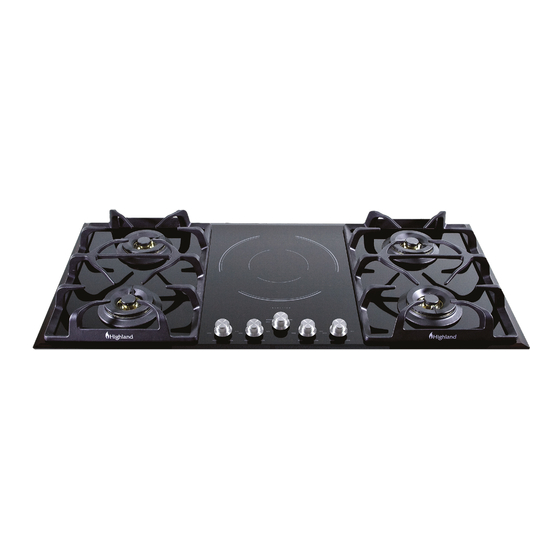

Related Manuals for Highland PROFESSIONAL SERIES HP5CI N/L
Summary of Contents for Highland PROFESSIONAL SERIES HP5CI N/L
- Page 1 APPLIANCE OPERATION MANUAL...
- Page 2 TO USE YOUR NEW HIGHLAND COOKTOP 1. Push down on the knob to engage ignition system 2. Turn to the ‘max’ position to activate gas. 3. Continue pressing down on knob firmly, hold this position for 2-3 seconds.
- Page 3 You are also entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. The benefits under Highland’ s warranty are in addition to other rights you have at law in relation to the appliances or services to which the warranty relates.
- Page 4 APPLIANCE OPERATION MANUAL MODELS COVERED PROFESSIONAL SERIES HP5CI N/L HP6.2SS N/L & HP6.2C N/L HP5C N/L HP4.2SSN/L & HP4.2C N/L TRINITY SERIES HT1SS N/L, HT1CN/L HT3CI N/L HT3C N/L & HT3SS N/L...
-
Page 5: Table Of Contents
APPLIANCE OPERATION MANUAL APPLIANCE OPERATION MANUAL Contents General information 04 Safety when in use 05 General Assembly 06--07 Electric control 08 Electric Induction cooking 09--13 Legend and Manual ignition for gas 14 Care and Maintanence 16--17 Fault finding/ abnormal operation 18 Installation instructions 19--20 Servicing instructions 21--23 Product specifications 25--27... -
Page 6: General Information
GENERAL INFORMATION The highland range of cook tops are state of the art appliances featuring the latest in flame auto safety shut off. Should the flame on any burner be extinguished accidentally then the gas flow to that burner will automatically cease to flow, ensuring no hazardous build up of flammable gas from the cook top can then occur. -
Page 7: Safety When In Use
APPLIANCE OPERATION MANUAL SAFETY WHEN IN USE PLEASE READ AND KEEP FOR FUTURE REFERENCE SAFETY WHEN IN USE 1. Remember this appliance produces heat and therefore some parts will get hot. Let pan supports and other surfaces cool down before touching them. 2. -
Page 8: General Assembly
APPLIANCE OPERATION MANUAL GENERAL ASSEMBLY PROCEDURE FOR INSTALLATION PLEASE READ AND KEEP FOR FUTURE REFERENCE GENERAL ASSEMBLY PROCEDURE FOR INSTALLATION Ensure all packaging, including polystyrene, plastic and cardboard has been removed from around the appliance and burner area. Ensure that all burner(s), trivets, grates and panels are correctly located and supported. ABNORMAL OPERATION If you are aware of any change in the operation of the appliance consult a qualified service person. -
Page 9: Maintenance Schedule
APPLIANCE OPERATION MANUAL GENERAL ASSEMBLY PROCEDURE FOR INSTALLATION PLEASE READ AND KEEP FOR FUTURE REFERENCE GAS CONTROLS - Lighting Procedure NOTE: ALWAYS ENSURE ALL PARTS ARE CLEAN AND DRY PRIOR TO OPERATING ANY BURNER. It is important that the burner assembly sequence on the previous page is performed prior to initial operation of the cook top or light back may occur which could affect the burner. -
Page 10: Electric Control
APPLIANCE OPERATION MANUAL ELECTRIC CONTROL- HILITE ELEMENT SELECTED MODELS ONLY PLEASE READ AND KEEP FOR FUTURE REFERENCE ELECTRIC CONTROL- HILITE ELEMENT-SELECTED MODELS ONLY The control knob adjusts either the whole of the element (inner and outer rings) or just the inner ring. Turning the knob anti clockwise adjusts the inner element from Min to Max Turning the knob clockwise adjusts the total element from Min to Max. -
Page 11: Electric Induction Cooking
APPLIANCE OPERATION MANUAL ELECTRIC INDUCTION COOKING SELECTED MODELS ONLY PLEASE READ AND KEEP FOR FUTURE REFERENCE ELECTRIC INDUCTION COOKING – Selected models only The ceramic Induction hob fully complies with current legislation regarding electro-magnetic interference and is designed not to interfere with other electronic appliances providing these comply with the same legislation. As the hob generates fields in the immediate vicinity, Pacemakers and Active Heart Implants must be designed to comply with relevant regulations. - Page 12 APPLIANCE OPERATION MANUAL ELECTRIC INDUCTION COOKING SELECTED MODELS ONLY PLEASE READ AND KEEP FOR FUTURE REFERENCE USE OF THE HOB - INDUCTION • Do not use the appliance until the installation is complete. • Ensure that the appliance is switched OFF when not in use, switch off the hob element by it`s control and do not rely on the pan detector.
- Page 13 APPLIANCE OPERATION MANUAL ELECTRIC INDUCTION COOKING SELECTED MODELS ONLY PLEASE READ AND KEEP FOR FUTURE REFERENCE PROCEDURE TO START PARBOILING - Induction Automatic parboiling is activated by turning the knob anti clockwise briefly, the `A` symbol will appear. The required onboiling stage is selected by turning knob clockwise which is shown on the display. The `A` symbol appears after 1 second upon releasing the knob.
- Page 14 APPLIANCE OPERATION MANUAL ELECTRIC INDUCTION COOKING SELECTED MODELS ONLY PLEASE READ AND KEEP FOR FUTURE REFERENCE SYSTEM TEMPERATURE CONTROL – Induction Sensors situated inside the top constantly measures the temperature of the generator`s electronic circuits. In the event of these circuits overheating the system reacts as follows: When the first temperature is exceeded the system automatically switches off the booster.
- Page 15 APPLIANCE OPERATION MANUAL ELECTRIC INDUCTION COOKING SELECTED MODELS ONLY PLEASE READ AND KEEP FOR FUTURE REFERENCE PAN SENSOR –Induction This feature is able to recognise the presence of a pan that according to the scale of the EN Standards is one size smaller than the nominal diameter of the burner.
-
Page 16: Legend And Manual Ignition For Gas
APPLIANCE OPERATION MANUAL LEGEND AND MANUAL IGNITION FOR GAS BURNERS PLEASE READ AND KEEP FOR FUTURE REFERENCE LEGEND – GAS CONTROL GRAPHICS – WOK BURNER Both inner and outer burners are operating at maximum output. The inner burner remains on full output, but the outer burner is on minimum output. The inner burner is on full output and the outer burner is extinguished. -
Page 17: Care And Maintenance
NOTE: The black chrome will eventually burn off with time however this will not affect the performance of the burners. The burners can be re- chromed with Highland`s exchange program, for a nominal fee. The burner cap can be removed and cleaned with a soft bristled brush and warm soapy water or they can be placed in the dishwasher. -
Page 18: Fault Finding/ Abnormal Operation
APPLIANCE OPERATION MANUAL FAULT FINDING/ ABNORMAL OPERATION PLEASE READ AND KEEP FOR FUTURE REFERENCE FAULT FINDING / ABNORMAL OPERATION FAULT POSSIBLE SOLUTION(S) BURNER LIGHTS, BUT GOES OUT WHEN CONTROL IS CONTROL Knob IS TO BE PRESSED DOWN FIRMLY, AND RELEASED (Gas) HELD FIRMLY, DURING IGNITION PROCEDURE FOR 5 SECONDS. -
Page 19: Installation Instructions
ASNZS3000 and any other building requirements. The electrical connection for the 240V AC supply is by plug to a switched GPO. Highland models with induction must be wired to a 15 Amp switched GPO socket. Do not remove plug and fix wire. - Page 20 APPLIANCE OPERATION MANUAL INSTALLATION INSTRUCTIONS PLEASE READ AND KEEP FOR FUTURE REFERENCE NOTE: CONNECTION OF THE APPLIANCE TO THE GAS SUPPLY MUST BE IN ACCORDANCE WITH THE REQUIREMENTS OF ASNZ5601. A ½ INCH BSP CONNECTION AT THE INLET IS RECOMMENDED AND THE GAS SUPPLY LINE TO THE APPLIANCE MUST BE OF ADEQUATE LENGTH TO ALLOW SUFFICIENT WITHDRAWAL OF APPLIANCE FOR SERVICE OR DISCONNECTION.
-
Page 21: Servicing Instructions
APPLIANCE OPERATION MANUAL SERVICING INSTRUCTIONS PLEASE READ AND KEEP FOR FUTURE REFERENCE NOTE: Servicing is only to be conducted by an authorized agent. Consult data plate for detailed wiring diagram. The gas valves, injectors, venture`s, ignition system and burners are accessed by removing the hob from the appliance. - Page 22 APPLIANCE OPERATION MANUAL SERVICING INSTRUCTIONS PLEASE READ AND KEEP FOR FUTURE REFERENCE SERVICING INSTRUCTIONS For models with a stainless steel hob, the hob can be unscrewed by removing the dome nuts from the top, the two middle front nuts do not need to be removed. Lift the hob off the appliance as shown in the following diagram.
- Page 23 GAS VALVE ADJUSTMENT AND MINIMUM SETTINGS Should you experience any problems with your appliance please call HIGHLAND 03 9700 9100 This large Wok burner is fitted with 2 X bypass screws that are accessed by removing the switch harness retaining clip and then removing the switch harness. There are two separate bypass screws- these screws are not adjustable and are supplied with specific orifices for each gas.
- Page 24 HIGHLAND COOK TOP FROM NATURAL GAS TO LP GAS PLEASE READ AND KEEP FOR FUTURE REFERENCE PROCEDURE FOR CONVERTING YOUR HIGHLAND COOK TOP FROM NATURAL GAS TO LP GAS Note: It is recommended this procedure is done by the authorised factory not in domestic situations 1.
-
Page 25: Product Specification
S ERIO US AB O U T C O OK I NG 6 4— APPLIANCE OPERATION MANUAL PRODUCT SPECIFICATION COOKTOPS C O O K TO P S P E C I F I C AT I O N S PLEASE READ AND KEEP FOR FUTURE REFERENCE Professional 1015MM Gas &... - Page 26 — 6 5 2013– 1 4 P RO DU CT CATA LO GU E APPLIANCE OPERATION MANUAL PRODUCT SPECIFICATION COOKTOPS PLEASE READ AND KEEP FOR FUTURE REFERENCE Professional 660MM Gas Cooktop 505mm HP4.2SSN/L & HP4.2C N/L 660mm Hob HP4.2C N/L: 4.0mm thick ceramic glass Hob HP4.2SS N/L: 3.0mm thick s/steel 4 Heat Zones 1 x 22 MJ: D size dual ring gas wok burner...
- Page 27 S E RI OU S A B O UT CO O KIN G 66 — APPLIANCE OPERATION MANUAL PRODUCT SPECIFICATION COOKTOPS PLEASE READ AND KEEP FOR FUTURE REFERENCE Trinity 850MM Gas & Induction Cooktop HT3CI N/L 4.0mm thick ceramic glass with 0.9mm (AISI304 grade) stainless steel control panel and ‘Scotchbrite’...
- Page 28 PHONE : +61 3 9700 9100 EMAIL : info@prks.com.au ADDRESS : 83 Bangholme Rd, Dandenong VIC 3175 www.highland.com.au...
