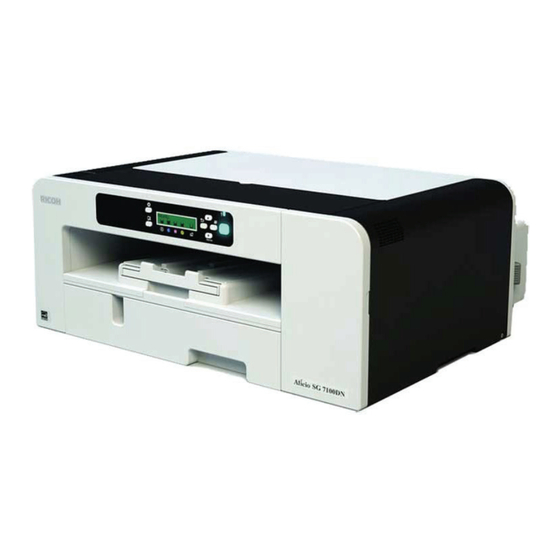

Ricoh SG 7100DN
PowerDriver V4

INsTALLATION GUIDE

Windows 7 & 8
CAUTION
DO NOT INSTALL THE RICOH (OEM) INKS THAT WERE PROVIDED WITH THE PRINTER.
DO NOT POWER ON THE PRINTER BEFORE INSTALLING SAWGRASS SUBLIJET-R INK CARTRIDGES.
DURING DOWNTIME, IT IS HIGHLY RECOMMENDED TO LEAVE THE PRINTER POWERED ON TO ALLOW
CLEAR.
THE RICOH AUTOMATIC MAINTENANCE UTILITIES TO KEEP THE PRINT HEAD NOZZLES
v20140514

Advertisement

loading

Related Manuals for Ricoh SubliJet R SG 7100DN

Summary of Contents for Ricoh SubliJet R SG 7100DN

  • Page 1: Installation Guide

    Windows 7 & 8 CAUTION DO NOT INSTALL THE RICOH (OEM) INKS THAT WERE PROVIDED WITH THE PRINTER. DO NOT POWER ON THE PRINTER BEFORE INSTALLING SAWGRASS SUBLIJET-R INK CARTRIDGES. DURING DOWNTIME, IT IS HIGHLY RECOMMENDED TO LEAVE THE PRINTER POWERED ON TO ALLOW CLEAR.
  • Page 2 PowerDriver V4 is only compatible with Windows versions 7 and 8. b) The Ricoh OEM printer driver is now automatically installed. * Step 1 is included in this document. Steps 2 and 3 are located on the Sublijet-R SG7100DN PowerDriver V4 Installation and Configuration webpage on sawgrassink.com...

  • Page 3: Click On The Installation & Configuration Instructions Button (See Figure

    Once there, hold the mouse arrow over Technical Support in the menu bar. From the drop down list that appears select SubliJet-R, Ricoh SG 7100DN then Windows 7 and 8 (see FIGURE 1).

  • Page 4: Link In Step 3, Download And Install The Ricoh Driver And Sawgrass Powerdriver V4 (See Figure

    Step 1 of 2: PowerDriver V4 Download & Installation Once on the appropriate Installation and Configuration Instructions webpage for your setup, click on the link in Step 3, Download and install the Ricoh Driver and Sawgrass PowerDriver V4 (see FIGURE 3). FIGURE 3 On the webpage that appears, click the link for the Ricoh SG 7100DN in the PowerDriver section (see FIGURE 4).

  • Page 5: See Figure

    SubliJet-R: Ricoh SG 7100DN – Installation Guide Step 1 of 2: PowerDriver V4 Download & Installation The following window will appear asking if you want to Run, Save or Cancel. Click Save (see FIGURE 5). Placeholder Images Placeholder Images Do you want to run or save SJR_7100_US_v1.0a27.exe (13.7MB) from sawgrassfiles.bluekeyinc.com? FIGURE 5 The file will begin downloading into the Downloads folder on your computer.
  • Page 6 SubliJet-R: Ricoh SG 7100DN – Installation Guide Step 1 of 2: PowerDriver V4 Download & Installation Select the appropriate language and click OK to continue (see FIGURE 7). FIGURE 7 Verify that the PowerDriver is for the correct printer. If so, click Next (see FIGURE 8).
  • Page 7 SubliJet-R: Ricoh SG 7100DN – Installation Guide Step 1 of 2: PowerDriver V4 Download & Installation If you agree with the terms of the License Agreement, click I Agree (see FIGURE 9). FIGURE 9 Click Install to allow PowerDriver to be installed into the correct destination folder (see FIGURE 10).
  • Page 8 22. Once the download has complete the Ricoh OEM driver will be installed. You will need to accept the Software License Agreement for installation to continue. If you agree with the terms select I accept the agreement and click Next (see FIGURE 12).
  • Page 9 SubliJet-R: Ricoh SG 7100DN – Installation Guide Step 1 of 2: PowerDriver V4 Download & Installation Select Add a new printer and click Next (see FIGURE 13). FIGURE 13 Select how the printer is connected to your computer and click Next (see FIGURE 14). For this example we will select Connect USB cable.
  • Page 10 SubliJet-R: Ricoh SG 7100DN – Installation Guide Step 1 of 2: PowerDriver V4 Download & Installation The following screen will appear asking you to select your printer (see FIGURE 15). Highlight RICOH AficioSG7100DN RPCS-R and click Next. FIGURE 15 Ensure your printer is powered OFF and click Next to continue (see FIGURE 16).
  • Page 11 SubliJet-R: Ricoh SG 7100DN – Installation Guide Step 1 of 2: PowerDriver V4 Download & Installation Once the files are finished copying, ensure your printer is powered ON and the computer will begin auto- detecting the port (see FIGURE 17).
  • Page 12 SubliJet-R: Ricoh SG 7100DN – Installation Guide Step 1 of 2: PowerDriver V4 Download & Installation Click Set Now to continue (see FIGURE 19) FIGURE 19 Click OK to continue (see FIGURE 20). FIGURE 20 PAGE 10 of 15 >>...
  • Page 13 SubliJet-R: Ricoh SG 7100DN – Installation Guide Step 1 of 2: PowerDriver V4 Download & Installation Select No, restart later. Click Finish to continue PowerDriver installation (see FIGURE 21). FIGURE 21 The following screen may or may not appear. If it does, you will need to accept the software license terms for the installation to continue.
  • Page 14 SubliJet-R: Ricoh SG 7100DN – Installation Guide Step 1 of 2: PowerDriver V4 Download & Installation Once this portion of the installation is complete the following screen will appear. Click Close to continue (see FIGURE 23). FIGURE 23 Click Yes when prompted to Register the PowerDriver. A separate Registration window will appear (see FIGURE 24).
  • Page 15 SubliJet-R: Ricoh SG 7100DN – Installation Guide Step 1 of 2: PowerDriver V4 Download & Installation Take note of the Product ID number, it will be needed to register your software. Click the Obtain Registration Code button (see FIGURE 25).
  • Page 16 SubliJet-R: Ricoh SG 7100DN – Installation Guide Step 1 of 2: PowerDriver V4 Download & Installation When the email with the Registration Code is received, enter it into the Registration Code text box and click Apply Registration Code (see FIGURE 27).
  • Page 17 SubliJet-R: Ricoh SG 7100DN – Installation Guide Step 1 of 2: PowerDriver V4 Download & Installation The following screen confirming that the driver settings have been initialized will appear. Click OK to continue (see FIGURE 29). FIGURE 29 You must restart your computer to complete the installation. Save and close any work that may be open and click Finish (see FIGURE 30).
