Page 1: User Manual

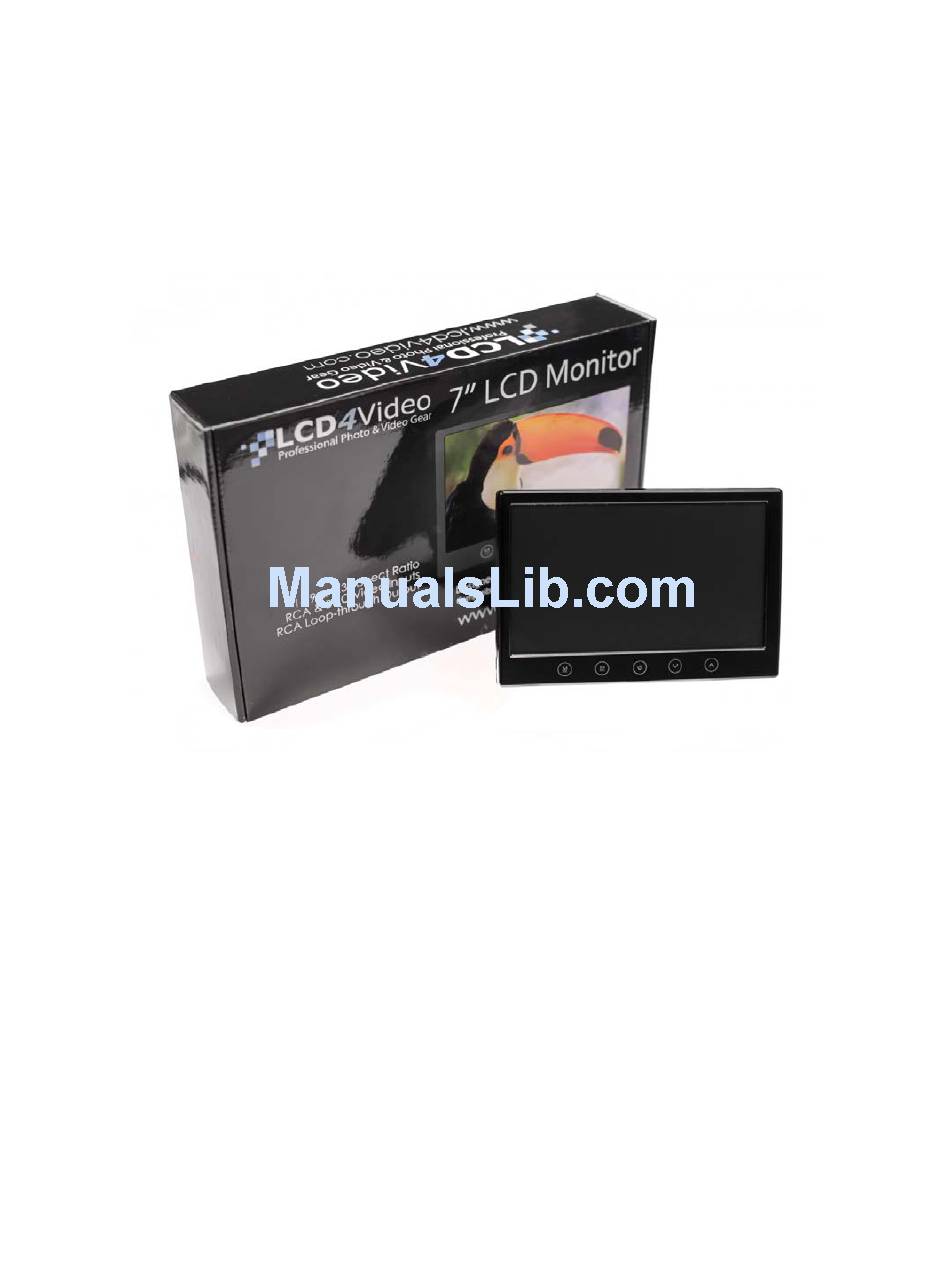

LCD4Video 7" LCD Monitor USER MANUAL Model # LCD7n... - Page 2 Thank you for purchasing our 7” LCD Monitor. The LCD7n 7" LCD Monitor is designed to be used as an external video display that can be mounted on top of a camera or to the side of a tripod, allowing you to step back from the camera while still being able to frame and capture the action without straining to look through the cameras usually small or non-existent viewfinder.
-
Page 3: Important Note
LCD in a variety of ways. USING A POWER SOURCE NOT SUPPLIED BY LCD4VIDEO COULD LEAD TO PERMANENT DAMGE NOT COVERED BY YOUR WARRANTY. IF YOU PLAN ON USING A POWER SOURCE FROM ANTOHER... - Page 4 Installation Carefully remove all contents from the box. • Connect the AV Cable to the LCD monitor. • Locate the Video output on your video source (Video Camera, DVD Player, Etc…) • The most common video output is a female RCA plug which is usually yellow. Many professional cameras may also have a BNC video out.
- Page 5 Connect your audio source to the white RCA plug on the LCD’s AV cable. (Audio only works on the AV1 Video Channel 1) Warranty This 7” TFT LCD Monitor is covered by a full 90-Day warranty. LCD4Video www.lcd4video.com | LCD4Video © 2013. All Rights Reserved. | revised 12.17.2013...
