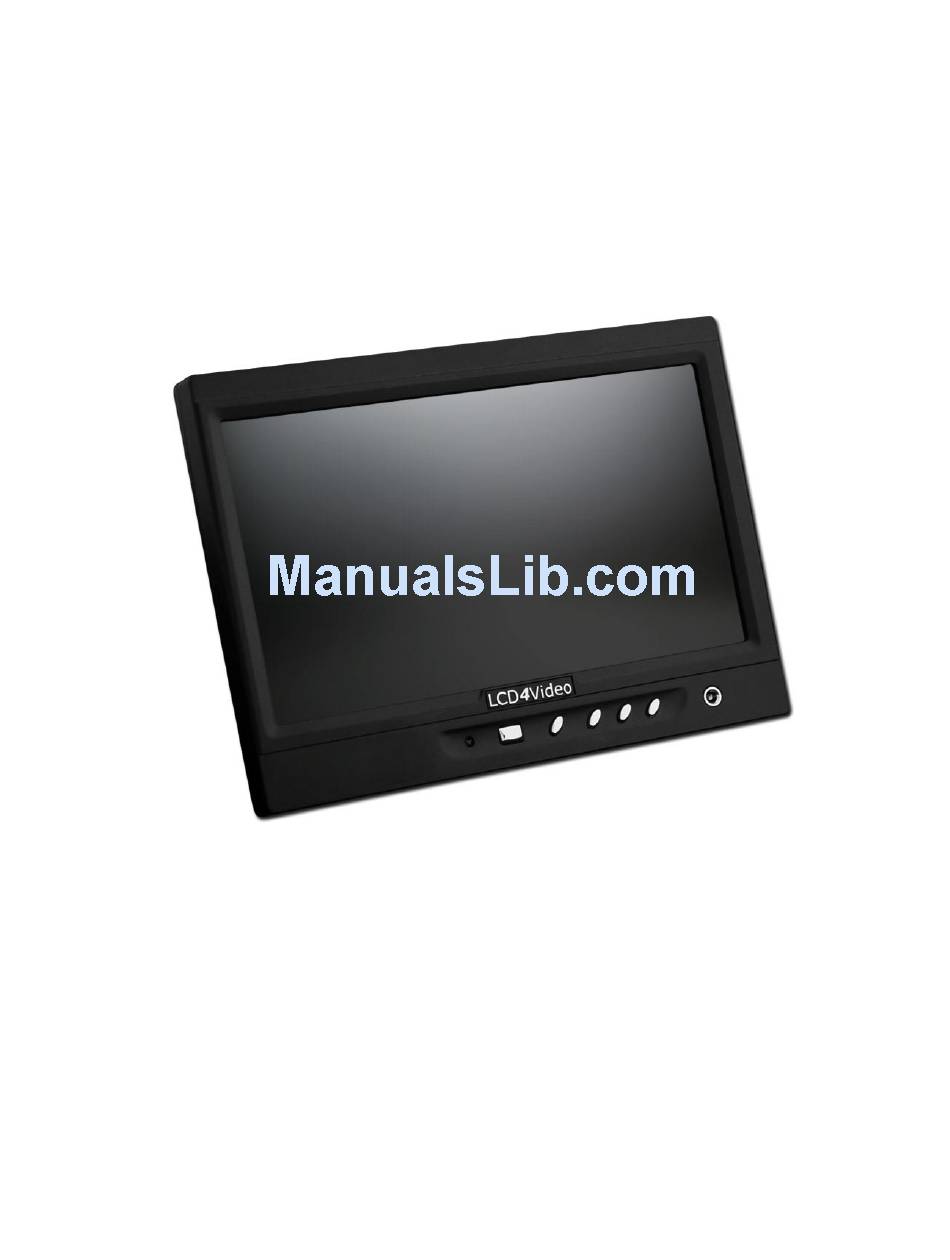

- Page 1 LCD4Video 7” LCD Monitor User Manual www.lcd4video.com Revised 5/1/2009...
- Page 2 • you spill something into the case • your display is exposed to rain or any other excess moisture • your display has been dropped or the case has been otherwise damaged • you suspect that your display needs service or repair www.lcd4video.com...
- Page 3 Page 11 - LCD Monitor Setup – LCD Monitor to Power Page 12 - Mounting the LCD with Optional Shoe Mount Page 13 - LCD Monitors On-Screen Display Settings Page 13 - LCD Monitors Image Flip Functions Page 14 - LCD4Video Warranty, Contact & Support www.lcd4video.com...
-
Page 4: Lcd Monitor - Front View
2) Video Input Select v1/v2 3) Menu/Volume Adjustment - 4) On-Screen Display Menu Button 5) Menu/Volume Adjustment + 6) Headphone Jack 7) Monitor AV Cable Input (Power, Audio & Video) 8) MMI Input (Not Used) 9) Remote IR Sensor www.lcd4video.com... -
Page 5: Remote Control
1) Power Button (on/off) 2) Brightness – 3) Brightness + 4) Color – 5) Color + 6) Contrast – 7) Contrast + 8) Volume – 9) Volume + 10) Video Input Select v1/v2 (RCA/BNC) 11) SYS – Image Flip Functions www.lcd4video.com... -
Page 6: Specifications
Vertical & Horizontal (Mirror Image) Flip w/Remote 'SYS' Backlight Cold Cathode Filament Tube Brightness 250-300cd/mSQ Power Consumption Low Power Consumption - 12 volts Input, 10W Max Operating Conditions 32°-140° F, 85% Max Humidity Weight 0.78 lb Dimensions 7.08" (W) x 5.35" (H) x .98" (D) www.lcd4video.com... -
Page 7: Standard Accessories
- with video loop through. AC Adapter 12 volt AC adapter allows you to power the monitor from any outlet. Desktop/Wall Stand Allows you to mount the monitor on a table or wall. Remote Control Wirelessly controls the monitors’ functions. www.lcd4video.com... -
Page 8: Optional Accessories
Sunhood Provides shade in direct sunlight for enhanced viewing. Attaches to the monitor with included Velcro strips. Carrying Case Protective cloth carrying case with two zippered pockets and various compartments to store and transport your monitor and accessories safely. www.lcd4video.com... -
Page 9: Compatible Batteries
The Panasonic Battery Adapter is compatible with a Panasonic CGR-D54 Lithium-Ion Battery (Run time tested at up to 8hrs.) The AA Battery Adapter works with Ten (10) Standard AA Batteries. (Run time tested at up to 3hrs. - Rechargeable Lithium AA Batteries will run longer) www.lcd4video.com... -
Page 10: Lcd Monitor Setup - Av Cable To Lcd Monitor
LCD Monitor Setup – AV Cable to LCD Monitor Connect the AV Cable to the LCD Monitor as shown below The Green RCA Plug is the Video Loop out. If needed - This will allow you to pass your video signal out to another display. www.lcd4video.com... -
Page 11: Lcd Monitor Setup - Av Cable To Camera
BNC and RCA video jacks. If you're plugged into one of these two jacks and you're not getting a signal, it's probably because this switch isn't positioned correctly. It's very tiny and kind of easy to miss! See photo above. www.lcd4video.com... -
Page 12: Lcd Monitor Setup - Lcd Monitor To Power
P a g e | 11 LCD Monitor Setup – LCD Monitor to Power Connect the AC Adapter to the small black end of the AV Cable. Plug the AC Adapter into a power outlet. www.lcd4video.com... -
Page 13: Mounting The Lcd With Optional Shoe Mount
LCD. You can adjust the wing nut to swivel the angle of the LCD on the camera. Note: Remove the square washer from the shoe mount. Do not use the rear channel on LCD to mount on a camera. www.lcd4video.com... -
Page 14: Lcd Monitors On-Screen Display Settings
This monitor easily switches between 16:9 and 4:3 aspect ratios and has image orientation controls where the picture can be flipped horizontally and vertically for DOF (depth-of-field) adapters. To flip the image, press the ‘SYS’ button on the remote, Repeat to cycle through the various modes. www.lcd4video.com... -
Page 15: Warranty
Damage caused during installation is not considered as a product defect and will not be covered by the warranty. LCD4Video Contact & Support It is our ultimate goal to provide all of our customers with the best customer service and support. We want to make sure that all of our customers are 100% satisfied.
