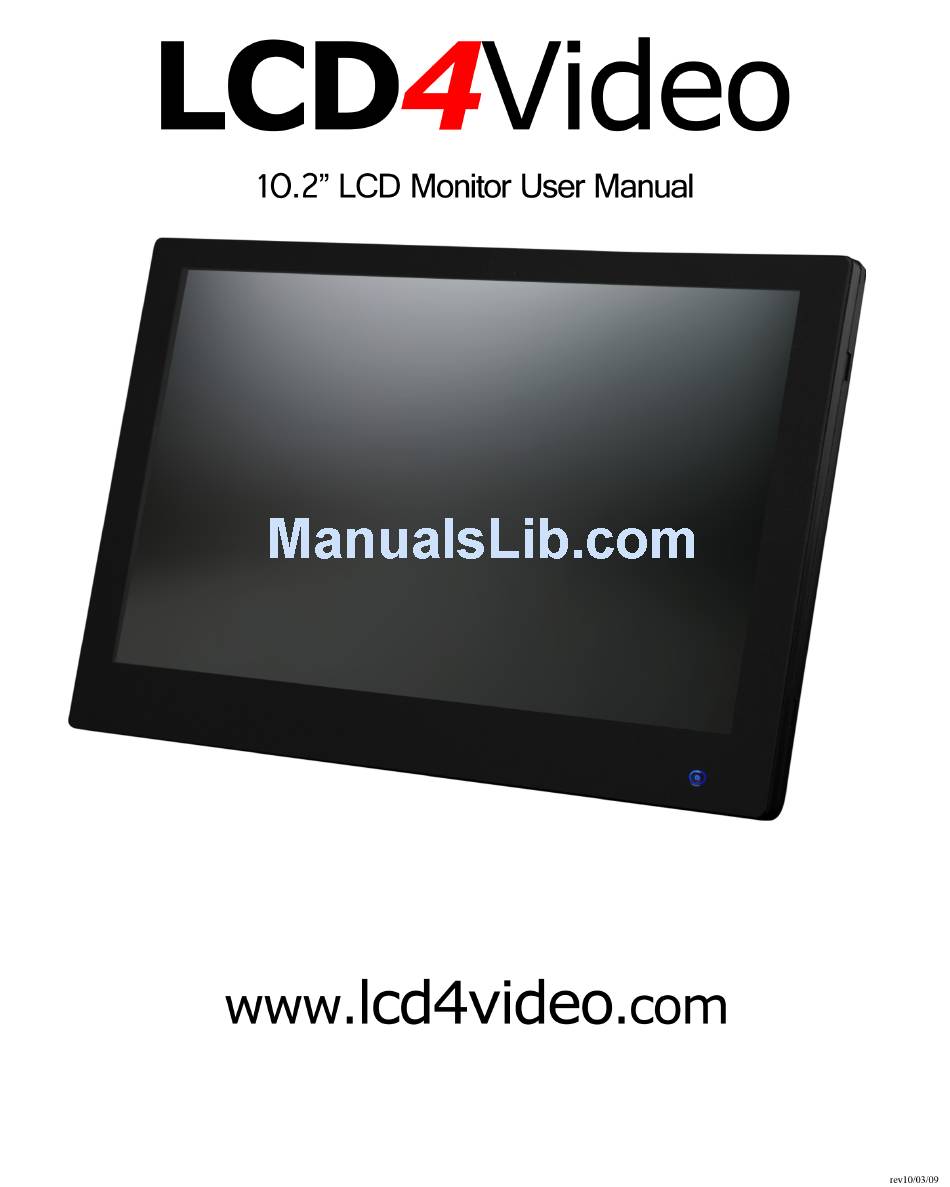

LCD4Video 10.2" LCD Monitor User Manual

10.2" lcd monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for LCD4Video 10.2" LCD Monitor

Summary of Contents for LCD4Video 10.2" LCD Monitor

  • Page 2 • you spill something into the case • your display is exposed to rain or any other excess moisture • your display has been dropped or the case has been otherwise damaged • you suspect that your display needs service or repair www.lcd4video.com...
  • Page 3 Page 12 - Mounting the LCD with Optional Shoe Mount Page 13 - LCD Monitors On-Screen Display Settings Page 13 - LCD Monitors Image Flip Functions Page 14 – VGA Cable Page 15 – VGA Cable Connections Page 16 - LCD4Video Warranty, Contact & Support www.lcd4video.com...
  • Page 4 1) Menu/Volume Adjustment Down (-) 2) On-Screen Display Menu Button 3) Menu/Volume Adjustment Up (+) 4) Video Input Select v1, v2, VGA 5) Power Button (on/off) 6) VGA Cable Input 7) Monitor AV Cable Input (Power, Audio & Video) www.lcd4video.com...

  • Page 5: Remote Control

    P a g e Remote Control www.lcd4video.com...

  • Page 6: Specifications

    Built-in Speaker with RCA Audio Input Mount Type Bottom & Rear Mount Bracket Image Flip Function Vertical, Horizontal (Mirror) & Vertical/Horizontal Flip Backlight Single LED Brightness 250-300cd/mSQ Weight 1.45 lb Dimensions 9.625" (W) x 6.5" (H) x .875" (D) www.lcd4video.com...

  • Page 7: Standard Accessories

    12 volt AC adapter allows you to power the monitor from any outlet. Desktop/Wall Stand Allows you to mount the monitor on a table or wall. VGA Cable with Power Connection Connect your monitor to a computer or other VGA video source. Remote Control Wirelessly controls the monitor’s functions. www.lcd4video.com...

  • Page 8: Optional Accessories

    4-pin 12 volt battery pack or battery belt. Shoe Mount Allows you to mount the monitor on the shoe on top of your camera. Sunhood Provides shade in direct sunlight for enhanced viewing. Attaches to the monitor with included Velcro straps and strips. www.lcd4video.com...

  • Page 9: Compatible Batteries

    The AA Battery Adapter works with Ten (10) Standard or Rechargeable AA Batteries. (Run time tested at up to 1.5 hrs. - Rechargeable Lithium AA Batteries will run longer) *Run time may vary depending on amps and specific battery used. www.lcd4video.com...
  • Page 10  Connect the AV Cable to the LCD Monitor • Black Plug - 12v Power Input • Yellow RCA – Video Input 1 • Yellow BNC – Video Input 2 • White/Red RCA – Audio Input • Thin Black - Connect to LCD Monitor www.lcd4video.com...
  • Page 11 BNC and RCA video jacks. If you're plugged into one of these two jacks and you're not getting a signal, it's probably because this switch isn't positioned correctly. It's very tiny and kind of easy to miss! See photo above. www.lcd4video.com...
  • Page 12 P a g e | 11 LCD Monitor Setup – LCD Monitor to Power  Connect the AC Adapter to the small black end of the AV Cable.  Plug the AC Adapter into a power outlet. www.lcd4video.com...

  • Page 13: Mounting The Lcd With Optional Shoe Mount

     Slide the shoe mount with the LCD monitor attached onto the cameras hot shoe slot, and then tighten the round nut on the bottom of the shoe mount to secure the monitor to the LCD. You can adjust the wing nut to swivel the angle of the LCD on the camera. www.lcd4video.com...

  • Page 14: Lcd Monitors Image Flip Functions

    DOF (depth-of-field) adapters.  To flip the image, press the ‘Menu’ button on the remote, Repeat until you get to ‘TCON’ LD RD RU LU.  Press Up or Down, (Left or Right on remote) to cycle through the various modes. www.lcd4video.com...

  • Page 15: Vga Cable

    P a g e | 14 VGA Cable The special VGA Cable that is included also has a power connection which allows you to use the single VGA cable for both power and video without using the AV Cable. www.lcd4video.com...
  • Page 16  Make sure to connect the end labeled ‘MONITOR’ to the LCD Monitor.  Connect the other end to the VGA plug on your computer.  Plug the AC Adapter into the small black plug on the ‘COMPUTER’ end of the VGA Cable. www.lcd4video.com...

  • Page 17: Warranty

    Damage caused during installation is not considered as a product defect and will not be covered by the warranty. LCD4Video Contact & Support It is our ultimate goal to provide all of our customers with the best customer service and support. We want to make sure that all of our customers are 100% satisfied.
