Related Manuals for GoldenEar Technology Invisa HTR 7000
Summary of Contents for GoldenEar Technology Invisa HTR 7000

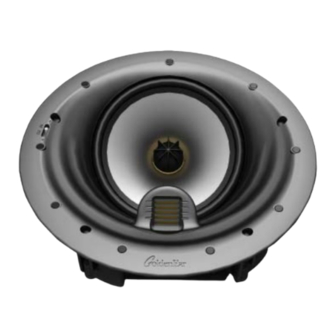

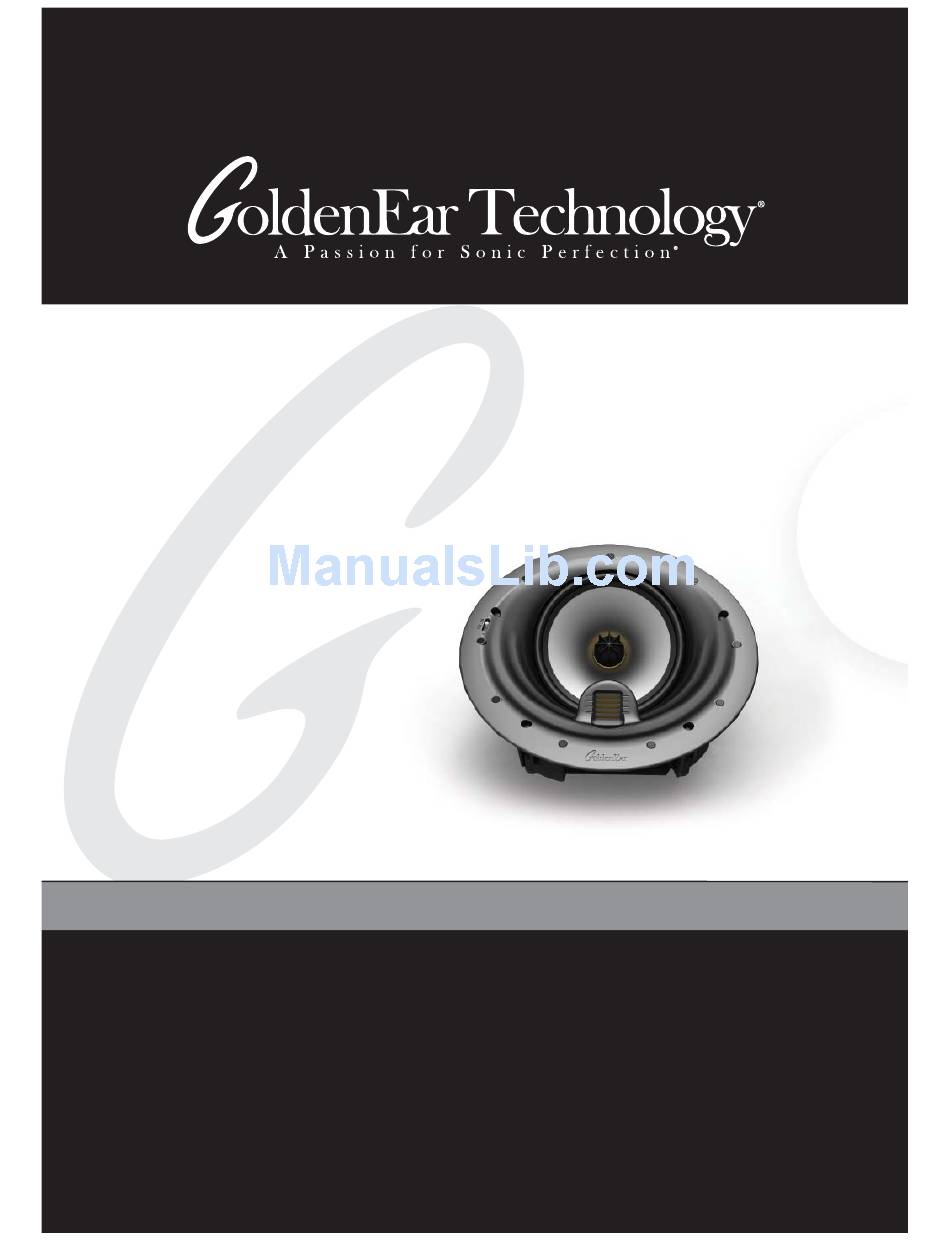

- Page 1 Invisa HTR 7000 ® Invisa In-Ceiling Home Theater Reference Loudspeakers Owner’s Manual...
- Page 2 HTR 7000 speakers-based music and home theater system. ® Please visit our website at www.GoldenEar.com for more information on the technology behind your new speaker system. If you have additional questions, contact your Authorized GoldenEar Technology ® Dealer or visit the Q&A page in the Tech Support section of our website.
-
Page 3: Volume Setting
But a 100 Watt/channel amplifi er will have very low distortion below 100 Watts. Therefore, when the speaker requires 50 Watts, this more powerful amplifi er will deliver clean power and speaker damage is less likely to occur. (See your GoldenEar Technology dealer for amplifi er recommendations.) Volume Setting Do not be fooled by the Volume setting of your receiver/preamplifi... -
Page 4: Room Acoustics
BALANCED BASS: Placing speakers too close to side/back walls will over-emphasize bass and reduce overall clarity. If possible, position speakers at least 12" away from the side and back wall. This will ensure better balanced performance and optimal midrange clarity. ► Invisa HTR 7000 Manual GoldenEar Technology... - Page 5 HTR 7000 FocusField In-Ceiling Speakers ® ™ GoldenEar Technology’s HTR 7000 FocusField in-ceiling speakers are designed for optimum performance ™ in rooms with a 7'–10' (2m – 3m) high ceiling, although good performance is certainly possible outside of this range. Their unique design and construction allows them to “focus” the sound toward a specifi c area in much the same way we focus a fl...
- Page 6 ® ™ The Invisa HTR 7000 speakers are also ideal for use as surrounds/rears. For a direct-radiating confi guration, all channels are positioned with the driver array aimed toward the listening area. When used as surround speakers in a 5.1 system, Invisa HTR 7000 speakers may be located to the side or behind the listeners.
-
Page 7: Speaker Break-In
Once the painted grille has dried completely, if necessary you can use a brush or small roller to touch-up the grille’s outer edge — just be careful not to get any additional paint on the grille’s perforated surface. ► Invisa HTR 7000 Manual GoldenEar Technology... -
Page 8: Installation Into Existing Walls Or Ceilings
HVAC pipes and the corresponding risks to your safety and risk of damage to property. If you are not comfortable with the above and/or performing the following installation procedures we strongly suggest having a professional contractor install your speakers (see your GoldenEar Technology Dealer). Tools Required: •... - Page 9 • Push down on the top of the speaker’s push terminal to reveal the wire hole in the post. Insert the wire into the hole and release your pressure on the terminal. ► Invisa HTR 7000 Manual GoldenEar Technology...
- Page 10 Figure 4 Figure 5 Holding the speaker’s front lip with your thumbs and index fi ngers, carefully slip the speaker into the cutout and hold fi rmly in place. (Figure 6). Figure 6 ► Invisa HTR 7000 Manual GoldenEar Technology...
- Page 11 fi lled with heavy furniture and fabrics or you are sitting fairly far from the speakers, making the sound “dull”, select the “+” position to compensate for this type of room acoustics issue. Figure 8 ► Invisa HTR 7000 Manual GoldenEar Technology...
- Page 12 When in doubt, leave them out (fl at); this almost always results in the best possible and most natural sounding system performance. Complete Home Theater Systems We strongly suggest that you use matching GoldenEar Technology Invisa loudspeakers and a ForceField ®...
- Page 13 HTR 7000 speakers, try the suggestions described below. ® If you are still having problems, please consult your GoldenEar Technology Authorized Dealer for assistance. Make sure all your system interconnects, speaker cables and power cords are solidly in place. Check that no foreign objects or liquid has entered the speaker.
- Page 14 Driver Complement: One 7" high-defi nition cast-basket MVPP mid/bass drivers ™ One HVFR High Velocity Folded Ribbon tweeter ™ Rec. Amplication: 10 – 250 Watt/channel Specifi cations are subject to change without notice. ► Invisa HTR 7000 Manual GoldenEar Technology...
- Page 15 ► Invisa HTR 7000 Manual GoldenEar Technology...
-
Page 16: Limited Warranty
Product(s) must be shipped in the original shipping container or its equivalent; in any case the risk of loss or damage in transit is to be borne by you. If, upon examination at the Factory or a GoldenEar Technology Authorized...
