Summary of Contents for GoldenEar Technology supersat series

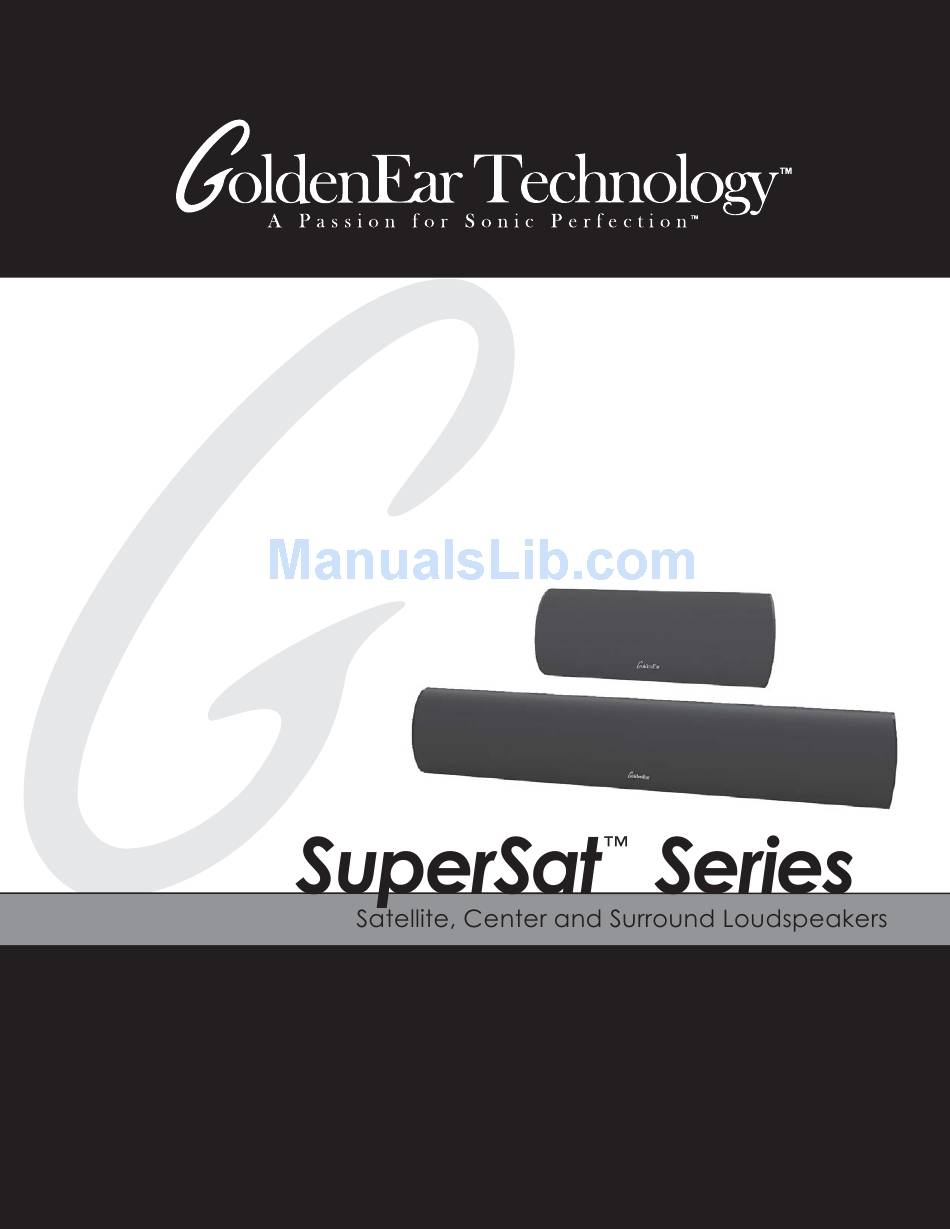

  • Page 1 Owner’s Manual...
  • Page 2 SuperSat speakers. Please visit our website at www.GoldenEar.com for more information on the technology behind your new speaker system. If you have additional questions, contact your Authorized GoldenEar Technology Dealer or visit the ®...

  • Page 3: Volume Setting

    GoldenEar Technology SuperSat speakers are effi cient and can be driven to loud listening levels with moderate amplifi er power. They are also able to handle the output of very powerful amplifi ers. To prevent damage to your speakers, please read all of the following guidelines before hooking them up.

  • Page 4: The Right Amount Of Power

    Each loudspeaker leaves our plant in perfect condition. Any visible or concealed damage most likely occurred in handling after it left our plant and should be reported at once to your GoldenEar Technology Dealer and/or the delivery company that delivered your loudspeaker. Please unpack your system carefully.
  • Page 5 Slide the speaker cable retaining wire clip into the two holes on the base as shown (Figure 2). You may need to remove this clip and re-install when attaching speaker wires. Figure 1 Figure 2 SuperSat Series Manual GoldenEar Technology...
  • Page 6 SuperSat Series Owner’s Manual Attaching Center Channel Feet (SuperSat 3C, 50C & 60C Only) If you are going to set your SuperSat Center Speaker on a table or bookshelf, install the included Adjustable Center Stand Foot as follows: Tools required:...

  • Page 7: Room Acoustics

    Speaker Placement GoldenEar Technology SuperSat speakers are designed to allow fl exible placement while providing a very large window of sound throughout your listening room. Please remember that although the following recommendations are usually valid, all rooms and listening sets-ups are somewhat unique, so do not be afraid to experiment with the speakers.
  • Page 8 SuperSat Series Owner’s Manual Positioning SuperSat as Left/Right Fronts To ensure the best performance possible, observe the following placement guidelines: ACCURATE TIMBRE: For the most accurate and natural timbre, speakers’ high-frequency drivers should be at approximately ear level. BALANCED BASS: Placing speakers in corners will over-emphasize bass and reduce overall clarity. If possible, position speakers as far as possible from either side wall.
  • Page 9 NOTE: The threaded insert on the back panel is a "–20 UNC x 0.5" (16mm) deep thread for use with various after market mounting brackets as well as the optional matching SuperSat 3 and SuperSat 50 fl oor stands and SuperSat 50 table stand. SuperSat Series Manual GoldenEar Technology...

  • Page 10: Speaker Break-In

    SuperSat Series Owner’s Manual Positioning SuperSat as Surrounds When used as surround speakers, SuperSat speakers may be located on the side or behind the listeners. When used on the sides, take care never to locate the speakers forward of the listeners (A). If the speakers are placed along the rear wall as surrounds, it is suggested that they be positioned fairly wide apart if possible, in the corners is also a good location.
  • Page 11 If you are using the SuperSat 3C/50C/60C center channel speaker, hook up the center red(+) terminal of your receiver or amplifi er to the red(+) terminal of your center speaker and the center black(-) terminal of your receiver or amplifi er to the black(-) terminal of your center speaker. SuperSat Series Manual GoldenEar Technology...
  • Page 12 ForceField Subwoofer owner’s manual for detailed connection instructions for setups using this option.) Complete Home Theater Systems We strongly suggest that you use matching GoldenEar Technology SuperSat center channel and rear/surround speakers, and a ForceField subwoofer, to complete your GoldenEar home theater system. SuperSat speakers ™...
  • Page 13 If no sound comes out or the sound is distorted in some way and you are sure the system is set up properly, please bring the speaker to your GoldenEar Technology Authorized Dealer for assistance. But make sure you Call First.
  • Page 14 Technical assistance It is our pleasure to offer assistance if you have any questions regarding your SuperSat speakers or their set-up. Please contact your nearest GoldenEar Technology dealer or contact us directly at 410-998-9134. Recycling and Reuse Guidelines for Europe...
  • Page 15 SuperSat Series Owner’s Manual Specifications SuperSat Series Manual...

  • Page 16: Limited Warranty

    Limited Warranty SuperSat Manual 03242011...
