Fanless Mini PC
TC-800
TC-850
TC-850CF
TC-850CE
RB-851
RB-852
RB-853
RB-854
800MHz Mini PC
800MHz Mini PC, with LPT/COM
800MHz Mini PC, with LPT/COM/CF
800MHz Mini PC, with LPT/COM/WinCE
800MHz Mini PC, with LPT/HDD/CF/miniPCI
800MHz Mini PC, with LPT/CF/2x LAN/miniPCI
800MHz Mini PC, with LPT/HDD/CF/2x LAN
800MHz Mini PC, with LPT/HDD/CF/6x USB
User's Manual
Advertisement
Table of Contents
Related Manuals for XtendLan TC-800
Summary of Contents for XtendLan TC-800

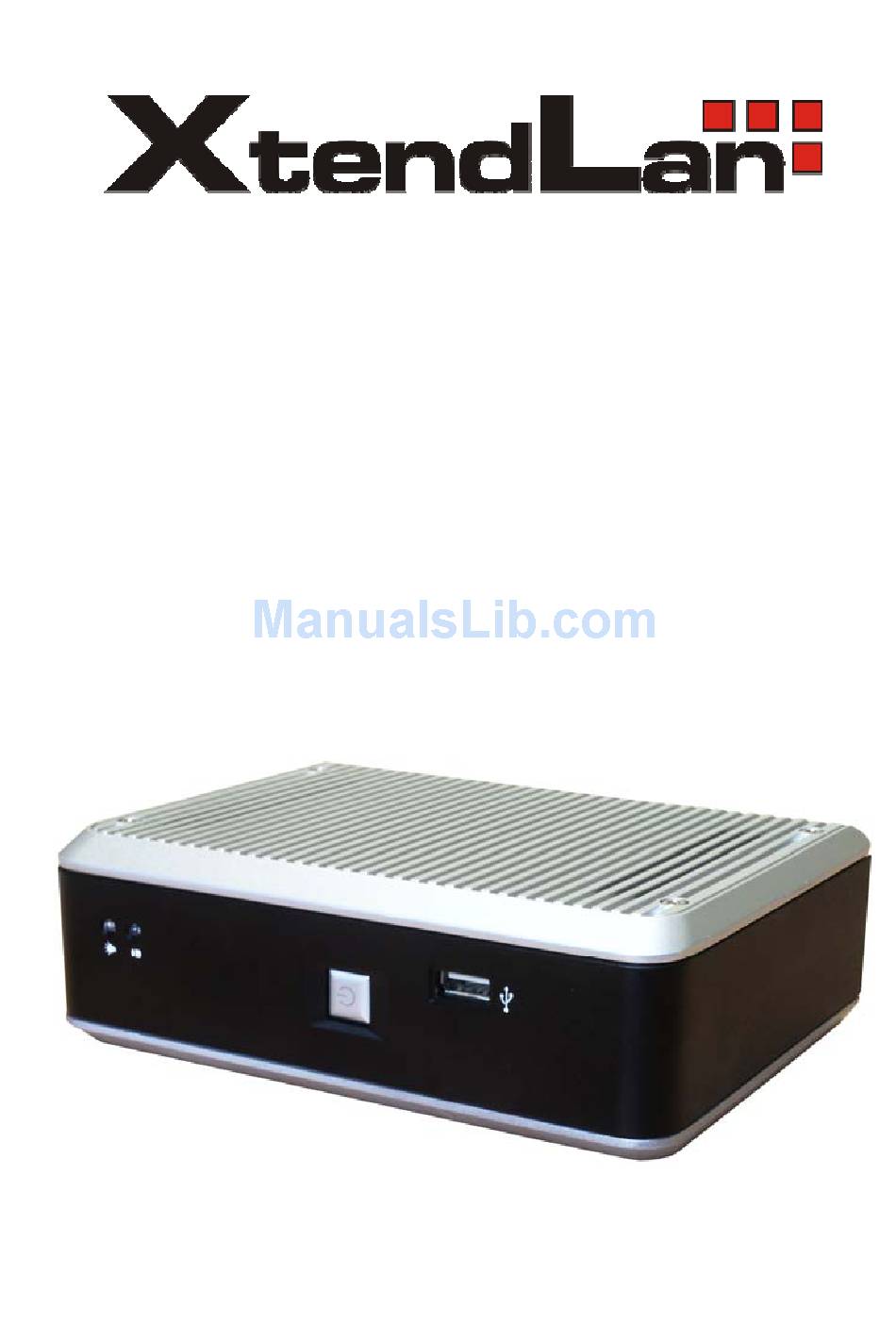

- Page 1 Fanless Mini PC TC-800 800MHz Mini PC TC-850 800MHz Mini PC, with LPT/COM TC-850CF 800MHz Mini PC, with LPT/COM/CF TC-850CE 800MHz Mini PC, with LPT/COM/WinCE RB-851 800MHz Mini PC, with LPT/HDD/CF/miniPCI RB-852 800MHz Mini PC, with LPT/CF/2x LAN/miniPCI RB-853 800MHz Mini PC, with LPT/HDD/CF/2x LAN...
-
Page 2: Safety Information
AFETY NFORMATION WARNING Do not expose your computer to rain or moisture, in order to prevent shock and fire hazard. Never install your computer in wet locations. Do not open the cabinet to avoid electrical shock. Refer to your nearest dealer for qualified personnel servicing. - Page 3 EGULATORY FCC C LASS This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference in which case the user will be required to correct the interference at his own expense.
- Page 4 TC-800 allows you to use your computer with just one finger press at the power button. It is built in an awesome mechanical dimension of 170×124×38mm(or 58mm TC-85x, RB-...
-
Page 5: Specification
DDR266 & Laptop HDD) 0 ~ 60 C (32 – Operating Temperature 0 ~ 90% relative humidity, non-condensing Operating Humidity 170 x 124 x 58 mm (TC-800 170 x 124 x 38 mm) Size (W x H x D) 920 g Weight (3800/3850) -
Page 6: Front Panel
TC-800,TC-85x, RB-85x OVERVIEW Front Panel Power LED The power LED lights up, when system is turn on. HDD LED The HDD LED flashes when the system is working. Please do not turn off the system when HDD start running Power Switch Depress switch to turn on &... -
Page 7: Power Adaptor
See the left diagram for visual connection. Connect the DC power jack of the power adaptor to the DC Input jack of TC-800/850. Turning ON Your Computer Press the power button as indicated on the figure on your left- side, the system will start automatically. - Page 8 ERIPHERALS ONNECTING THE TC-800/850 provides USB port (one each in front & at the back of the cabinet). Front cabinet Turning ON Your Computer Press the power button as indicated on the figure on your left-side, the system will start automatically.
-
Page 9: Keyboard And Mouse
ONNECTING THE EYBOARD AND OUSE Describing Mouse actions Action Description Point Slide and point your mouse to your desired position. Click Press the left button once. Double-click Press the left button twice. Right-click Press the right button once. When selecting (most) programs, this action displays a shortcut menu of the context-sensitive choices. - Page 10 BIOS TC-800,TC-85x, RB-85x ECONFIGURING Take note that AMI BIOS is used in the TC-800/850. To reconfigure the computer, depress or hit the <Del> key to enter your BIOS setup main menu. Select from the menu, the desired setup for change.
- Page 11 PPENDIX NBOARD ONNECTORS UMMARY CPU B UMMARY ABLE FOR OARD Description Type of Connections nbrs. RJ-45 FOXCONN 8-pin IDE Connector Box Header, 22x2-2.0mm 44-pin VGA Connector D-Sub Connector 15-pin USB1 (Front) USB 90 Type1 Connector 8-pin USB (Back) USB Type1 Connector 6-pin J6, J7: PS/2 Keyboard &...
-
Page 12: Rear Connectors
TC-800 ONNECTORS UTLINE FOR Line Out VGA RJ-45 LAN Jack PS/2 Mouse DC Power Jack MIC-IN PS/2 Keyboard Power Switch TC-850/850CF/850CE ONNECTORS UTLINE FOR Power Switch PS/2 Keyboard VGA Line-Out Jack Out PS/2 Mouse RJ-45 LAN Jack MIC-IN DC Power Jack... - Page 13 RB-85x series ONNECTORS UTLINE FOR RB-851 Compact flash slot RB-852 / RB-853 RJ-45 LAN RB-854...
- Page 14 SSIGNMENTS J6:KBD(PS/2Keyboard & Mouse) – 6-pin Mini-Din Connector Pin # Signal Name KBCLK PMCLK KBDAT PMDAT SB5V J7: Mouse (PS/2 Mouse) – 6-pin Mini-Din Connector Pin # Signal Name PMCLK PMDAT SB5V J1: RJ-45 FOXCONN (LAN)– 12-pin RJ45 Connector SignalName SignalName FTXD+ FTXD-...
- Page 15 Power Sw – Push Button Switch Pin # Status J17: DC-IN (DC-IN 5V) – 3-pin MINI-DIN Lock Pin Socket Pin # Signal Name J4: USB1 (USB1x90 )– 4-pin USB Type 1 Connector (Vertical Type) Pin # Signal Name USB0- USB0+ GGND GGND J3: VGA –...
- Page 16 J5:USB (USB2): For connection to external –4-pin USB Type 1 Connector SignalName Pin # USB2- USB2+ GGND GGND USB J11: MIC_IN – 5-pin RCA Phone Jack device SignalName Pin # AUD MIC J13: Line-out – 5-pin Phone Jack SignalName Pin # LOUT L LOUT R J9: COM1 - 9-pin Dsub Connector...
- Page 17 Action status LEDS: POWER ON/OFF & HDD R/W State Color Power Green Flashes...
