Summary of Contents for Ormandy SCP PLUS 3000

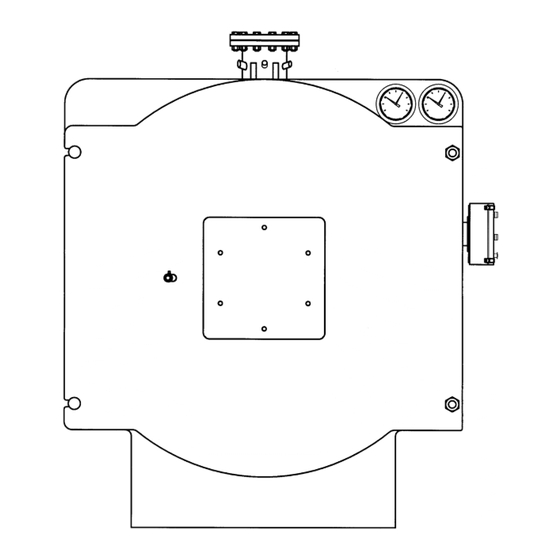

- Page 1 TECHNICAL MANUAL The above picture is only for reference. SCP PLUS THREE PASS WET BACK HOT WATER BOILER...
-
Page 2: Table Of Contents
INDEX GENERAL WARNINGS ........................... 2 TECHNICAL SPECIFICATIONS ......................3 2.1 Dimensions................................3 2.2 Drawing..................................4 ACCESSORIES ............................5 THERMOSTATS ..........................5 MANOMETER ............................5 THERMOMETER ..........................5 INSTALLATION ............................6 BURNER .............................. 6 STARTING ............................... 7 PRELIMINARY CHECKS ........................7 WATER TREATMENT ......................... 7 FILLING THE SYSTEM ........................ -
Page 3: General Warnings
1. GENERAL WARNINGS Each Boiler is provided with a manufacture plate that can be found on the boiler. The plate lists: • Serial number or identification code; • Rated thermal output in kW; • Types of fuels that can be used; •... -
Page 4: Technical Specifications
2. TECNICAL SPECIFICATIONS 2.1 DATA TABLE SCP Plus Model 3000 3500 4000 5000 6000 7000 Output (kW) 3000 3500 4100 5000 6000 7000 Dimensions & weight 2460 2460 2700 2700 2820 2820 2135 2135 2345 2345 2495 2495 3879 4379 4379 4879 5379... -
Page 5: Drawing
Bulb wells Fitting for safety pressure switch (not supplied) Inspection well N11 Fitting for level minimum probe SCP PLUS 3000 - 7000 NOTE: drawing, legend and data refer to standard models. For specific models, please refer to the provided accessory drawing. -
Page 6: Accessories
3. ACCESSORIES The hot water boilers are fitted with a series of accessories that can be subdivided as follows: Safety accessories (safety valves, safety pressure switches, safety thermostat) • Control accessories (thermostat) • Observation accessories (temperature gauges, pressure gauge, flame inspection) •... -
Page 7: Installation
INSTALLATION Before connecting the boiler, perform the following operations: • Thoroughly clean all the system pipes in order to remove any foreign matter that could affect correct operation of the boiler; Check that the flue has an adequate draught, that there is no narrowing of passages and that it is free •... -
Page 8: Starting
STARTING WARNING: Before start up insert wholly turbolaters into the smoke tubes ensuring that they have been pushed inside for at least 100 mm. PRELIMINARY CHECKS Before starting the boiler, check that: The rating plate specifications and power supply network (electricity, water, gas or fuel oil) specifications correspond;... -
Page 9: Operation
OPERATION OPERATION CHECKS The heating system must be correctly operated to ensure perfect combustion as far as possible with reduced emissions of carbon monoxide, unburnt hydrocarbons and soot into the atmosphere, and to avoid hazards and damage to people and goods. Guide to combustion values: FUELS Flue gases temperature % CO... -
Page 10: Cleaning And Servicing
Pressurisation values should be included in the range given in the table of technical specifications. WARNING The differential temperature between boiler flow and return must not exceed 25°C in order to prevent thermal shock to the boiler structures. The temperature of the return water must be above 55°C in order to protect the boiler from corrosion due to condensation of the flue gases on cold surfaces;... - Page 12 Ormandy Hartley and Sugden Atlas Works, Gibbet Street, Halifax. HX1 4DB Tel. 01422 355651 Fax. 01422 359636 The data reported are indicative only and are not binding. Our company reserves the right to introduce alterations at any time, as it...
