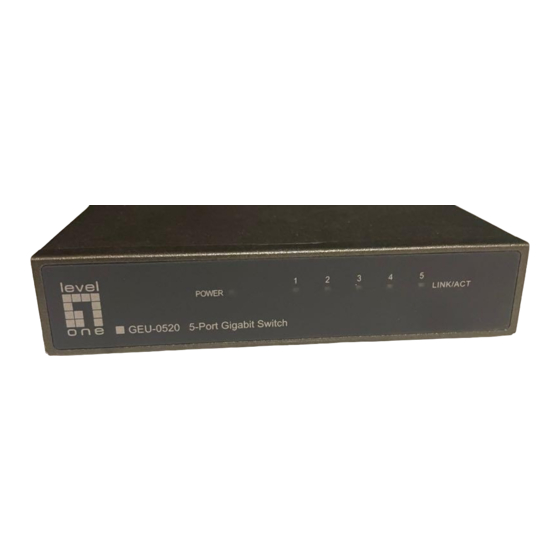

- Page 1 GEU-0520 5-Port Gigabit Switch GEU-0820 8-Port Gigabit Switch QIG Manual V1.0-100900...
-
Page 2: Fcc Certifications
FCC Certifications This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 3 Moreover, Pre-IEEE 802.3az Energy Efficient Ethernet is supported to save power consumption GEU-0520 and GEU-0820 are plug and play without any software to configure and also fully compliant with all kinds of network protocols.
- Page 4 Unpacking Open the shipping carton and carefully unpack its contents. The carton should contain the following items: One GEU-0520, or GEU-0820 Gigabit Ethernet Switch Four rubber feet with adhesive backing Wall-mount Kit One external power adapter ...
- Page 5 Wall Mounting Before you begin, you need 2 wallboard screws to mount the unmanaged switch. To mount the unmanaged switch to the wall: 1. Determine where you want to mount the unmanaged switch. Verify that the surface is smooth, flat, dry, and sturdy.
- Page 6 2. Connect the Ethernet cable to the Ethernet port of a PC, printer, network storage, or other network device. NOTE We recommend using Cat5e or better cable. Also, do not exceed the maximum cabling distance of 328 feet (100 meters) per segment. For cable selection, refer to the following table：...
- Page 7 This model support magnet mounting Introduction to magnetic mounting parts There are two permanent magnets in the bottom of switch, as shown in below figures. GEU-0520 GEU-0820 Installation procedure Attach the magnet-mounted device to the specified location. Take care not to get your fingers stuck between...
- Page 8 CAUTION Select the installation location carefully. In the case of poor surface, magnet mounting may not be reliable. Put the device at a stable place free from vibrations or shocks. Otherwise, personal injuries or equipment damage may occur. ...
-
Page 9: Key Features
Power failure If a power failure occurs, unplug the switch. When power is resumed, plug the switch back in. Key Features Complies with 10BASE-T specifications of the IEEE802.3 standard Complies with 100BASE-TX specifications of the IEEE802.3u standard Complies with 1000BASE-T specifications of the IEEE802.3ab standard ... -
Page 10: Leds Definition
LEDs Definition The switch contains one power LED for the device, Link/Act LED for each port that shows the activities and information of the ports. Please refer to the following table for LEDs definition: GEU-0520 GEU-0820 Status Operation Steady Green... -
Page 11: Product Specifications
Storage: -10°C ~ 70°C (14°F ~158°F)(Metal) Operating: 10% ~ 90% RH, non-condensing Humidity Storage: 5%~90% RH, non-condensing System: Power LED Indications Ports: Link/Act Power Supply External power adapter 5V/1A GEU-0520: 121*75*26mm Dimensions GEU-0820: 154.5*85*26mm Emission FCC, CE, VCCI Class A...
