  • Page 1 GEU-1621 16-Port Gigabit Switch V1. 0_20150424...

  • Page 2: Table Of Contents

    Table Of Contents 1. INTRODUCTION ............3 Product Briefs ....................... 3 Product Features....................3 Hardware Introduction ..................4 2. CONNECTING THE SWITCH ........5 Package Contents ....................5 Before You Connect to the Network ..............6 Mounting ears for rack-mounting ................. 6 Attaching the Rubber Feet ..................

  • Page 3: Introduction

    1. INTRODUCTION 1.1 Product Briefs The switch is a un-management layer 2 10/100Mbps switch; it provide dedicated 10, 100 ,1000Mbps Ethernet bandwidth on each port. The ports will automatically detect the speed, duplex and MDI/MDIX status of the device it is connecting to, and adjust these settings accordingly.

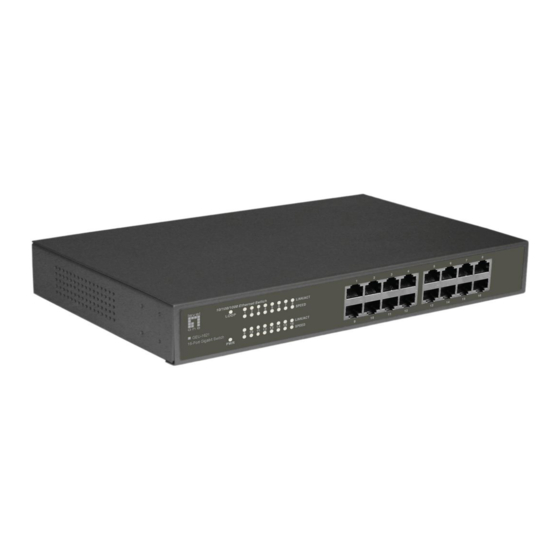

  • Page 4: Hardware Introduction

    and a hundredfold increase over 10-Mbps Ethernet. Since it is compatible with all 10-Mbps and 100-Mbps Ethernet environments, Gigabit Ethernet provides a straightforward upgrade without wasting a company’s existing investment in hardware, software and trained personnel. The increased speed and extra bandwidth offered by Gigabit Ethernet is essential to coping with the network bottlenecks that frequently develop as computers and their bus speeds get faster and more users use applications that generate more traffic.

  • Page 5: Connecting The Switch

    Auto MDI/MDI-X Ports: All ports support automatic MDI/MDI-X crossover detection. The AutoMDI/MDI-X function makes it simple to connect to the switch—just plug either a Crossover or Straight-Through CAT5 cable into any port. DC Power Jack: Power is supplied through an external DC power adapter. Check the technical specification section for information about the DC power input voltage.

  • Page 6: Before You Connect To The Network

    If any item is found missing or damaged, please contact your local reseller for replacement. 2.2 Before You Connect to the Network The site where you install the Switch may greatly affect its performance. Please follow these guidelines for setting up the Switch. ...

  • Page 7: Attaching The Rubber Feet

    Mounting the Switch to a Rack 1. Attach the ears to each side of the Switch, using the screw-holes located on the side of the device. 2. Firmly attach the ears to the rack as shown. Please follow the usual safety precautions for rack-mountable products.

  • Page 8: Connecting The Switch

    Attaching the Rubber Feet 3. Connecting the switch Cable Quality For all connections to the Switch, use these rules to determine the Cable quality.  For connections to 10BASE-T and 100BASE-TX devices, use Category 5 or 5e UTP/STP cable. NOTE : UTP (Unshielded Twisted Pair) Ethernet cabling is adequate for most small office environments.

  • Page 9: Switch To Hub Or Switch

    3.2 Switch to Hub or Switch Connect to another switch or hub 4. Appendix 4.1 Technical Specifications Table 4-1 Ethernet Switch General Features General IEEE 802.3u 100BASE-TX Standards: IEEE 802.3 10BASE-T IEEE 802.3x Flow Control IEEE 802.1p Protocol: CSMA/CD Ethernet: Data Transfer Rate: 10Mbps (Half-duplex)

  • Page 10: Physical And Environmental

    20Mbps (Full-duplex) Fast Ethernet: 100Mbps (Half-duplex) 200Mbps (Full-duplex) Gigabit Ethernet: 2000 Mbps (Full-duplex) Star Topology: Network Cables: Ethernet: 2-pair UTP Cat. 3,4,5, Unshield Twisted Pair (UTP )Cable Fast Ethernet: 2-pair UTP Cat. 5, Unshield Twisted Pair (UTP )Cable Gigabit Ethernet: 4-pair UTP Cat.

  • Page 11: Pin Specification

    MAC Address Learning: Self-learning, auto-aging 4.2 RJ-45 PIN SPECIFICATION The following diagram and tables show the standard RJ-45 receptacle/connector and their pin assignments. RJ-45 Connector pin assignment Contact Media Direct Interface Signal TX_D1+ TX_D1- RX_D2+ BI_D3+ BI_D3- RX_D2- BI_D4+ BI_D4- Standard RJ-45 receptacle/connector...
