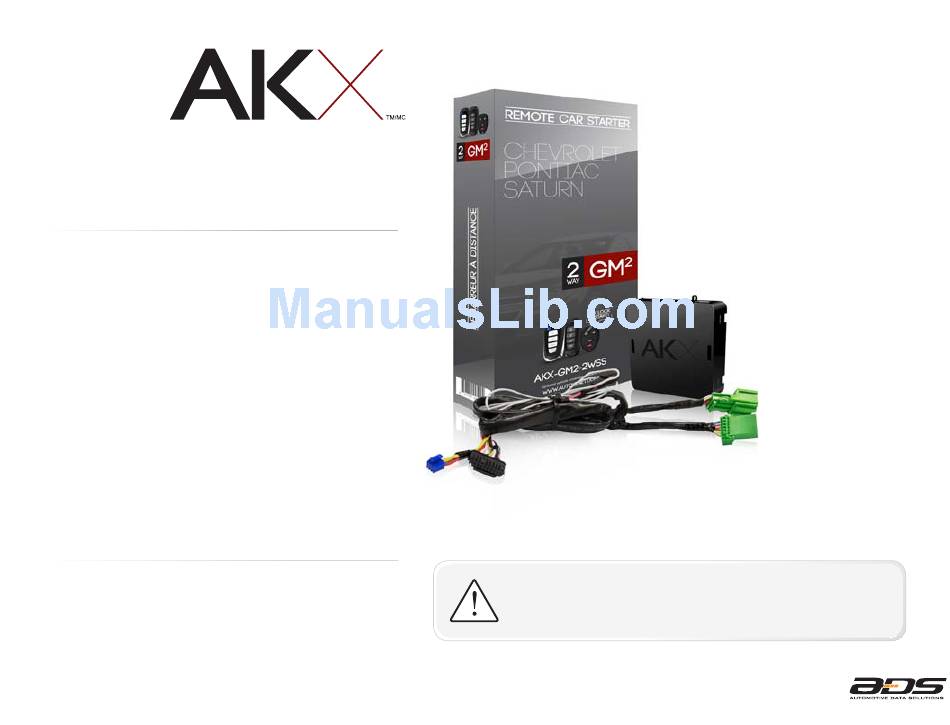

AKX-GM(RS)-GM2-[AKX-GM2]-EN

AKX-GM2/AKX-GM2-4BAM/AKX-GM2-2WSS

DIRECTED SMARTSTART & ADS-HRN(RS)-SM01 (OPTIONAL)

notice

The manufacturer will accept no responsability for any electrical

damage resulting from improper installation of this product, be that either

damage to the vehicle itself or to the installed device. This device must be in-

stalled by a certified technician. Please review the Installation Guide carefully

before beginning any work.

U.S. Patent No. 8,856,780

instaLL guiDe

Document numbeR

19330

Revision Date

20141211

FiRmwaRe

AKX-GM(RS)-GM2-[AKX-GM2]

haRDwaRe

accessoRies

ADS-USB (REQUIRED)

COMPATIBLE RF-KIT (OPTIONAL)

beFoRe instaLLation

1- Connect module to computer

2- Login to Weblink account

3- Flash firmware to module (module is not preloaded with firmware)

4- Use accessories accordingly (accessories are sold separately)

www.autokinetix.com

Need help?

Do you have a question about the AKX-GM-GM2-EN and is the answer not in the manual?

Questions and answers

Summary of Contents for AKX AKX-GM-GM2-EN

Page 1 AKX-GM(RS)-GM2-[AKX-GM2]-EN Document numbeR 19330 Revision Date 20141211 FiRmwaRe AKX-GM(RS)-GM2-[AKX-GM2] haRDwaRe AKX-GM2/AKX-GM2-4BAM/AKX-GM2-2WSS accessoRies ADS-USB (REQUIRED) COMPATIBLE RF-KIT (OPTIONAL) DIRECTED SMARTSTART & ADS-HRN(RS)-SM01 (OPTIONAL) notice beFoRe instaLLation The manufacturer will accept no responsability for any electrical damage resulting from improper installation of this product, be that either 1- Connect module to computer damage to the vehicle itself or to the installed device.
Page 2 *Doorlocks and trunk release features on the module will not operate on vehicles that are not equipped with OEM keyless entry. **If puddle light function is active in vehicle settings. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 3 BLACK T-HARNESS 3 BLACK WHITE WARNING STICKER 4 PIN CONNECTOR WEBLINK CABLE (required accessory sold separately) WEBLINK CABLE MODULE COMPUTER WEBLINK PORT USB PORT 4 PIN BLACK CABLE U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 4 (NC) BLACK BLUE MODULE BLACK RF PORT BLUE CABLE RF DECODER BLACK CABLE ANTENNA TELEMATIC KIT (accessories sold separately) ADS-HRN(RS)-SM01 DIRECTED SMARTSTART (NC) MODULE TELEMATIC PORT (NC) (NC) U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 5 (w/o PK3) Horn White 72 pin 14 Tan Parking Light White 72 pin 05 Brown/White Trunk White 72 pin 10 Tan Driver Door Pin Gray 72 pin 22 Gray/Black U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 6 1 2 3 4 5 6 8 9 10 11 12 13 14 15 16 17 18 WITHOUT OEM HOOD SWITCH: INSTALL AND CONNECT TO AFTERMARKET HOOD SWITCH AFTERMARKET HOOD SWITCH (-) U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 7 (w/o PK3) Horn White 72 pin 14 Tan Parking Light White 72 pin 05 Brown/White Trunk Gray 72 pin 69 White/Black Driver Door Pin Gray 72 pin 22 Gray/Black U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 8 8 9 10 11 12 13 14 15 16 17 18 DRIVER DOOR PIN (-) - 22 WITHOUT OEM HOOD SWITCH: INSTALL AND CONNECT TO AFTERMARKET HOOD SWITCH AFTERMARKET HOOD SWITCH (-) U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 9 (w/o PK3) Horn White 72 pin 14 Tan Parking Light White 72 pin Brown/White Trunk Gray 72 pin 71 Brown/White Driver Door Pin Gray 72 pin 51 Gray/Black U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 DRIVER DOOR PIN (-) - 51 BRAKE (+) - 24 WITHOUT OEM HOOD SWITCH: INSTALL AND CONNECT TO AFTERMARKET HOOD SWITCH AFTERMARKET HOOD SWITCH (-) U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 11 (w/o PK3) Horn White 72 pin 14 Tan Parking Light White 72 pin 05 Brown/White Trunk Gray 72 pin 10 Tan Driver Door Pin Gray 72 pin 22 Gray/Black U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 12 8 9 10 11 12 13 14 15 16 17 18 BRAKE (+) - 31 WITHOUT OEM HOOD SWITCH: INSTALL AND CONNECT TO AFTERMARKET HOOD SWITCH AFTERMARKET HOOD SWITCH (-) U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 13 14 Tan STD key AT (with PK3) Parking Light White 72 pin 05 Brown/White Trunk Gray 72 pin 71 Brown/White Driver Door Pin Gray 72 pin 51 Gray/Black U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 14 DRIVER DOOR PIN (-) - 51 2004 TO 2006 MODELS BRAKE (+) - 24 WITHOUT OEM HOOD SWITCH: ONLY INSTALL AND CONNECT TO AFTERMARKET HOOD SWITCH AFTERMARKET HOOD SWITCH (-) U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 15 72 pin 14 Tan AT (with PK3) Parking Light White 72 pin 05 Brown/White Trunk White 72 pin 10 Tan Driver Door Pin Gray 72 pin 22 Gray/Black U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 16 8 9 10 11 12 13 14 15 16 17 18 DRIVER DOOR PIN (-) - 22 WITHOUT OEM HOOD SWITCH: INSTALL AND CONNECT TO AFTERMARKET HOOD SWITCH AFTERMARKET HOOD SWITCH (-) U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 17 White 72 pin 14 Tan (with PK3) Parking Light White 72 pin 05 Brown/White Trunk Gray 72 pin 69 White/Black Driver Door Pin Gray 72 pin 22 Gray/Black U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 18 8 9 10 11 12 13 14 15 16 17 18 DRIVER DOOR PIN (-) - 22 WITHOUT OEM HOOD SWITCH: INSTALL AND CONNECT TO AFTERMARKET HOOD SWITCH AFTERMARKET HOOD SWITCH (-) U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 19 72 pin 14 Tan AT (with PK3) Parking Light White 72 pin 05 Brown/White Trunk White 72 pin 10 Tan Driver Door Pin Gray 72 pin 22 Gray/Black U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 20 8 9 10 11 12 13 14 15 16 17 18 DRIVER DOOR PIN (-) - 22 WITHOUT OEM HOOD SWITCH: INSTALL AND CONNECT TO AFTERMARKET HOOD SWITCH AFTERMARKET HOOD SWITCH (-) U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 21 Turn key to ACC position. Wait 3 seconds. Module Programming Procedure completed. START Turn key to ON position. Wait 3 seconds. START Turn key to START position and hold for 3 seconds. START U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 22 ENGINE START STOP Wait, LED 1 will turn solid RED for 2 seconds. Set ignition to OFF position. ON START ENGINE START STOP Valet Mode Programming Procedure completed. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 23 Set ignition to OFF position. seconds from previous step. ON START ENGINE START STOP Press once [1x] on LOCK button of aftermarket Aftermarket Remote Programming Procedure remote. completed. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 24 Navigation and redo the Module Navigation vehicle battery. indicates. LED 1 will ﬂ ash GREEN an equal Procedure. amount of times continuously. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 25 02 sec 05 SEC 08 SEC 10 SEC WAIT TO START DELAY 15 SEC 20 SEC 25 SEC 30 SEC *Vehicle will shutdown when a door is opened. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 26 LOCK + UNLOCK + START CONFIGURATION DOUBLE LOCK + START 30 msec HORN CHIRPS WIDTH 15 mSec 60 mSec 02-07 Technical Support only *Vehicle will shutdown when a door is opened. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 27 Check engine warning light is ON. [Y] number times to indicate an error code. See table. Low fuel warning light is ON. CAN communication failure during RS sequence. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 28 False ground when running status from remote starter. WITH IGNITION OFF Solid GREEN then OFF Reset in progress. Module at rest and ready for a remote start sequence. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 29 BLACK 20-PIN connector. DTC or a CHECK ENGINE error message. Wait, LED 1 will ﬂash RED. RELEASE programming button. LED 1 will turn RED for 2 seconds. Module RESET completed. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
Page 30 ¨ NO: Verify the remote programming, the RF connections and check the remote start error ¨ codes. Repeat the test and call technical support, if the problem persists. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2014 AKX-GM(RS)-GM2-[AKX-GM2]-EN www.autokinetix.com...
