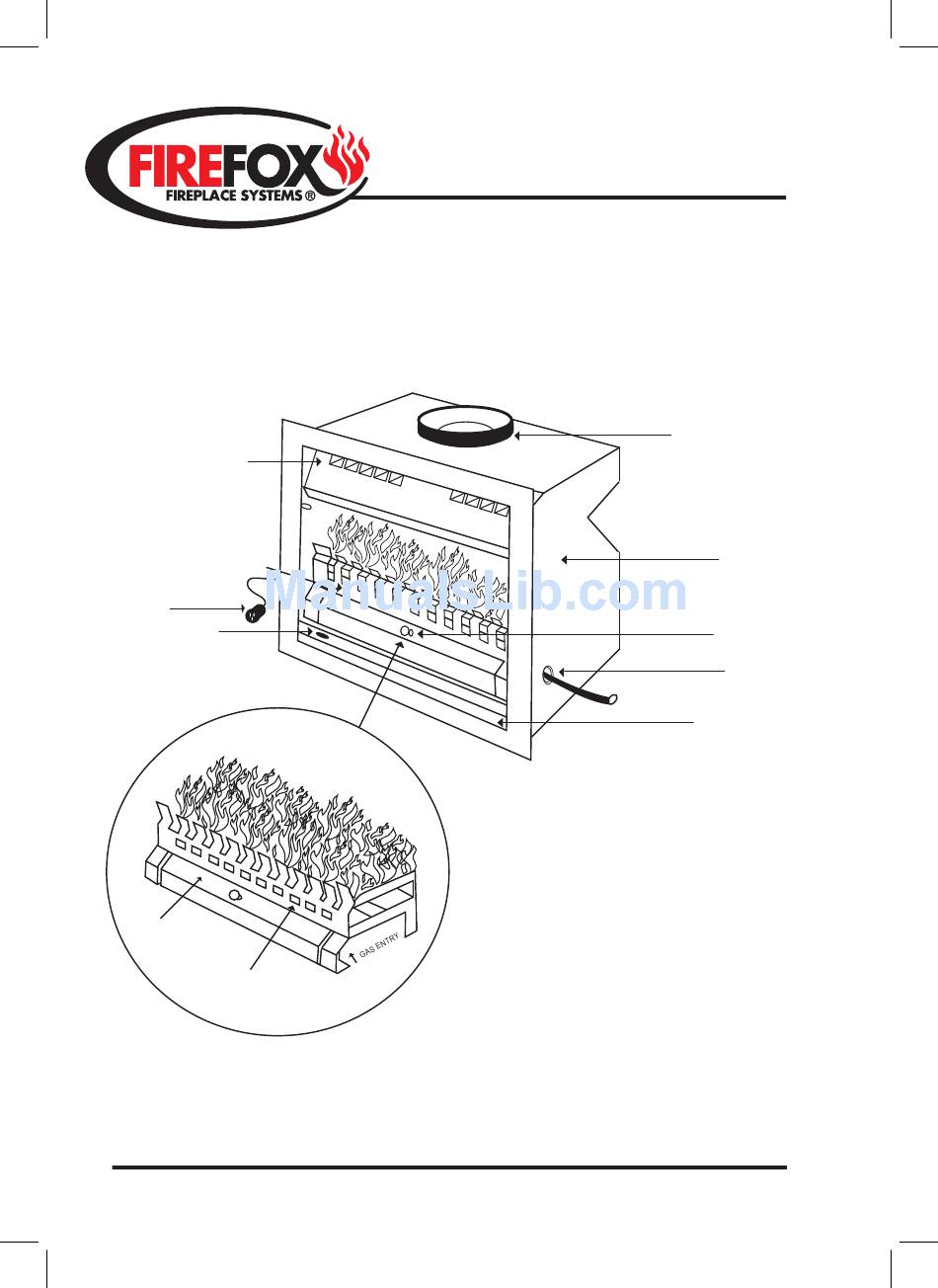

HOT AIR OUTLETS
GAS
FIREGRATE 'GFG'
ELECTRIC
CORD
FAN SWITCH
CONTROL
COVER PANEL
DECORATIVE FRONT IRON
For the appropriate Gas Firegrate 'GFG'
to be used in conjunction with the Gas
Firebox (OGF). See specification pages
on the back of booklet.
FIREFOX INDUSTRIES PTY LTD
Factory 4, 15 Stud Road Bayswater, Victoria 3153 AUSTRALIA Ph: (03) 9720 9055 Fax: (03) 9720 9255
Spec 20.1.11
INSTALLATION & OPERATING INSTRUCTIONS
ACN 074 490 654
OGF - ME Series
OPEN GAS FIREBOX
MODELS: OGF - 2.7/ME
OGF - 3.0/ME
OGF - 3.5/ME
FLUE SPIGOT
This appliance must be installed by
authorized personnel in accordance with
manufacturers instructions, gas fitting
regulations, AGA 601 code for installation
of gas burning appliances, electrical wiring
regulations and any other statutory
requirement. The guidelines here-in
have been tested and approved to
AS 4558/AG 108. AGA Approval No. 6386.
FIREFOX "OGF-ME"
FIREBOX
CONTROL COVER
PANEL
GAS INLET
COLD AIR INTAKE
FC
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Firefox OGF - 2.7/ME
Summary of Contents for Firefox OGF - 2.7/ME
- Page 1 OGF - ME Series OPEN GAS FIREBOX INSTALLATION & OPERATING INSTRUCTIONS MODELS: OGF - 2.7/ME OGF - 3.0/ME OGF - 3.5/ME FLUE SPIGOT HOT AIR OUTLETS FIREFOX “OGF-ME” FIREGRATE ‘GFG’ FIREBOX ELECTRIC CORD FAN SWITCH CONTROL COVER PANEL GAS INLET...
-
Page 2: Installation Requirements
4. Construct a non-combustible enclosure as required to suit the selected Firefox OGF-ME series gas firebox. The enclosure must completely surround the base, sides and back of the unit and rise 300mm above the top of the unit. - Page 3 PLASTER FLUE WHERE BOARD EXPOSED TO COMBUSTIBLE MASONRY MATERIALS AND MAINTAIN 25mm CLEARANCE FIREFOX GAS FIREGRATE ‘GFG’ F.L. NOTE: DO NOT LOCATE ANY 6mm THK NON COMBUSTIBLE ALIGN FACE OF FIREBOX FLUSH EXTRACTION AIR DEVICE WHICH FOREHEARTH & BASE UNDER...
-
Page 4: Right Hand Side
OGF - ME Series OPEN GAS FIREBOX SPECIFICATIONS FLUE FLUE SPIGOT SPIGOT GAS PIPE INLET SWITCH GAS PIPE INLET POWER SUPPLY FRONT RIGHT HAND SIDE FLUE SPIGOT POWER SUPPLY For installation and APPROPRIATE GAS FIREBOX FIREBOX DIMENSIONS FLUE commisioning procedure of FIREGRATE ‘GFG’... - Page 5 A non-combustible floor protector (forehearth) at the base directly in front of the firebox opening must be a minimum of 6mm thick, project a minimum 300mm forward and 200mm on each side of the firebox opening. MANTLEPIECE BREAST FIREFOX OGF UNIT...
-
Page 6: Safety Precautions
If your installer has not shown you how to light the FIREFOX gas firegrate which has been fitted into the unit, refer to the separate booklet entitled INSTALLATION & OPERATING INSTRUCTIONS - GFG SERIES (Gas Firegrates -L/C effect) under Lighting Burner &...
