Link electronics DigiFlex 1152 Specification Sheet

LINK ELECTRONICS, INC.
ANALOG VIDEO DISTRIBUTION AMPLIFIER 1 X 8
DigiFlex 1152
MADE IN THE USA
FEATURES
Eight Outputs
Differential Input
DC or AC Coupled
Op Amp. Technology
±3dB Gain, each set of four
100 MHZ Bandwidth
Diff. Gain and Phase 0.1

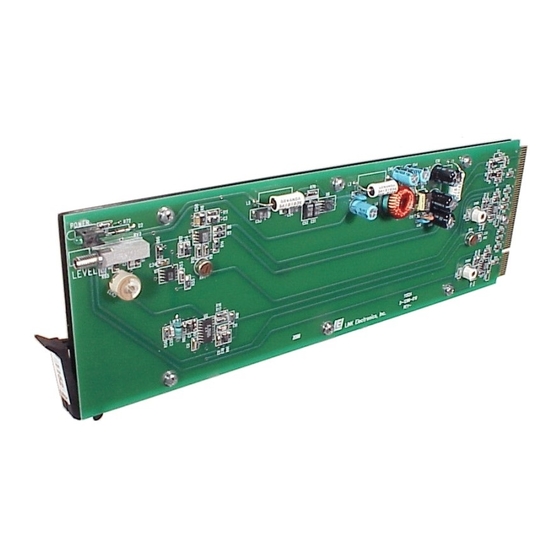

The DigiFlex 1152 Video DA represents the state
of the art in analog video distribution. The 1152
provides high-performance video distribution in the
LINK DigiFlex 1000 Frame. The advantage is
obvious: both analog and digital distribution
amplifiers can operate side-by-side in a single
frame!
Utilizing the latest CMF Op-Amp technology, the
1152 combines wide bandwidth, low noise, and
low power consumption. The video path is truly
transparent, with differential phase and gain errors
of <0.1° and <0.1%, respectively. Video signal-to-
noise ratio exceeds 65dB.
LINK
ELECTRONICS, INC.
1000
1000/2 - Dual Power Supply, Holds 10 Modules
7200
2137 Rust Avenue
Phone 573 334 4433
Mounting Frame Options
- Single Power Supply, Holds 11 Modules
- Mounting Frame, Holds 1 Module
DC-coupled differential input is a standard feature,
providing high common-mode rejection.
outputs are available on the companion rear cell,
model 1011. The front panel gain control adjusts
the level to ±3dB.
The attention to detail in the design of the 1152
extends to the power supply, which features a
simple switching regulator. While slightly more
complex than a linear supply, this offers the
highest possible efficiency. Backed by a ten-year
warranty including parts and labor. The 1152 will
provide years of trouble-free service.
Cape Girardeau, MO 63703-7668
FAX 573 334 9255
1000 SERIES DIGIFLEX
Eight
