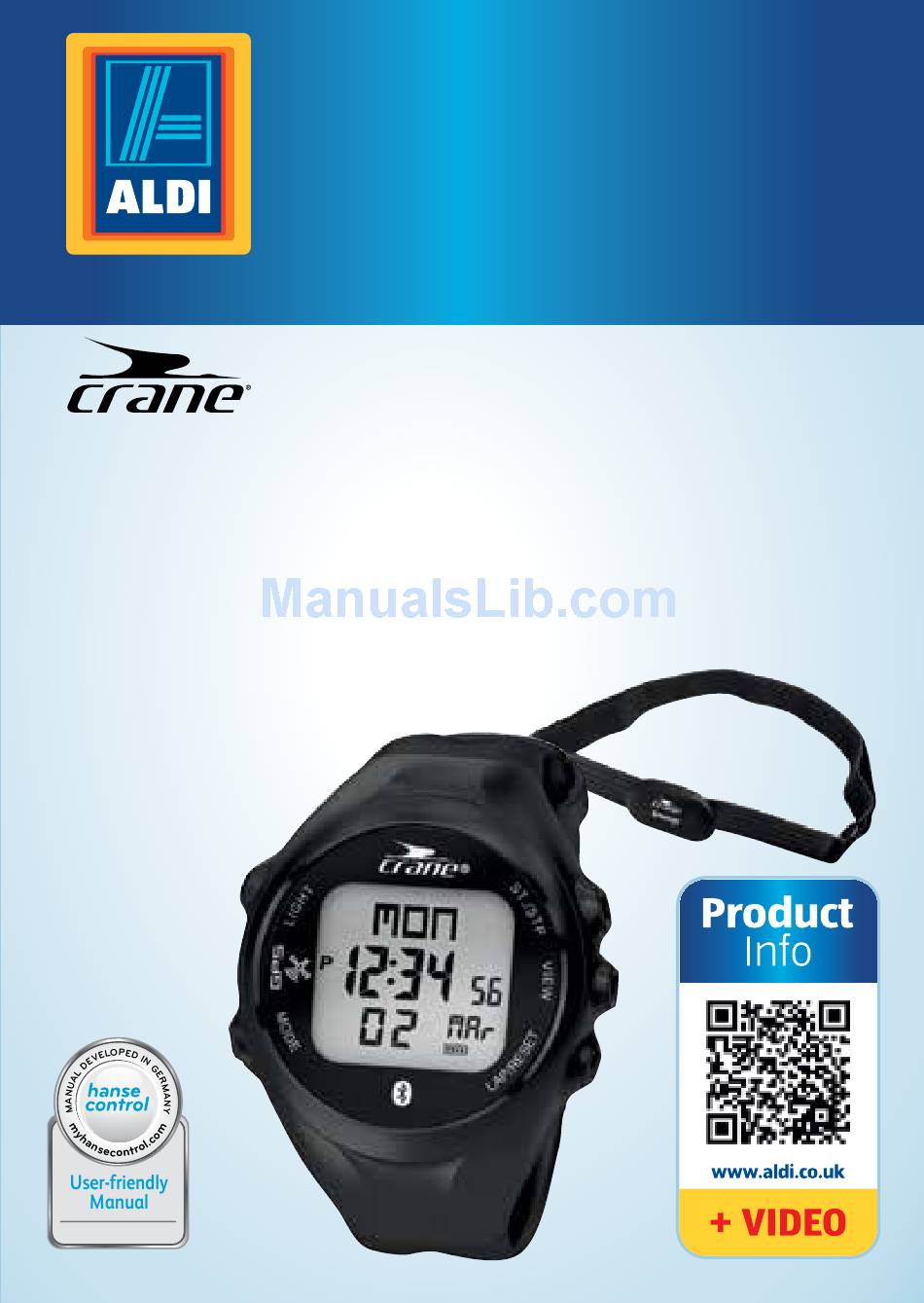

- Page 1 User Manual Spend a little Live a lot. Bluetooth® GPS Watch with Heart Rate Measurement ID: #05007...
- Page 2 QR codes take you where you want to go quickly and easily Whether you require product information, spare parts or accesso- ries, details on warranties or aftersales services, or if you want to watch a product demonstration video, our QR codes will take you there in no time at all.
-
Page 3: Table Of Contents
Charging the battery pack of the GPS watch ....18 Chest strap ................20 Bike holder ................22 Downloading and installing the Crane Connect app ..23 General information about GPS ........24 Operation ................. 27 Turning the GPS watch on and off ........27 Locking keys .................27... -
Page 5: Use
KRIPPL-WATCHES WARENHANDELS GMBH MARIA-THERESIA-STR. 41 06/2015 4600 WELS, AUSTRIA SERIAL NO.: PO7044 MODEL NO.: HO5-GPS-6A TYPE: D92J63 EAN: 20023898 BLUETOOTH ID: D024216 PLU: 92412 3 BAR WATER RESISTANT 1 X 3.7 V 24mA... -
Page 6: Product Contents/Device Parts
Product contents/device parts GPS watch Heart rate icon USB connector cable Centre row Cleaning brush Bottom row Battery charging level Bike holder icon Cable strap for L icon (lap) Fixing plate for Heart rate icon Chest strap P icon (12 h time format) Transmitter unit Workout icon ST./STP key (start/stop) -
Page 7: General Information
General information General information Reading and storing the instruction manual This instruction manual accompanies this Bluetooth® GPS “Watch with Heart Rate Meas- urement”. It contains important information on start-up and handling. For improved readability, the Bluetooth® GPS watch with heart rate measurement will be referred to below merely as the “GPS watch”... - Page 8 General information WARNING! WARNING! This signal word designates a hazard with moderate degree of risk which may lead to death or severe injury if not avoided. CAUTION! CAUTION! This signal word designates a hazard with low risk that, if not avoided, may result in minor or moderate injury. NOTICE! NOTICE! This signal word warns against potential damages to property.
-
Page 9: Checking The Gps Watch And Product Contents
Safety Checking the GPS watch and product contents 1. Carefully take the GPS watch and its accessories out of the packaging. 2. Remove the packaging material and all protective wrapping. 3. Check to make sure that the delivery is complete (see fig. -
Page 10: Safety Notes
Safety The GPS watch can also be used as a workout aid for measuring and displaying your heart rate. The GPS watch is not a medical device. Only use the GPS watch as described in this instruction manual. Any other use is considered improper and may result in damage to property. - Page 11 Safety hospital emergency room. Do not let the child eat or drink and do not induce vomiting Emergengy Telephone Number: 999 and the National Poisons Information Service: 111 (UK)/01 809 2166 (Ireland). WARNING! Risk of accident/injury! Do not use the GPS watch when you are driv- ing a vehicle.
- Page 12 Safety − Persons with pacemakers may only use devices for measuring heart rate in consultation with their physician. − Do not use the chest strap if you are allergic to latex. The chest strap may contain latex constituents and cause irritation and reddening of your skin.
- Page 13 Safety WARNING! Danger for children and persons with impaired physical, sensory or mental capacities (e.g. partially disabled persons, older persons with reduced physical and mental capacities) or lack of experience and knowledge (e.g. older children). − The GPS watch may be used by children ages eight and over as well as persons with impaired physical, sensory or mental capacities or those lacking experience and...
- Page 14 Safety WARNING! Risk of explosion and fire! Lithium battery packs and batteries could explode if handled improperly. − Your GPS watch is operated with a lithium polymer battery pack, which you cannot replace. − You may not heat, open or short circuit battery packs and batteries or dispose of them in fire.
- Page 15 Safety − Do not attempt to charge the battery or reactivate it with other means. NOTICE! Risk of damage! Improper handling of the GPS watch may damage the GPS watch. − Do not place any objects on the GPS watch and do not apply pressure to the display panel.
-
Page 16: Water-Resistance
Safety charged battery pack several times may overcharge it and damage the cells. − Do not leave the battery pack connected to the charger for several days. − Never open the housing of the GPS watch or chest strap, it does not contain any parts requiring maintenance (only the battery must be changed;... - Page 17 Safety Water Rain, Washing Shower- Bathing, Water resistant splashes hands swim- sports up to ming 3 bar 1) The watch withstands a pressure of 3 bar for a limited amount of time. NOTICE! Risk of damage! − Do not immerse the GPS watch or the transmitter in water or other liquids.
-
Page 18: Start-Up
Start-up − Peak pressures may occur when swim- ming or when exposed to a water jet (e.g. when showering or washing your hands). During such activities, affected areas may be subjected to a significantly greater pressure than expected for the immersion depth. - Page 19 Start-up 1. If necessary and to avoid corrosion, dry the contact points of the GPS watch thoroughly before starting the charge process. 2. Secure the clip on the USB cable on the GPS (see fig. D). watch NOTICE! Risk of damage! Incorrectly connecting the cable may cause the watch or cable to heat up.
-
Page 20: Chest Strap
Start-up Battery pack charging level One battery pack charge is sufficient for max. 16 hours of operation in workout mode with GPS and approx. one year in watch mode. The battery pack charging level is indicated with four bars in the icon on the display panel −... - Page 21 Start-up To put the chest strap on: 1. To ensure proper contact with the skin, wet the gummed surface of the chest strap with a small amount of warm water or apply a small amount of ECG gel (available in special medical stores) (see fig.
-
Page 22: Bike Holder
Start-up Bike holder The GPS watch can be worn like a wristwatch or be mounted on the handlebar of your bike with the enclosed holder: 1. Mount the bike holder on the handlebar of your bike. 2. Use the enclosed insertion plate if the bike holder is too loose. -
Page 23: Downloading And Installing The Crane Connect App
Downloading and installing the Crane Connect app You can use the GPS watch with your smartphone (Android or iOS). For this, you will need the free Crane Connect App: The app works with iPhone 4s and higher, iPads from the 3rd generation and higher, Bluetooth® Smart Ready smartphones and tablets with Android 4.3 as well as... -
Page 24: General Information About Gps
Start-up General information about GPS The global positioning system (GPS) uses a network of US satellites to measure distance, speed and altitude. The United States of America operates this network of satellites and is also responsible for its accuracy and maintenance. - Page 25 Start-up Accuracy of GPS The GPS watch is accurate to 3 metres CEP (50 %) outdoors. The specification of accuracy refers to so-called 50 % CEP (circular error probability). This means that with excellent satellite reception, 50 % of all measurements are located within a circle with the specified radius of 3 m.
- Page 26 Start-up Finding satellites In ideal conditions during a cold start, finding satellites may take up to a few minutes or only a few seconds with a warm start. A cold start is at hand when you use the GPS watch for the first time, haven’t used it for a prolonged period or have covered a considerable distance since the last time your position was determined (e.g.
-
Page 27: Operation
Operation Operation Turning the GPS watch on and off The watch is shipped in a deactivated state. The GPS watch will turn on when the battery pack is being charged. Activation Press and hold the LAP/RESET key for approx. 5 seconds to activate the GPS watch. The time will appear on the display panel Deactivation To conserve battery power, you can switch the GPS... -
Page 28: Illumination Of The Display Panel
Operation − To unlock them, tap the VIEW and MODE keys again simultaneously. A key icon and the message “OFF” will briefly appear on the display panel. The keys have now been unlocked. Illumination of the display panel − Tap the LIGHT key to illuminate the display panel for approx. -
Page 29: Gps Watch Modes
Operation GPS watch modes The GPS watch has the following main modes, which will be described in greater detail in the following sections. • System setting mode Configure basic settings. • Time mode Displays the current and 2nd time. • Workout mode with GPS Perform sport with automatic measurement of distance and heart frequency. -
Page 30: System Setting Mode
Operation System setting mode In setting mode, you define the basic settings for the GPS watch such as language, time and display panel contrast. To access the setting mode: 1. Access the time mode: To do so, tap the MODE key several times until the word “CLOCK”... - Page 31 PAIR ? APP This function establishes a Bluetooth® connection between the GPS watch and the Crane Connect app on your smartphone (see section “Downloading and installing the Crane Connect app”). 1. Activate Bluetooth® on your smartphone.
- Page 32 Operation 4. Tap the option “Connect” in the “Pairing” field. 5. On the GPS watch, access the menu item “PAIR ? APP”. 6. Tap the ST./STP key The message “PAIRING...” will appear; the connection will be established. − After a short time, the message “DONE!” will appear and the Bluetooth®...
-
Page 33: Time Format
Operation Setting the time (SECOND) If you have deactivated the “GPS Sync” function, manually set the time by following the steps below: The time will appear on the display panel and the word “SECOND” will appear on the top row . - Page 34 Operation nd Time (T This function sets the number of hours the 2nd time should differ from the current time. UNITS This function determines the units of measure in which values will be displayed: • MET – metric in metres (m, km, km/h) and grams (kg).
- Page 35 Operation 3. Set to “ON” to activate the “AUTO LAP” function. When “AUTO LAP” is activated, you can still manually record additional lap times at any time with the LAP/RESET key Automatic indicator change (SCROLL) In workout mode, you can switch the values displayed with the VIEW key The function “SCROLL”...
- Page 36 Operation WEIGHT Set your weight here. KEY TONE You can activate key sounds and acoustic signals when changing activities in interval mode (“ON”) or you can deactivate them (“OFF”). CONTRAST You can set the LCD contrast from 1 (bright) to 16 (dark) to optimise the readability of the display panel for you.
-
Page 37: Time Mode
After your workout, the GPS watch will save all relevant data and you can view this data on your GPS watch or transfer it to the Crane Connect app on your smart- phone/tablet for further analysis. If the Internet connection... - Page 38 Operation To access the workout mode: − If applicable, tap the MODE key several times, until the name of one of the preprogrammed sports mentioned above appears on the top row The GPS watch will look for the GPS signal and the GPS icon will flash.
- Page 39 Operation The following table will show you the preprogrammed indicators: Sport Indicator 1st page Indicator 2nd page RUNNING duration, lap time, distance, heart rate, pace calories CYCLING speed, average speed, distance, heart rate, duration calories HIKING height, time, distance, heart rate, duration calories USER 1...
- Page 40 Operation The following values can be shown in the centre line: • Distance (0-99.99) • Duration (format up to 60 minutes = mm:ss.th, 1 hour and over = hh:mm:ss) • Current heart rate • Current pace (“CP”) • Current speed (“km/h”/“MPH”/“kn”) The following values can be displayed in the top and bottom row: •...
- Page 41 GPS watch. You can view them in the history lat- er (see section “History mode”) or transfer them to the Crane Connect app on your smartphone/tablet (see section “Data transfer”). AFTER SALES SUPPORT 00800/52323000 service@cranesportsconnect.com...
-
Page 42: Interval Mode With Gps
After your workout, the GPS watch will save all relevant data and you can view this data on your GPS watch or transfer it to the Crane Connect app on your smartphone/tablet for further analysis. If the Internet... - Page 43 Operation To access the interval mode: − Tap the MODE key several times if necessary until the world “INTERVAL” appears in the top row After a moment, the first activity (in this case “Run”) with the config- ured time (in this case 3 minutes – “03:00”) will appear and the number of repetitions (“03 REP”).
- Page 44 Operation RUN, JOG, WALK, REST, FAST, MED, SLOW. 7. Tap the VIEW key The workout duration will start to flash. 8. Set the minutes for the desired workout length. 9. Tap the VIEW key 10. Set the seconds for the workout length. 11.
-
Page 45: History Mode
GPS watch. You can view them in the history later (see section “History mode”) or transfer them to the Crane Connect app on your smartphone/tablet (see section “Data transfer”). - Page 46 Operation • You will see the time when the workout is completed in the centre row. • In the bottom row, you will see the number of laps (“L02”) to the extent they were counted and the week day (“TUE”). −...
- Page 47 Operation summary. Deleting workout data You can delete the data for the last workout or all data out of the memory of the GPS watch: 1. Access the history mode (see previous section). 2. Press and hold the MODE key until the word “DELETE”...
-
Page 48: Alarm Mode
Operation Alarm mode In alarm mode, you can view and set the alarm time. To access the alarm mode: − If necessary, tap the MODE key several times until the word “ALARM” appears in the top row The set alarm time will appear after a moment. -
Page 49: Data Transfer
Operation Data transfer In order to transfer the workout data saved on the GPS watch to the Crane Connect app on your smartphone/ tablet, the following prerequisites must be in place: − End any workouts in progress (the workout symbol must be off). -
Page 50: Cleaning And Maintenance
Cleaning and maintenance Cleaning and maintenance NOTICE! Risk of damage! Water that has penetrated the housing can cause damage to the GPS watch or the transmitter unit. − Never immerse the GPS watch or the transmitter unit in water. − Make sure that no water penetrates the housing. -
Page 51: Changing The Transmitter Unit's Battery
Cleaning and maintenance 2. Check the charging contacts on the back of the watch. If they are contaminated with perspiration residue, flakes of skin or dust, use the cleaning brush contained in the product contents. 3. Add a few drops of clean water to the contact pins of the watch and then clean them with the cleaning brush. - Page 52 Cleaning and maintenance 1. To open the battery compartment cover , use a coin to turn it counterclockwise. 2. Take the old battery out and insert a new one of the same type so that it is in the same position. Do not remove the white sticker from the battery compartment.
-
Page 53: Storage
Storage Storage − Clean the GPS watch and the chest strap thoroughly before storage (see section “Cleaning”). − Charge the battery pack fully. − Switch the GPS watch off. − Remove the battery from the transmitter unit. − Always store the GPS watch and the chest strap in a dry place. -
Page 54: Troubleshooting
Troubleshooting Troubleshooting Problem Possible cause Solutions, tips The battery The charging ca- The metal pins pack in the ble is not proper- must lock directly GPS watch is ly connected. into the contact not charging. points of the watch. Charging con- Clean the charg- tacts are dirty. - Page 55 Troubleshooting Problem Possible cause Solutions, tips Display blank. The GPS watch To turn it on, is off. press the LAP/ RESET key for approx. 5 seconds. The battery pack Charge the bat- is empty. tery pack. Contrast too low. Increase the con- trast (see “System setting mode”, “Contrast”).
- Page 56 Troubleshooting Problem Possible cause Solutions, tips Speed is not GPS reception Observe the shown. insufficient. notes on “Gen- eral information Speed is about GPS”. shown al- though not walking/ cycling. Heart rate is Connection Establish the not shown. between the Bluetooth®...
- Page 57 Problem Possible cause Solutions, tips Workout can- The memory of Transfer data not be started. the GPS watch to the Crane is full; the work- Connect app “Memory full!” out time or lap and clear mem- message. time exceeds 99 ory (see section hours.
-
Page 58: Technical Data
Please visit the following website for helpful FAQs for your GPS watch. http://www.cranesportsconnect.com EAN Code: 20023898 Technical data Model: AE5-GPS-6A/6B/6C Power supply – GPS watch lithium polymer battery pack, 380 mAH, 3.7 V – Transmitter unit lithium battery 3 V,... -
Page 59: Declaration Of Conformity
Disposal Declaration of conformity Krippl-Watches hereby declares that the GPS watch (model no. AE5-GPS-6A/6B/6C) complies with the fundamental requirements and other applicable provisions of the R&TTE 1999/5/CE, 2004/108/EC (electromagnetic compatibility) and RoHS 2011/65/EU directives. You can access the complete text for the declaration of conformity on our website: www.produktservice.info (EAN code: 20023898). -
Page 60: Disposing Of Old Devices
Disposal Disposing of old devices (Applicable in the European Union and other European states with systems for the separate collection of reusable waste materials) Old devices must not be disposed of with household waste! If the GPS watch can no longer be used, every user is required by law to dispose of old devices separately from their household waste, e.g. -
Page 61: Warranty
Location of purchase Description of malfunction: AFTER SALES SUPPORT Return your com- pleted warranty card 00800/52323000 together with the service@cranesportsconnect.com faulty product to: Model: AE5-GPS-6A/6B/6C 06/2015 Product Code: 92412 Krippl-Watches Freepostcode: RLTU-ZYZE-SKLG Please note: The helpline Picadilly 180 Number is a Freephone... -
Page 62: Warranty Conditions
Warranty conditions Dear Customer, The ALDI warranty offers you extensive benefits: Warranty period: 3 years from date of purchase. 6 months for wear parts and con- sumables under normal and proper conditions of use (e.g. rechargeable batteries). Costs: Free repair/exchange or refund. No transport costs. - Page 63 • Accident or unanticipated events (e.g. light- ning, water, fire). • Improper use or transport. • Disregard of the safety and maintenance in- structions. • Other improper treatment or modification. After the expiry of the warranty period, you still have the possibility to have your product repaired at your own ex- pense.
- Page 64 PRODUCED IN CHINA FOR: ALDI STORES LTD. PO BOX 26, ATHERSTONE WARWICKSHIRE, CV9 2SH ALDI STORES (IRELAND) LTD. PO BOX 726, NAAS, CO. KILDARE. visit us at www.aldi.com AFTER SALES SUPPORT 00800/52323000 service@cranesportsconnect.com YEARS Model: AE5-GPS-6A/6B/6C Product code: 92412 WARRANTY 06/2015...
