Crane AE5-CDSM-3A User Manual

Analogue smartwatch
Hide thumbs
Table of Contents

Advertisement

Quick Links

User
Manual
Spend a little
Live a lot
ANALOGUE SMARTWATCH
ID: #05007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AE5-CDSM-3A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Crane AE5-CDSM-3A

Summary of Contents for Crane AE5-CDSM-3A

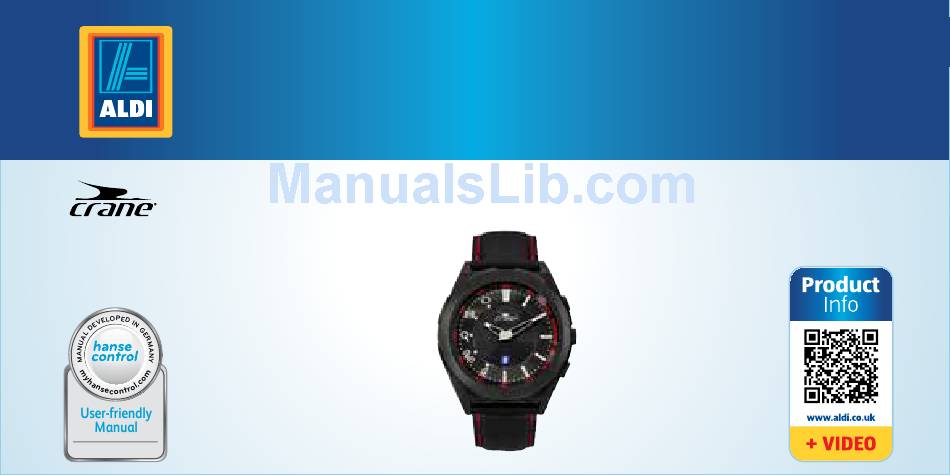

  • Page 1 User Manual Spend a little Live a lot ANALOGUE SMARTWATCH ID: #05007...

  • Page 2: Table Of Contents

    Sleep mode ............51 and product contents .........24 Remote trigger ............54 Start-up ...............25 Locating a smartphone or tablet .......55 Charging the rechargeable battery of the Smartwatch ........25 The Crane Connect app ........29 Compatibility ............30 Downloading and installing the app ....31...
  • Page 3 Disconnecting the Smartwatch from the smartphone/tablet ........56 Symbol table ............58 Watertightness ........... 60 Cleaning ...............62 Storage ..............63 Troubleshooting ..........64 Declaration of conformity ........67 Technical data ............ 68 Disposal .............. 69 Disposing of the packaging ....... 69 Disposing of the Smartwatch ......70 Warranty Card ............73 Warranty conditions ..........75 Warranty card ............73...

  • Page 4: Overview

    Overview...

  • Page 6: Product Contents/Device Parts

    Product contents/device parts Smartwatch Charger Button for the status indicator Button for triggering the camera (for locating the smartphone/tablet) Button for the goal indicator...

  • Page 7: Qr Code

    QR code QR codes get you results fast and without the hassle Regardless whether you need product information, spare parts or accessories, are looking for information about manufacturer warranties or service points or would like to watch a convenient instructional video, our QR codes will help you to easily get the information you are looking for.
  • Page 8 QR code How it works: To scan the QR code, all you need is a smartphone with a QR code reader installed on it and an Internet connection.* Generally, you can find a free QR code reader in the App store for your smartphone.

  • Page 9: General Information

    General information General information Reading and storing the instruction manual This instruction manual accompanies this analogue Smartwatch. It contains important information about operation and care. For improved readability, the “analogue Smartwatch” will be referred to only as the “Smartwatch” below. Before using the Smartwatch, read the instruction manual carefully.

  • Page 10: Explanation Of Symbols

    General information The instruction manual is based on the standards and rules in force in the European Union. When abroad, you must also observe country-specific guidelines and laws. Store the instruction manual for future use. If you pass the Smartwatch on to third parties, please be absolutely sure to include this instruction manual.
  • Page 11 General information This signal symbol/word designates a hazard with WARNING! moderate degree of risk which may lead to death or severe injury if not avoided. This signal symbol/word designates a hazard with CAUTION! low risk that, if not avoided, may result in minor or moderate injury.
  • Page 12 General information This symbol provides you with useful supplementary information on as- sembly or operation. Declaration of conformity (see chapter “Declaration of conformity”): Products marked with this symbol meet all appli- cable Community regulations for the European Economic Area. Google Play™ and Android™ are trademarks of Google Inc. Apple, the Apple logo, iPad and iPhone are registered trademarks in the USA and other countries by Apple Inc.

  • Page 13: Safety

    The Smartwatch is only designed for displaying the time, exchanging data with smart- phones and tablets as well as measuring physical activities. It is designed for collecting data which you can analyse with the Crane Connect app. The Smartwatch is only intended for private use and is not suitable for commercial, therapeutic or medical applications.

  • Page 14: Safety Notes

    Safety The manufacturer or vendor accepts no liability for damage caused by improper or incorrect use. Safety notes WARNING! Risk of accident/injury! Do not use the Smartwatch when you are driving a vehicle. It is dangerous to take your eyes off the road. It could cause an accident where you could injure yourself or other persons.
  • Page 15 Safety − Stop when you intend to use the Smartwatch or let a passenger make the settings. WARNING! Danger of explosion! Rechargeable batteries may explode if they are excessively heated up. − Do not heat up the Smartwatch. − Keep the Smartwatch away from hot surfaces. −...
  • Page 16 Safety WARNING! Danger for children and persons with impaired physical, sensory or mental capacities (e.g. partially disabled persons, older persons with reduced physical and mental capacities) or lack of experience and knowl- edge (e.g. older children). − This Smartwatch may be used by persons with impaired physical, sensory or mental capacities or those lacking experience and knowledge if they are supervised or have been instructed in how to safely use the Smartwatch and have understood the risks associated with operating it.
  • Page 17 Safety with the Smartwatch. Cleaning and user maintenance may not be performed by children unless they are under supervision. − Keep children away from the Smartwatch and the charger. − Do not let children play with the packaging wrapper. They could swallow it and suffocate.
  • Page 18 Safety CAUTION! Health hazard! The Smartwatch is not a medical device; it is a workout aid for calculating the distance covered and calories consumed. − Always consult a physician before you start a regular workout routine. AFTER SALES SUPPORT service@cranesportsconnect.com 00800/52323000...
  • Page 19 Safety NOTICE! Risk of damage! Improper handling of the Smartwatch may result in damage. − Do not use the Smartwatch if it exhibits visible damages. − Do not open the housing of the Smartwatch and have qualified profes- sionals perform repairs. For this, contact the manufacturer at the service address specified on the warranty card if repairs are needed.
  • Page 20 Safety − Do not take the rechargeable battery out of the Smartwatch; it is firmly inte- grated in it and cannot be replaced. − You can use the Smartwatch at ambient temperatures between -10 °C and +60 °C. − Do not place any heavy objects on the Smartwatch and do not apply pres- sure to the Smartwatch.
  • Page 21 Safety NOTICE! Risk of damage! − Keep in mind that salt and thermal water may cause metal parts to corrode. − It is recommended that you do not wear the watch in a sauna as differenc- es in temperature may cause condensation to form, which could damage the clockwork.
  • Page 22 Safety − Peak pressures may occur when swimming or when exposed to a water jet (e.g. when showering or washing your hands). During such activities, affected areas may be subjected to a significantly greater pressure than ex- pected for the immersion depth. Only watches with a classification of 5 bar or more can be considered watertight (showering allowed).
  • Page 23 Safety housing. This is not necessarily a sign that it is not watertight; it is, however, imperative that the moisture is immediately removed. In this case, contact the service address indicated on the warranty card. − You can find more related information in the chapter “Watertightness”. AFTER SALES SUPPORT 00800/52323000 service@cranesportsconnect.com...

  • Page 24: Checking The Smartwatch And Product Contents

    Checking the Smartwatch and product contents Checking the Smartwatch and product contents 1. Take the Smartwatch out of the packaging. 2. Remove the protective foil from the Smartwatch. 3. Check to make sure that the delivery is complete (see fig. A – B). 4.

  • Page 25: Start-Up

    Start-up Start-up Charging the rechargeable battery of the Smartwatch NOTICE! Risk of damage! Improperly connecting the charger may damage the Smartwatch. − Only use the enclosed charging cable and a USB port on your PC or a USB charger to charge the rechargeable battery of the Smartwatch. AFTER SALES SUPPORT 00800/52323000 service@cranesportsconnect.com...
  • Page 26 Start-up The Smartwatch has an integrated lithium polymer rechargeable battery. Charge it fully before using the Smartwatch for the first time (approx. 3 hours). 1. Make sure the charging contacts on the back of the Smartwatch are thoroughly dry in order to avoid corrosion. 2.
  • Page 27 Start-up 3. Connect the USB cable of the charger to the USB port of a PC or a USB charger. Make sure that the PC is switched on or the USB charger is connected to the mains. The symbol will light up during the charging process. The rechargeable battery is fully charged as soon as the symbol lights up.
  • Page 28 Start-up If the battery is almost empty, the and symbols will flash three times in a row. Until the Smartwatch is recharged, the and symbols will flash once briefly every time any button is pressed. In this case, recharge the Smartwatch as soon as possible.

  • Page 29: The Crane Connect App

    The Crane Connect app The Crane Connect app The Smartwatch can only be used in connection with the Crane Connect app, which you can download free-of-charge from the App Store and the Google Play™ Store. With the Crane Connect app, you can: •...

  • Page 30: Compatibility

    The Crane Connect app Compatibility The following smartphones and tablets with Bluetooth® Smart Ready (Bluetooth® 4.0) are compatible with the Smartwatch and the Crane Connect app: • Apple® iPhone® 4s and more recent versions • Apple® iPad® 3rd generation and more recent versions •...

  • Page 31: Downloading And Installing The App

    The Crane Connect app Downloading and installing the app 1. Download the free Crane Connect app from the App Store (if you are an iPhone® or iPad® user), from the Google Play™ Store (if you are an Android™ user) at www.cranesportsconnect.com/downloads or via the following QR code:...
  • Page 32 To avoid long download times and associated costs, it is recommended that you use a Wi-Fi connection for downloads. 2. Install the Crane Connect app on your smartphone or tablet. Follow the registration instructions step-by-step to do so. You can also create your user account on the website www.cranesportsconnect.com.

  • Page 33: Connecting The Smartwatch With The Smartphone/Tablet

    Connecting the Smartwatch with the smartphone/ tablet 1. Make sure that Bluetooth® is activated on your smartphone or tablet. 2. On your smartphone or tablet, open the Crane Connect app and access “All Settings”. 3. Push “Analogue Smartwatch”. 4. Push “Connect” in the “Pairing” field.
  • Page 34 After successful synchronisation, the app will display the ID of the paired Smart- watch and the message “Success!” will appear. If your smartphone or tablet has an active Internet connection, the Crane Connect app will automatically upload all data measured to the website www.cranesportsconnect.com for permanent storage.

  • Page 35: Setting The Time

    Setting the time Setting the time As soon as the Smartwatch is connected with the Crane Connect app and the app is opened, the time on the Smartwatch will be updated. The time on the Smartwatch can only be set with the Crane Connect app.

  • Page 36: Messages

    Messages Messages In the Crane Connect app, you can select in which cases the Smartwatch will notify you with status messages from your smartphone or tablet. You can select incoming calls, missed calls, unread messages, unread e-mails, aborted connections between the Smartwatch and paired smartphone/tablet as well as attempts of the smartphone/ tablet to find the Smartwatch.
  • Page 37 Messages 3. Activate the desired notification functions by pushing the corresponding slider to the right ( If you would like to configure how the Smartwatch is to alert you of a notification, push the corresponding notification function. You now have the choice of setting the flashing frequency (“Flash”) of the LED light (“Off”, “Slow”...

  • Page 38: Receiving Notifications

    Messages Receiving notifications To be able to receive notifications, your smartphone or tablet must be within Bluetooth® range. If a call is received on your smartphone, the Smartwatch will notify you with the signals configured in the app. The symbol will flash if you have enabled “Flash” in the settings. If you missed a call on your smartphone, the Smartwatch will notify you with the signals configured in the app.
  • Page 39 Messages If a message (e.g. SMS, Facebook, Twitter, WhatsApp) is received on your smartphone or tablet, the Smartwatch will notify you with the signals configured in the app. The symbol will flash if you have enabled “Flash” in the settings. If an e-mail is received on your smartphone or tablet, the Smartwatch will notify you with the signals configured in the app.
  • Page 40 Messages An interrupted Bluetooth® connection is automatically restored as soon as you are within range of your smartphone or tablet. In this case, the Smart- watch will synchronise the incoming notification with the smartphone or tablet. At the beginning of the synchronisation, the Smartwatch will vibrate once briefly.
  • Page 41 Messages As soon as you have accessed the notification on your smartphone or tablet, the corresponding notification on your Smartwatch will be deleted. The prerequisite for this is that there is a Bluetooth® connection between the Smartwatch and your smartphone or tablet. To deactivate the receipt of notifications on the Smartwatch, hold the button for the status indicator down for approx.

  • Page 42: Locating The Smartwatch

    Messages Locating the Smartwatch If you have misplaced the Smartwatch, you can use the Crane Connect app to find it. 1. On your smartphone or tablet, open the Crane Connect app and access the settings for the Smartwatch. 2. Scroll down to “Find Watch”.

  • Page 43: Configuring Alarms

    Configuring alarms In the Crane Connect app, you can configure up to three alarms per day. 1. On your smartphone or tablet, open the Crane Connect app and access the settings for the Smartwatch. 2. Under “Alarm”, select one of the three preset alarms by pushing the time.

  • Page 44: Daily Goals

    − If necessary, you can set two further alarms in this way. Daily goals With the Smartwatch and the corresponding Crane Connect app, you are capable of setting daily goals for your physical activities. Each day, the Smartwatch records your steps using a sensor and with your personal data, it determines to what extent you have already fulfilled the goals you set.
  • Page 45 • Calories – The Smartwatch calculates the calories you burn in a day. The calculation is based on your level of activity and your individual data (height, age, gender, weight, duration of sleep, etc.), which the Smartwatch obtains from the Crane Connect app.

  • Page 46: Setting Daily Goals

    To set a daily activity goal that you can compare with the Smartwatch, proceed as follows: 1. On your smartphone or tablet, open the Crane Connect app and access the settings for the Smartwatch. 2. Scroll down to “Daily Goals”.

  • Page 47: Viewing Your Daily Progress

    Daily goals 3. With the corresponding input fields, specify how many steps you take a day, the distance you cover every day and how many calories you would like to burn on a daily basis. Your entries will be stored. Viewing your daily progress With the Smartwatch, you can check your progress with respect to goals you set any time you like.
  • Page 48 Daily goals In the Crane Connect app, you can configure which goal you would like to access on the Smartwatch. For this, access the settings for the Smartwatch in the app and select “Daily Goals”. AFTER SALES SUPPORT service@cranesportsconnect.com 00800/52323000...
  • Page 49 Daily goals 100 % from ab 75 % from ab 50 % from ab 25 % from ab 0 % AFTER SALES SUPPORT 00800/52323000 service@cranesportsconnect.com...
  • Page 50 Daily goals Use the Crane Connect app if you would like to view the exact data for your activities. − On your smartphone or tablet, open the Crane Connect app and access “Analogue Smartwatch” in the “Home” menu. The screen will show you the exact number of steps covered per day, the distance and calories burned.

  • Page 51: Sleep Mode

    Activating sleep mode Wear the Smartwatch when you go to bed and set it to “Auto sleep” in the Crane Connect app. To activate the sleep mode on the Smartwatch, proceed as follows: −...
  • Page 52 If the Smartwatch is in sleep mode, the symbols from to will flash sequentially. If you would also like to receive notifications from your smartphone or tablet when sleep mode is active, you can configure the respective settings in the Crane Connect app. AFTER SALES SUPPORT service@cranesportsconnect.com...
  • Page 53 Daily goals Deactivating sleep mode When you wake up in the morning, you can deactivate sleep mode on the Smartwatch as follows: − Hold the button for the goal indicator down for 2 seconds. To confirm the entry, all symbols from to will flash sequentially on the Smartwatch.

  • Page 54: Remote Trigger

    You can also use the Smartwatch to trigger the camera on your smartphone or tablet. 1. Make sure that Bluetooth® is activated on your smartphone or tablet. 2. Open the Crane Connect app on your smartphone or tablet. 3. Push the button for triggering the camera on the Smartwatch.

  • Page 55: Locating A Smartphone Or Tablet

    The button for triggering the camera can be configured for this purpose. 1. On your smartphone or tablet, open the Crane Connect app and access the settings for the Smartwatch. 2. Assign the function “Find Smartphone” to the button for triggering the camera.

  • Page 56: Disconnecting The Smartwatch From The Smartphone/Tablet

    Disconnecting the Smartwatch from the smartphone/tablet If you would like to disconnect the Smartwatch from your smartphone or tablet, proceed as follows: 1. On your smartphone or tablet, open the Crane Connect app and access the settings for the Smartwatch. AFTER SALES SUPPORT service@cranesportsconnect.com...
  • Page 57 Disconnecting the Smartwatch from the smartphone/tablet 2. Go to the “Pairing” field. 3. Push “Disconnect”. To completely disconnect the Smartwatch from your smartphone or tablet, also check for the Bluetooth® connections in your smartphone or tablet settings and remove the Smartwatch there as well.

  • Page 58: Symbol Table

    Symbol table Symbol table Symbol Meaning • (if it flashes three times simultaneously with ): The rechargeable battery is almost empty • incoming call • missed call • (if the charger is connected) rechargeable battery is being charged • interrupted Bluetooth® connection AFTER SALES SUPPORT service@cranesportsconnect.com 00800/52323000...
  • Page 59 Symbol table Symbol Meaning • incoming e-mail • incoming message (e.g. SMS, Facebook, Twitter, WhatsApp) • (if the charger is connected) rechargeable battery has been charged • (if it flashes three times simultaneously with ): The rechargeable bat- tery is almost empty AFTER SALES SUPPORT 00800/52323000 service@cranesportsconnect.com...

  • Page 60: Watertightness

    Watertightness Watertightness The Smartwatch has been tested for watertightness up to 5 bar. It is therefore suitable for daily use, e.g. when showering or washing your hands. Situation Watertight to 5 bar* rain, splashes washing your hands showering AFTER SALES SUPPORT service@cranesportsconnect.com 00800/52323000...
  • Page 61 Watertightness Situation Watertight to 5 bar* bathing/swimming water sports *The specification of bar refers to the air overpressure used in connection with the watertightness test for the Smartwatch in accordance with DIN 8310. AFTER SALES SUPPORT 00800/52323000 service@cranesportsconnect.com...

  • Page 62: Cleaning

    Cleaning Cleaning NOTICE! Risk of damage! Improperly cleaning may lead to damage. − Do not use any aggressive cleaners, brushes with metal or nylon bristles, as well as sharp or metallic cleaning utensils such as knives, hard scrapers and the like. They could damage the surfaces. −...

  • Page 63: Storage

    Storage Storage − Before storage, clean the Smartwatch and charger thoroughly as described in the chapter “Cleaning”. − Always store the Smartwatch and charger in a dry area. − Protect the Smartwatch and charger against exposure to direct sunlight and other sources of heat.

  • Page 64: Troubleshooting

    Troubleshooting Troubleshooting Fault Solution The Smartwatch does not Your smartphone or tablet does not support Blue- respond to entries made on tooth® Smart Ready. Exchange your smartphone or the smartphone or tablet. tablet with a model that supports Bluetooth® Smart Ready.
  • Page 65 Troubleshooting Fault Solution No connection is established − Do not connect the Smartwatch and Crane Con- nect app with the Bluetooth® settings for your between the Smartwatch and smartphone or tablet. your smartphone or tablet. − Activate Bluetooth® before you open the Crane Connect app.
  • Page 66 − Enable the visibility of your smartphone or tablet in the Bluetooth® menu. − Reinstall the Crane Connect app on your smart- phone or tablet. Before you complain about the Smartwatch, please check whether the rechargeable battery is empty and recharge it if necessary.

  • Page 67: Declaration Of Conformity

    Declaration of conformity Declaration of conformity Krippl-Watches hereby declares that the analogue Smartwatch (model no. AE5-CDSM- 3A/3B/6) complies with the fundamental requirements and other applicable provisions of the R&TTE 1999/5/CE and RoHS 2011/65/EU directives. You can access the complete text for the declaration of conformity on our website: www.produktservice.info.

  • Page 68: Technical Data

    Technical data Technical data Model number: AE5-CDSM-3A/3B/6 Article number: 92747 EAN code: 20027230 Operating temperature: -10 °C to +60 °C Battery: 1×3.7 V Li-polymer, 30 mAh (AE5-CDSM-6: 25 mAh), rechargeable AFTER SALES SUPPORT service@cranesportsconnect.com 00800/52323000...

  • Page 69: Disposal

    Disposal Disposal Disposing of the packaging Dispose of the packaging separated into single type materials. Dispose of cardboard and carton as waste paper and foils via the recyclable material collection service. AFTER SALES SUPPORT 00800/52323000 service@cranesportsconnect.com...

  • Page 70: Disposing Of The Smartwatch

    Disposal Disposing of the Smartwatch (Applicable in the European Union and other European states with systems for the sep- arate collection of reusable waste materials) Old devices must not be disposed of with household waste! If at some point it is no longer possible to use the Smartwatch, each consumer is required by law to dispose of old devices separately from their household waste, e.g.
  • Page 71 Disposal Batteries and rechargeable batteries may not be disposed of with household waste! As the end user you are required by law to bring all batteries and rechargea- ble batteries, regardless whether they contain harmful substances* or not, to a collection point run by the communal authority or borough or to a retailer, so that they can be disposed of in an environmentally friendly manner.
  • Page 72 AFTER SALES SUPPORT service@cranesportsconnect.com 00800/52323000...

  • Page 73: Warranty Card

    WARRANTY CARD ANALOGUE SMARTWATCH Your details: Name: Address: E-mail: Date of purchase *: * We recommend you keep the receipt with this warranty card. Location of purchase:...
  • Page 74 Return your completed warranty card together with the faulty product to: 00800/52323000 GB IRE Krippl-Watches service@cranesportsconnect.com Free Postcode: Model: AE5-CDSM-3A/3B/6 Product Code: 92747 11/2015 RLTU-ZYZE-SKLG Please note: The helpline Number 180 Piccadilly is a Freephone Number however please allow time (up to 10 seconds)

  • Page 75: Warranty Conditions

    Warranty conditions Dear Customer, The ALDI warranty offers you extensive benefits: Warranty period: 3 years from date of purchase. 6 months for wear parts and consumables under normal and proper conditions of use (e.g. rechargeable batteries). Costs: Free repair/exchange or refund. No transport costs.
  • Page 76 ADVICE: Please contact our service hotline by phone, e-mail or fax before sending in the device. This allows us to provide support in the event of possible operator errors. In order to make a claim under the warranty, please send us: •...
  • Page 77 • Accident or unanticipated events (e.g. lightning, water, fire). • Improper use or transport. • Disregard of the safety and maintenance instructions. • Other improper treatment or modification. After the expiry of the warranty period, you still have the possibility to have your product repaired at your own expense.
