USER INSTRUCTIONS
THE SUPER™440, 220 SERIES
S4-VSD/S2-VSD model
RIC/RITE
Receiver-in-canal/Receiver-in-the-ear

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S4-VSD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Widex S4-VSD

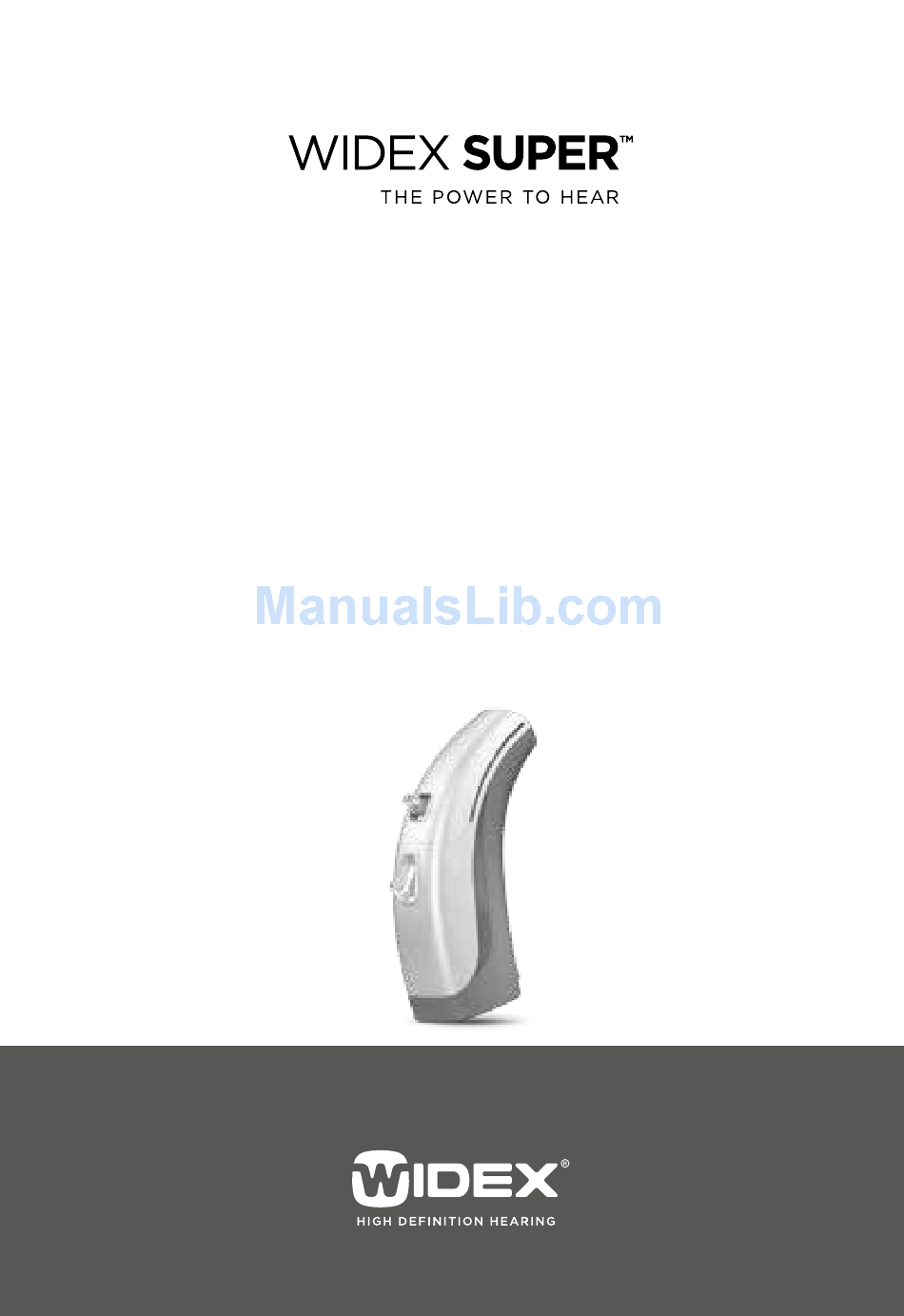

  • Page 1 USER INSTRUCTIONS THE SUPER™440, 220 SERIES S4-VSD/S2-VSD model RIC/RITE Receiver-in-canal/Receiver-in-the-ear...
  • Page 2: Your Hearing Aid

    YOUR HEARING AID (To be filled out by the hearing care professional) … S4-VSD … … S2-VSD … Programs: … Master … Music … TV … Comfort … Reverse focus … Audibility Extender … Phone … T … M+T … Zen …...
  • Page 3: Table Of Contents

    CONTENTS THE…HEARING…AID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Acoustic indicators .
  • Page 4: The…Hearing…Aid

    THE HEARING AID The illustration below shows the hearing aid without the ear-set. The ear-set consists of an earwire and an ear-tip or earmould, in which the receiver is placed. 1. Program…button 2. LED 3. On/off…switch 4. Battery…drawer…with…nail…grip 5. Volume…control…(in standard versions) 6.
  • Page 5 In addition to these user instructions, a separate user manual is provided describing the various ear-set solutions available for your hearing aid: “Ear-sets for Widex BTE hearing aids” . …WARNING This booklet and the manual “Ear-sets for Widex BTE hear- ing aids”...
  • Page 6 They are to be programmed by licensed hearing care professionals (audiologists, hearing aid specialists, oto- laryngologists) who are trained in hearing (re)habilita- tion. Description…of…device Your SUPER™ hearing aid is used with an ear-set which consists of an earwire and an ear-tip or earmould, in which the receiver is placed.
  • Page 7: Acoustic Indicators

    Acoustic…indicators The hearing aid may be set to produce a signal to in- dicate the use of certain functions. The signal may be a spoken message or tones. The signal can also be de- activated. Default… Other… Functions settings settings Adjusting volume Tone Confirming program button use...
  • Page 8: The Battery

    The…battery We recommend zinc-air…batteries. Use a size…675…bat- tery for the hearing aid. To obtain replacement batteries, please consult your hearing care professional. It is important to take note of the expiry date and the recommendations on the bat- tery pack regarding disposal of used batteries. Other- wise there is a risk that the battery life may be reduced.
  • Page 9 Place the battery in the drawer, so that the plus (+) sign on the battery faces upward. You can use the battery magnet provided to steer the battery into place. If the battery drawer does not close easily, the battery is incorrectly inserted.
  • Page 10: Low Battery Indication

    The battery drawer is opened as illus- trated. Low…battery…indication An acoustic indicator will sound when the battery is nearly exhausted, unless this function has been disa- bled (see page 7). We recommend that you always have a spare battery with you. …WARNING…...
  • Page 11: Turning The Hearing Aid On And Off

    Turning…the…hearing…aid…on…and…off The battery drawer of the hearing aid also functions as the on/off switch. Close the battery drawer complete- ly to turn on the hearing aid. An acoustic indicator will indicate that the hearing aid has been switched on, unless this function has been disabled.
  • Page 12: Right/Left Identification

    Right/left…identification If you wear hearing aids on both ears, the hearing aids can be pro- vided with coloured marks (red mark = right and blue mark = left). The arrow shows the position of the identification mark.
  • Page 13: Positioning The Hearing Aid In The Ear

    Positioning…the…hearing…aid…in…the…ear… Hold the earmould with your thumb and forefinger and slowly guide it into your ear canal until you feel resist- ance. Let go of the earmould and use the tip of your forefinger to gently push it into your ear until it rests comfortably in your ear canal.
  • Page 14 If the ear-set does not fit or sit properly, causing dis- comfort, irritation, redness or the like, contact your hearing care professional.
  • Page 15: Removing The Hearing Aid

    Removing…the…hearing…aid… Remove the hearing aid from its position behind the ear. Hold the earmould with your thumb and forefinger and pull gently. …WARNING Do not pull the earwire to remove the earmould, as this may damage the earwire . If it is difficult, you can try to move the earmould care- fully from side to side.
  • Page 16: Volume Adjustment

    Volume…adjustment The hearing aid volume is adjusted automatically in ac- cordance with your sound environment. Manual…volume…adjustment Furthermore, your hearing aid is provided with a vol- ume control, shaped like a small lever (unless your hearing care professional has removed it for you). Push the lever upwards to gradually raise the volume.
  • Page 17 …WARNING… If the volume in the hearing aid is generally too loud or too weak, or the reproduced sounds are distorted, or if you would like any further information, consult your hearing care pro- fessional . To…turn…off…the…sound…completely: • Keep pressing the volume control lever downwards after the steady tone has sounded.
  • Page 18: Lost Partner Alarm

    Lost…partner…alarm (Note:…Only…applicable…if…this…feature…has…been…activat- ed…by…your…hearing…care…professional). If one of your hearing aids falls off your ear, and/or the battery is exhausted, a tone signal and a spoken mes- sage will sound two times in the other hearing aid, and a diode will flash on both hearing aids. When the lost hearing aid is repositioned, and/or the battery is exchanged, the diodes stop flashing.
  • Page 19 In this program you listen via the telecoil (T) and not via the hearing aid microphones (M). The telecoil is used where a loop system is installed. If you activate the telecoil program, you listen to a specific sound source and shut out surrounding sounds.
  • Page 20 If your needs change over time, the combination of lis- tening programs can be altered. …CAUTION… When selecting Phone+ as listening program, please remember that there are situations in which it is particularly important to be able to hear the surrounding sounds .
  • Page 21 Zen…program Your hearing aid may be provided with a unique option- al listening program called Zen. It makes musical tones (and sometimes a rushing noise) in the background. These sounds are shaped according to your hearing loss. The Zen program may be used alone (without am- plification) in quiet when you are not required to hear surrounding sounds.
  • Page 22 Directions…for…use Because of the unique ways in which Zen is pro- grammed in your hearing aid, please follow the rec- ommendations of your hearing care professionals as to how to use the program, when to use the program and/ or how long to use the program. …CAUTION…...
  • Page 23: Switching Between The Listening Programs

    Switching…between…the…listening… programs Each time you switch to another program, an acoustic indicator will sound unless this function has been disabled . Program…1: One short beep or message Program…2: Two short beeps or message Program…3: Three short beeps or message Program…4: One long and one short beep or message Program…5: One long and two short beeps or message Zen+…or…Phone+: Tone or message In the default setting, both your hearing aids will be...
  • Page 24: Zen

    Zen+ This program is accessed via a long press (more than 1 sec.) on the program button on the hearing aid or RC-DEX remote control. A short press then allows you to cycle through the available Zen styles. You can exit Zen+ by pressing and holding the program button for more than one second.
  • Page 25: Using A Telephone

    Using…a…telephone When using a telephone, we recommend that you hold the telephone against your head at an angle above your ear, rath- er than directly against the ear. If the sound is not optimal, try moving the telephone earpiece to a slightly different position.
  • Page 26: Cleaning

    CLEANING The following cleaning accessories are available for the hearing aid and ear-set.* For cleaning the ear-set, see the user manual “Ear-sets for Widex BTE hearing aids.” 1. Cloth 2. Brush… 3. Wax…removing…tool … Contact your hearing care professional if you need ad- ditional supplies of cleaning accessories.
  • Page 27 Clean the hearing aid with the soft cloth after use. If the microphone open- ings are still blocked, con- tact your hearing care pro- fessional. …WARNING… Never use water or cleaning solutions to clean the hearing aid, as this may cause it to malfunction . When the hearing aid is not in use, keep it in a warm, dry place with the battery drawer open to ventilate the hearing aid and allow it to dry.
  • Page 28: Accessories

    ACCESSORIES A variety of assistive listening devices are available for your hearing aid. For help in determining whether you could benefit from a remote control or other accessories, please consult your hearing care professional. Direct…audio…input The hearing aid can be furnished with a universal DAI adapter.
  • Page 29 Attaching…the…universal…DAI…adapter: 1. Use the tip of your finger to slide off the cover plate at the bottom of the hearing aid. 2. Slide the DAI adapter onto the hearing aid until it clicks into place. 3. Lock it into place by sliding the locking button downwards, as illustrated.
  • Page 30 Removing…the…universal…DAI…adapter: Remove the three-pin Europlug device attached to the DAI adapter 1. Unlock the DAI adapter by sliding the locking button upwards, as illustrated. 2. Slide the DAI adapter off the hearing aid. 3. Slide the cover plate on. For more information on the use of audio input consult your hearing care professional.
  • Page 31 Program…order M-DAI … … … … … … … … … … …WARNING If the hearing aid is connected to equipment which is connect- ed to the electrical mains, this equipment must comply with IEC 60065, IEC 60950-1, IEC 60601-1 or equivalent safety stand- ards .
  • Page 32 FM…systems The Widex FM system, SCOLA, consists of a wireless microphone and a receiver integrated in an FM shoe. The Widex receiver suitable for your hearing aid is called SCOLA FLEX-i. The system can be set according to your needs.
  • Page 33 Removing…the…SCOLA…FLEX-i: 1. Unlock the SCOLA FLEX-i by sliding the locking button upwards, as illustrated. 2. Slide the SCOLA FLEX-i off the hearing aid. 3. Slide the cover plate on. For more information on the SCOLA FM system, con- sult the SCOLA™ FM system and the SCOLA FLEX/ SCOLA FLEX-i user instructions.
  • Page 34: In…Case…Of…Malfunction

    IN CASE OF MALFUNCTION Problem Possible…cause Solution The hearing aid The hearing aid is Make sure the battery is completely not turned on drawer is completely silent closed The battery does Insert a new battery in not work the hearing aid The hearing aid Your ear is blocked Contact your ENT...
  • Page 35 Problem Possible…cause Solution The hearing The DEX is used be- Move the DEX closer to aids do not yond the transmis- the SUPER hearing aids respond with a sion range correspond ing change in Strong electromag- Move away from known volume or netic interference in source of EM...
  • Page 36 DAI adapter Note: This information covers only the hearing aid. See the “Ear-sets for Widex BTE hearing aids” user manual for information specific to your ear-set and the SCOLA FM system manual for information on your SCOLA de- vices.
  • Page 37: Caring…For…Your…Hearing…Aid

    CARING FOR YOUR HEARING AID The hearing aid is a valuable object and should be treated with care. Here are some things you can do to prolong the life of your hearing aid: … …CAUTION… • Turn off your hearing aid when it is not in use. Remove the bat- tery if the hearing aid will not be used for several days.
  • Page 38: Warnings…

    WARNINGS …WARNING… Hearing aids and batteries can be dangerous if swal lowed or used improperly . Swallowing or improper use can result in severe injury or even fatalities . In case of ingestion, contact a physician immediately . • Keep hearing aids and their parts, accessories and batteries out of reach of children and anyone else who might swallow such items or otherwise cause injury to themselves.
  • Page 39 Do not under any circumstances use alcohol, chlorine or similar substances for this purpose. • Regular use of a de-humidifier is recommended to help avoid malfunction of the hearing aid. • Do not use Widex hearing aids in mines or other areas with ex- plosive gases.
  • Page 40 …WARNING… • Do… not… wear… your… hearing… aid… during… radiation,… X-rays,… MRIs,…CT…or…other…medical…treatments…and…scans. The emis- sions from these procedures as well as from other types of radiation, such as that in a microwave oven, can damage your hearing aid and the hearing aid can become very hot. Radiation from, for example, room surveillance equipment, burglar alarms and mobile phones is weaker and will not dam- age the hearing aid, but may create audible interference.
  • Page 41 …WARNING… Interference with active Implants • In order to show caution, we advise to follow the guidelines recommended by manufacturers of defibrillators and pace- makers regarding use of mobile phones: • If you wear an active implantable device keep the Wireless Hearing Aids and Hearing Aid Accessories such as wireless re- mote controls or communicators at least 15 cm away from the implant.
  • Page 42 … …CAUTION… • Your hearing aid has been tested for interference according to international standards. Nevertheless, it is possible that un- foreseen interference may occur in the hearing aid due to elec- tromagnetic radiation from other products such as alarm sys- tems, room surveillance equipment and mobile phones.
  • Page 43: Advice

    ADVICE NOTE… • The hearing aid will not restore normal hearing and will not pre- vent or improve a hearing loss resulting from organic condi- tions. However, the hearing aid can help you to make the best possible use of your remaining hearing ability. You should also bear in mind that it can take time to get used to a new hearing aid and new sounds.
  • Page 44: Regulatory…Information

    REGULATORY INFORMATION FCC ID: TTY-S4VSD IC: 5676B-S4VSD Federal…Communications…Commission…Statement… This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 45 This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Changes or modifications to the equipment not expressly approved by Widex could void the user’s authority to operate the equipment. Industry…Canada…Statement…/… Déclaration…d’industrie…Canada...
  • Page 46 This device complies with Industry Canada licence- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 47 Directive…1999/5/EC Hereby, Widex A/S declares that this S4-VSD i and S2- VSD is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity according to 1999/5/EC can be found at:...
  • Page 48 Electrical and electronic equipment (EEE) contains materials, components and sub- stances that can be hazardous and present a risk to human health and the environment when waste electrical and electronic equip- ment (WEEE) is not handled correctly . Do not dispose of hearing aids, hearing aid accessories and batteries with ordinary household waste .
  • Page 49 YOUR HEARING AID (To be filled out by the hearing care professional) Date: _________________________________________ Battery…size:…675 Programs…available…in…your…hearing…aid: Program 1: Program 2: Program 3: Program 4: Program 5: Special program:...
  • Page 50 Programs…available…in…your…hearing…aid: Program 1: Program 2: Program 3: Program 4: Program 5: Special program:...
  • Page 51: Symbols

    SYMBOLS SYMBOLS Symbols commonly used by Widex A/S in medical device labelling (labels/IFU/etc .) Symbol Title/Description Manufacturer The product is produced by the manufacturer whose name and address are stated next to the symbol . If ap- propriate, the date of manufacture may also be stated .
  • Page 52 Symbol Title/Description Keep dry The product must be protected from moisture and/or The product must be kept away from rain Lower limit of temperature The lowest temperature to which the product can be safely exposed . Upper limit of temperature The highest temperature to which the product can be safely exposed .
  • Page 53 Symbol Title/Description CE mark The product is in conformity with the requirements set out in European CE marking directives . Alert The product is identified by R&TTE Directive 1999/5/EC as an equipment Class 2 product with some restrictions on use in some CE member states . C-Tick mark The product complies with EMC and radio spectrum regulatory requirements for products supplied to the...
  • Page 56 WIDEX A/S Nymoellevej 6, DK-3540 Lynge, Denmark www . w idex .com Manual no .: É[5qr0w9|d;;a;k] 9 514 0293 001 #01 Issue: 2014-10...
