ADI CF Back Owner's Manual

Hide thumbs

Advertisement

Table of Contents

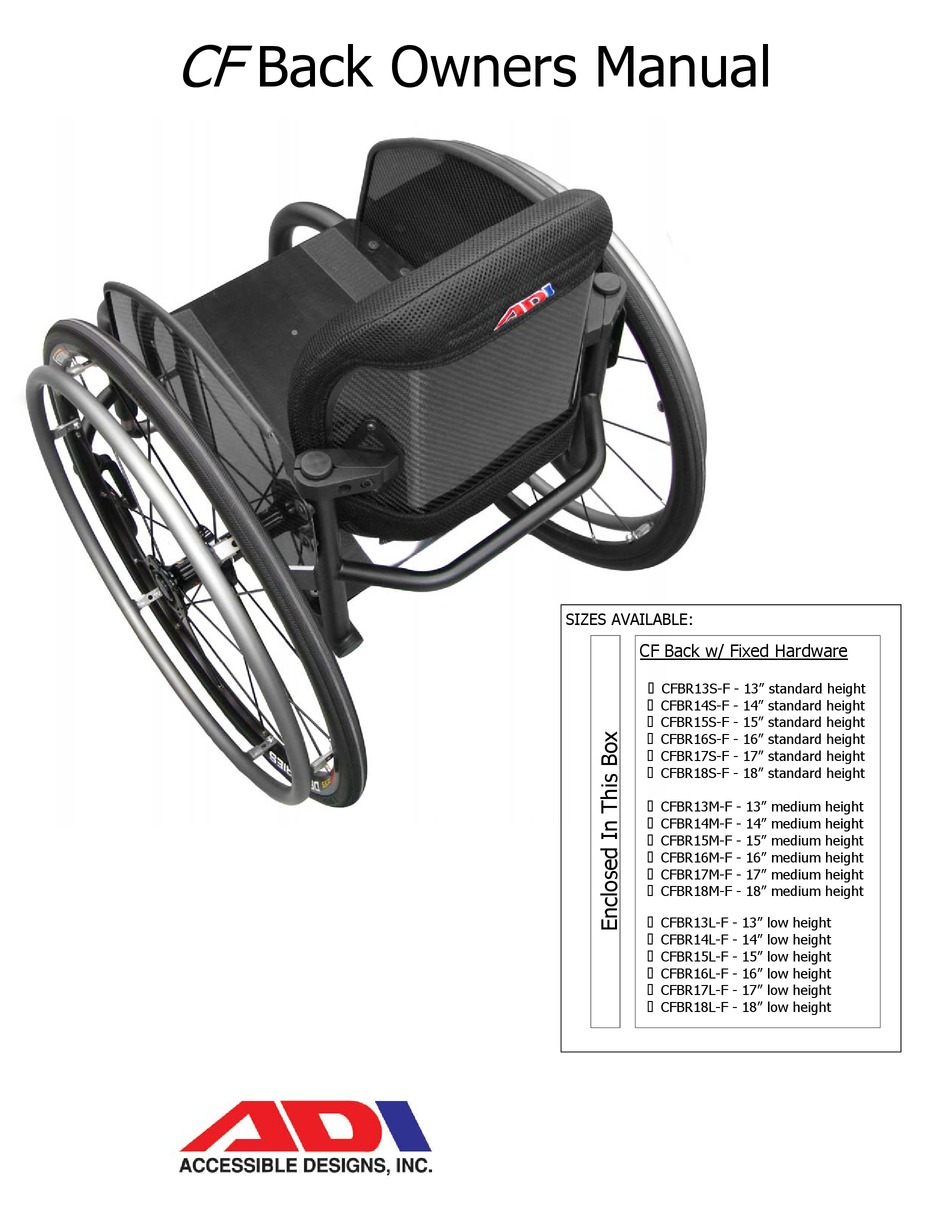

CF
Back Owners Manual

SIZES AVAILABLE:

CF Back w/ Fixed Hardware
CFBR13S-F - 13" standard height 
 CFBR14S-F - 14" standard height
 CFBR15S-F - 15" standard height
 CFBR16S-F - 16" standard height
 CFBR17S-F - 17" standard height
 CFBR18S-F - 18" standard height
 CFBR13M-F - 13" medium height
 CFBR14M-F - 14" medium height
 CFBR15M-F - 15" medium height
 CFBR16M-F - 16" medium height
 CFBR17M-F - 17" medium height
 CFBR18M-F - 18" medium height
 CFBR13L-F - 13" low height
 CFBR14L-F - 14" low height
 CFBR15L-F - 15" low height
 CFBR16L-F - 16" low height
 CFBR17L-F - 17" low height
 CFBR18L-F - 18" low height

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CF Back and is the answer not in the manual?

Questions and answers

Related Manuals for ADI CF Back

Summary of Contents for ADI CF Back

  • Page 1 Back Owners Manual SIZES AVAILABLE: CF Back w/ Fixed Hardware CFBR13S-F - 13” standard height    CFBR14S-F - 14” standard height  CFBR15S-F - 15” standard height  CFBR16S-F - 16” standard height  CFBR17S-F - 17” standard height ...
  • Page 2 Parts Detail: Back with Fixed Mounting Hardware A. Cap Piece - holds CF Back to back posts with bolts. B. Bolts - bolts fasten bracket clamps on wheelchair back posts. NOTE: Standard and Medium backs use 1 bolt per clamp. Low backs use 2 bolts per clamp.
  • Page 3 Attaching the Fixed CF Back to Your Wheelchair A. Cap Piece B. Bolt C. Fixed Mounting Bracket NOTE: Be sure not to attach or adjust the CF Back while the wheelchair is occupied. Step 1: Remove existing wheelchair back support Step 2: Place the CF Back onto wheelchair back posts.
  • Page 4 CAUTION · If you are able to fold the back canes, the CF back should be in the folded position when transporting the wheelchair, especially before loading for air travel.
  • Page 5 Posterior, Superior, Illiac Spine (PSIS) When positioning the CF Back, the interior portion of the CF Back should be positioned to make contact at the PSIS to provide optimal pelvic support and trunk control. Cleaning the CF Back - Use a soft cloth to clean Carbon Fiber Back shell.
  • Page 6 Limited 12 - Month Warranty Hard Goods (product made from carbon fiber or metals) Warranty covers any defects in materials or workmanship of its products for one year from the original invoice date. Soft Goods (product made from fabric, foam or plastics) Warranty covers any defects in materials or workmanship of its products for six month from the original invoice date.
