TOOLS NEEDED
2 each – 1/2" open end wrenches
1 each – 1/8" allen key
1 each – drill with 3/8" bit
NOTE: For reference purposes support mounts come fully
assembled. Seat Bases are not pre-drilled to avoid
interference with other parts on frame.

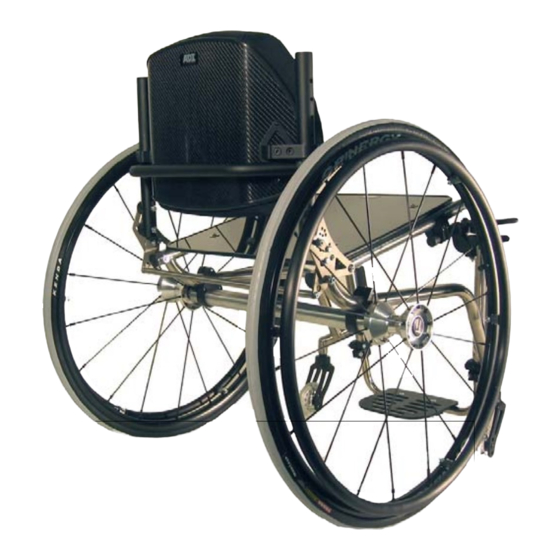

CARBON FIBER Seating

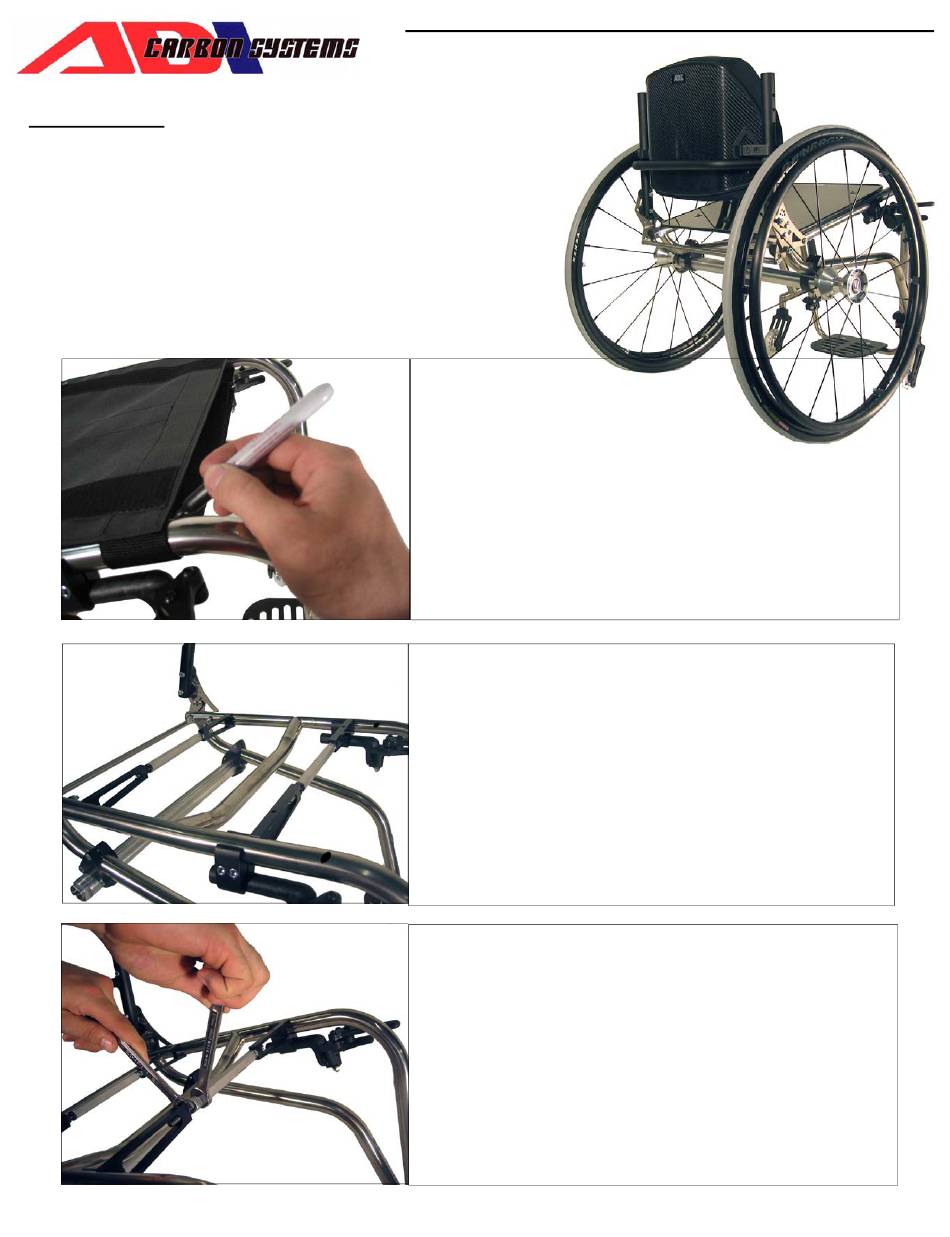

STEP 1.
Prior to removing OEM seat sling, mark left
and right chair frame at the front edge of the
OEM seat sling.
STEP 2.
Place the front support mount on the frame
approx. 2.5" inside the front edge of the origi-
nal seat base location that was marked.
STEP 3.
Place the rear support mount on the frame in
the approximate weight bearing location of the
user.
STEP 4.
Rotate center hex bar so that the support
mounts are "snug" within the frame tubes.
Do not over tighten causing flex to the frame.
STEP 5.
Place a board or straight edge across the
support mounts and take out any buckling.
STEP 6.
Tighten jam nuts with the ½" wrench.
-
Seat Base Installation Manual
page 1 of 4
11/2006
Advertisement
Table of Contents
Related Manuals for ADI Carbon Fiber Seat Base
Summary of Contents for ADI Carbon Fiber Seat Base
- Page 1 CARBON FIBER Seating Seat Base Installation Manual page 1 of 4 TOOLS NEEDED 2 each – 1/2” open end wrenches 1 each – 1/8” allen key 1 each – drill with 3/8” bit NOTE: For reference purposes support mounts come fully assembled.
- Page 2 CARBON FIBER Seating Seat Base Installation Manual page 2 of 4 STEP 7. Place carbon fiber seat base panel on chair frame and center the edges. STEP 8. In order to mount the seat base, you must first mark each hole location through the 10/32”...
- Page 3 ADI, 401 Isom Road, Suite 520 - San Antonio, Texas 78216 Contact Information If you have any questions concerning repairs or the proper care and use of your ADI product: Call TOLL-FREE 1-888-684-2234 Visit our website at www.adirides.com Accessible Designs, Inc.
- Page 4 The customer must send the product to ADI with the original sales ticket or other evidence of date of purchase, and pay all delivery costs. It must be sent to ADI, 401 Isom Road, Suite 520 - San Antonio, TX 78216. An original sales ticket is not required if the warranty registration card attached to this manual is completed, returned and is on file at ADI.
