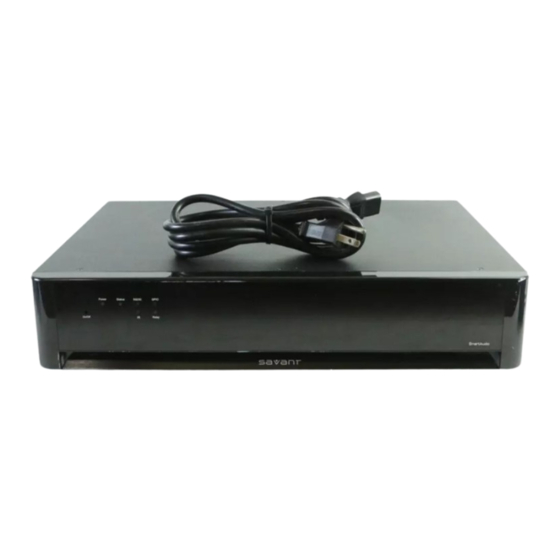

Savant SmartAudio SSA-3000 Quick Reference Manual

The Savant SmartAudio (SSA-3000) Quick Reference Guide provides all the steps necessary
to get the Savant SmartAudio Controller up and running.

Specifications

Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 80% RH (non-condensing)
Maximum BTUs 105 BTUs per hour
Cooling 5 cubic feet per minute (CFM) recommended
Height 3.5 in/8.9 cm
Width 17.3 in/44 cm
Depth 12.9 in/32.8 cm
Weight 14.25 lbs/6.5 kg
Input Power 100 - 240 VAC, 50/60 Hz, Max Current 3A, Fuse 250V, 2.5A Fast Acting
Nominal Input Power: 20W (40VA) for 120V AC, 60Hz (N. America)
Maximum Input Power: 30W (60VA) for 120V AC, 60Hz (N. America)
Nominal Input Power: 20W (50VA) for 230V AC, 50Hz (Europe)
Maximum Input Power: 30W (70VA) for 230V AC, 50Hz (Europe)
Safety and CSA NRTL/C and FCC Part 15 Class B
Emissions
RoHS Compliant
Install Kit
The standard install kit contains the following items:
Qty.2 071-0113-01 Rack Mounting Brackets
Qty.4 039-0034-00 Screws for Brackets
Qty.1 064-0079-00 AC Power Cord
Qty.2 028-9352-00 6 Position Connectors for IR ports
Qty.2 028-9351-00 3 Position Connectors for GPIO and Relay ports

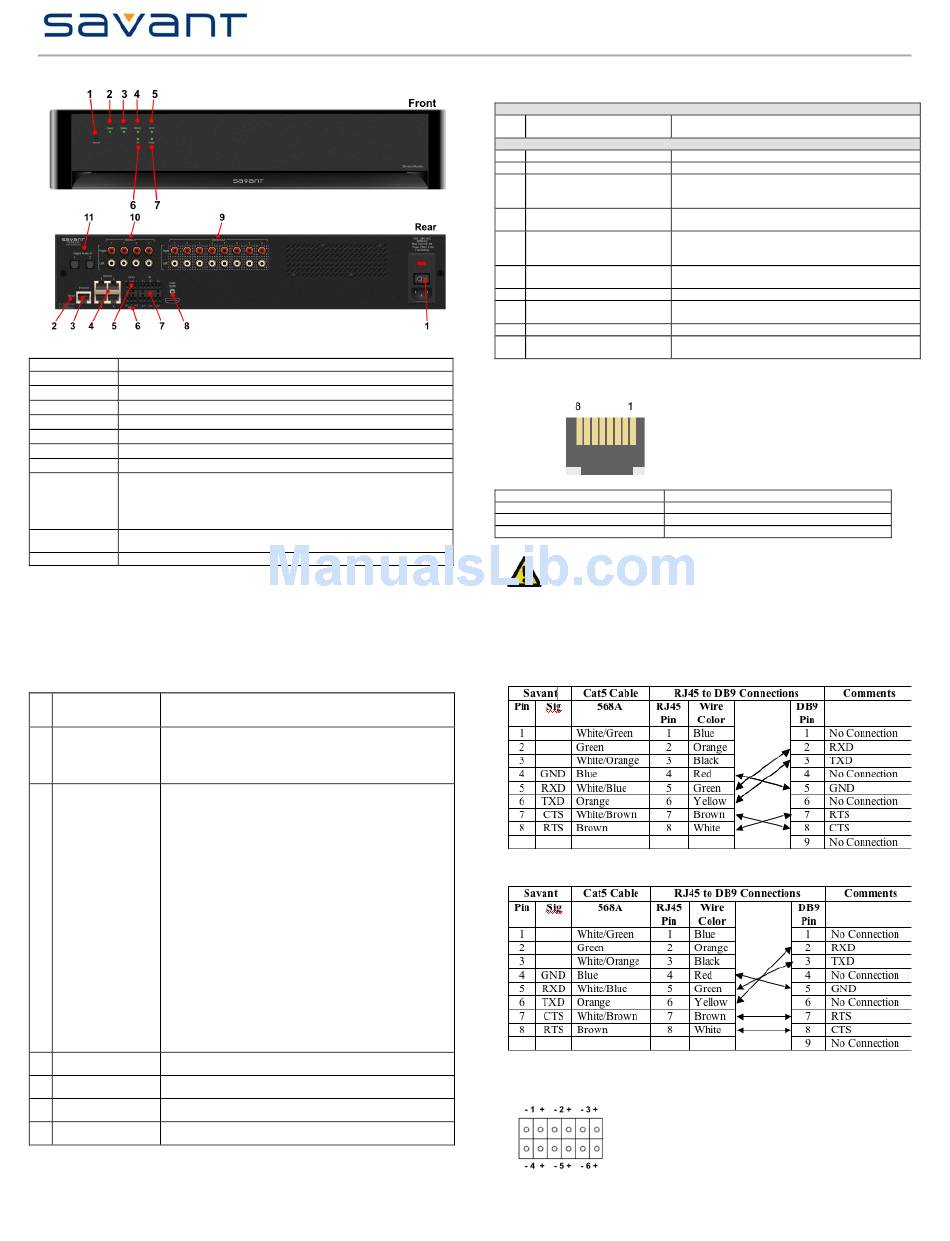

Front Panel

1 On/Off Button Used to power the Controller On and Off. The I/O power
•
switch on the back of Controller must be On (I) to enable
the Controller.
2 Power Bi-color LED Green indicates the system has adequate power and is
•
operating normally.
Red indicates the system is in stand-by mode. In standby
•
most of the Controller circuitry is powered down.
Off indicates that the system is getting no power.
•
3 Status Bi-color LED Green indicates the Host has established
•
communications with the embedded system.
Green flashing indicates the embedded system is ready
•
(running with DHCP IP address), but the Host has not
established communications with the embedded system.
Off indicates the embedded processor is resetting or is
•
powered up; and is booting the embedded firmware.
Red indicates the Host has determined the firmware
•
needs to be updated, but a problem occurred during the
process that will initiate a reset.
Red flashing indicates the embedded firmware is
•
running, but has not received a DHCP IP Address.
Amber indicates the Host is currently updating the
•
embedded firmware.
Amber flashing indicates the embedded system has a
•
valid link-local IP Address and is waiting to connect to the
Host.
Over Temperature or Hardware Failure
•
If the Controller over heats or has a hardware failure, the
Status LED indication will be interrupted every 3-seconds
with a solid red indication. For example, if the LED is
flashing green when an over temperature or hardware
failure occurs, the LED, in 3-second intervals, will flash
green, solid red, etc.
4 RS-232 LED Green indicates RS-232 serial port data activity.
•
Off indicates no RS-232 serial port activity.
•
5 GPIO LED Green indicates GPIO port signal activity.
•
Off indicates no GPIO port activity.
•
6 IR LED Green indicates IR port signal activity.
•
Off indicates no IR port activity.
•
7 Relay LED Green indicates Relay port signal activity.
•
Off indicates no Relay port activity.
•
SmartAudio (SSA-3000) Quick Reference Guide
Copyright © 2011 Savant Systems LLC. SAVANT® and RacePoint Blueprint™ are trademarks of Savant Systems LLC.
Savant LLC reserves the right to change product specifications without notice.
770 Main Street, Osterville, MA 02655, Phone 508.683.2500, Fax 508.683.2600, http://www.savantav.com
Rear Panel
Power
1 On/Off (I/O) switch Press the I/O switch on the back of Controller to
power the Controller to the On state.
Control
2 Reset button Press to reset the SSM-3100
3 Ethernet RJ-45 10/100 Base-T, auto-negotiating port
4 RS-232 1, 2, 3, 4 RJ-45 ports used to transmit and receive serial binary
data transmission. Ports 1 and 2 support flow control
Clear to Send / Ready to Send (CTS/RTS)
5 GPIO R, COM, 1 General Input and Output port (3-pin 3.81mm screw
down connector)
6 Relay NC, C, NO This port provides dry contacts (open/closed) to
(Normally Closed, Common, control devices requiring basic on/off operation. (3-pin
Normally Open) 3.81mm screw down connector)
7 IR 1, 2, 3, 4, 5, 6 Infrared transmitter output ports port (Two 6-pin
3.81mm screw down connectors)
8 Host HDMI Input port for external host (Mac mini)
9 Stereo Out 1, 2, 3, 4, 5, 6, 7, R and L (16) RCA jacks - audio output
8
10 Stereo In 1, 2, 3, 4 R and L (8) RCA jacks - audio input
11 Digital Audio In 1, 2 Input ports support TOSLINK to receive digital audio
signals
RS-232 Wiring
Controller RJ-45 (RS-232) Plug Pinouts
1 RX+ (Not Used for RS-232) 5 RXD (RS-232)
2 RX- (Not Used for RS-232) 6 TX-/TXD (jumper) -
3 TX+ (RS-232) 7 CTS (RS-232)
4 GND (RS-232) 8 RTS (RS-232)
Important
If you are using RJ-45 to DB-9 adapters not supplied by Savant be sure to terminate any wires
required for communication/control within the adapter. Cut all unused wires to prevent the
wires from shorting against each other. Ensure that all wires required for
communication/control are not terminated in the connecter. Also, ensure that these unused
wires are not shorting to each other, as they are still terminated in the RJ-45 connector on the
controller side.
RS-232 Cat5 Savant Controller to DB9 Connections (Straight)
RS-232 Cat5 Savant Controller to DB9 Connections (Null Modem)
IR Port Layout and Pinouts (2 - 6-pin 3.8mm screw down
connectors)
009-0312-01
Select TDX for RS-232
