Savant SmartAudio SSA-4000 Quick Reference Manual

The Savant SmartAudio (SSA-4000-00) Quick Reference Guide provides all the steps necessary
to install the SSA-4000 controller.
Box Contents
(1) SmartAudio (SSA-4000)
(1) Installation Kit (075-0144-xx)
(2) 1U Rack Mounting Brackets (071-0603-xx)
•
(4) Phillips Screws for Brackets (M3 x 8MM Flat) (039-0017-xx)
•
(2) 6-Pin Screw Down Plug in Connector (028-9352-xx)
•
(1) HDMI Locking Cable (3 feet) (CBL-3LHDMI-xx)
•
(1) Power cord C13, (6 feet) (N. America) (064-0079-xx) or appropriate international power
•
cord
(1) Quick Reference Guide (this document)
Required System Component
(1) Savant Host (HST-XXXX or SVR-XXXX)
Specifications
Environmental Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Cooling 3 cubic feet per minute (CFM) recommended.
Maximum BTUs 61 BTUs per hour
Dimensions and Weight Dimensions and Weight
Height 1.71 in/4.34 cm
Width 17.30 in/43.94 cm
Depth 8.69 in/22.08 cm
Weight 5.25 lb/2.38 kg (net weight) 7.8 lb/3.54 (shipping weight)
Rack Space 1U
Power Power
Input Power 100-240V AC, 50/60 Hz, (1.8 Amp maximum)
Nominal Power 12 watt
Maximum Power 18 watt
Compliance Compliance
Safety and Emissions FCC Part 15 | S Mark | CE Mark | C-Tick
RoHS Compliant
2 3 4
1
5
6 7 8

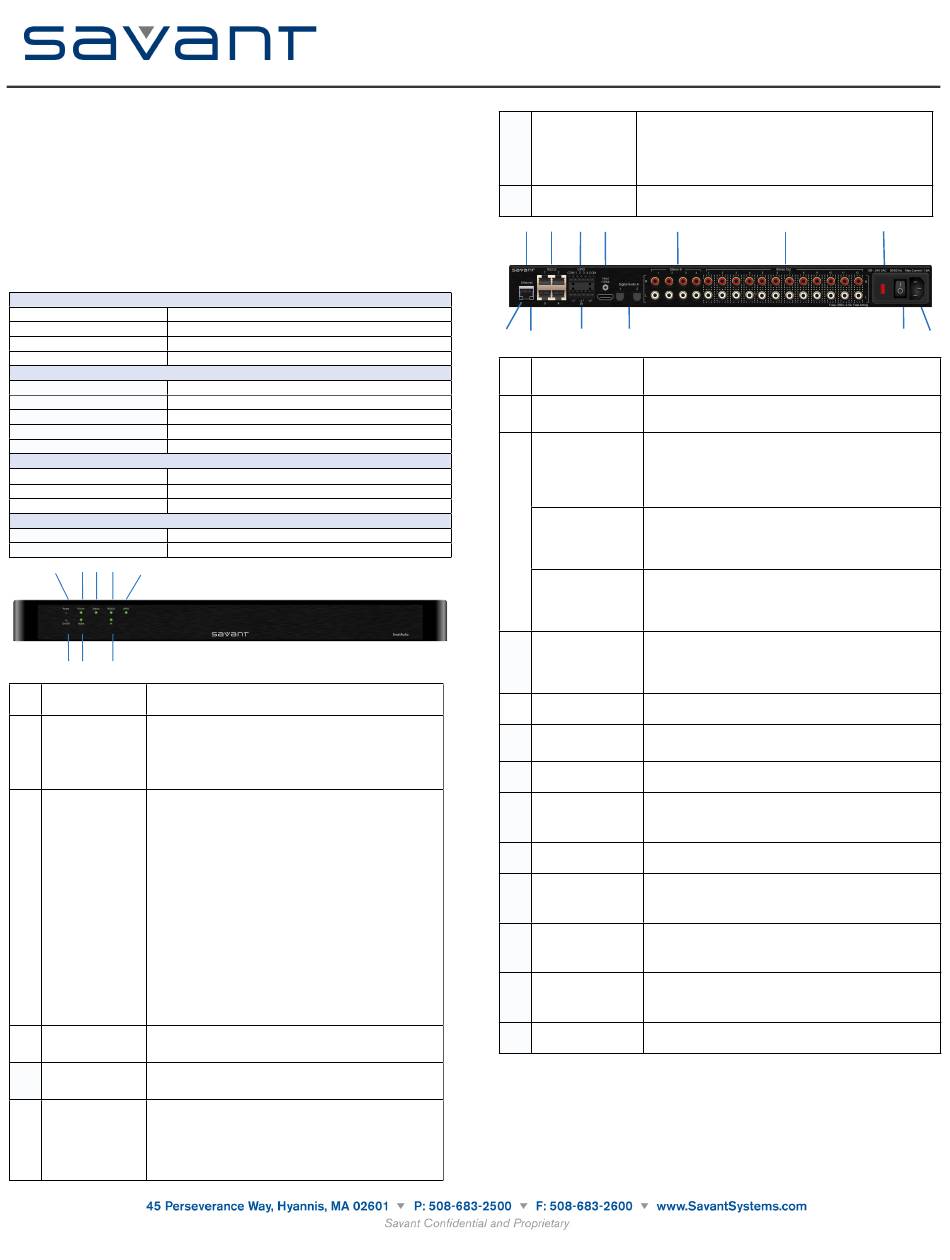

Front View of SSA-4000
1 Reset button (hole) Resets Static IP address. Press and hold.
Green indicates the system has adequate power and is
operating normally.
2 Power Bi-color LED Red indicates the system is in stand-by mode. In standby
most of the Controller circuitry is powered down.
Off indicates that the system is getting no power.
Green indicates the Host has established communications
with the embedded system.
Green flashing indicates the embedded system is ready
(running with DHCP IP address), but the Host has not
established communications with the embedded system.
Off indicates the embedded processor is resetting or is
powered up; and is booting the embedded firmware.
Red indicates the Host has determined the firmware needs to
be updated, but a problem occurred during the process that
will initiate a reset.
Red flashing indicates the embedded firmware is running, but
3 Status Bi-color LED
has not received a DHCP IP Address.
Amber indicates the Host is currently updating the embedded
firmware.
Amber flashing indicates the embedded system has a valid
link-local IP Address and is waiting to connect to the Host.
Hardware Failure
If the Controller has a hardware failure, the Status LED
indication will be interrupted every 3-seconds with a solid red
indication. For example, if the LED is flashing green when a
hardware failure occurs, the LED, in 3-second intervals, will
flash green, solid red, etc.
Green indicates RS-232 serial port data activity.
4 RS-232 LED
Off indicates no RS-232 serial port activity.
Green indicates GPIO port signal activity.
5 GPIO LED
Off indicates no GPIO port activity.
Insert pin into hole for about 5 seconds to place in standby
mode. The Power LED turns red. Insert the pin again for about
1 second to take system out of standby mode. The I/O power
6 On/Off button (hole)
switch on the back of Controller must be On (I) to enable this
function. To turn the power off for the entire system, use the
switch on the rear panel.
Savant SmartAudio
Quick Reference Guide
5
Document based upon target specifications. Specifications subject to change prior to final product release.
(SSA-4000)
7 HDMI LED
8 IR LED
1 2 3 4
8
9
10
Rear View of SSA-4000
1 Ethernet
2 RS232/422/485 (1-4)
GPIO (1-4)
3 3 3
GPIO Input
GPIO Output
4 Host HDMI (1)
5 Stereo In
6 Stereo Out
7 Fuse
8 Link/Activity LED
9 Ethernet Speed LED
10 IR (1-3)
11 Digital Audio In
12 I/O
13 Input Power
HDMI Link between the Host and the SSA-4000.
Green indicates the external host is connected to the Host
HDMI port.
Off indicates the external host is not connected to the Host
HDMI port.
Green indicates IR port signal activity.
Off indicates no IR port activity.
5 6
11
RJ-45 10/100 Base-T, auto-negotiating port with Link/Activity
and Speed LEDs.
RJ-45 ports used to transmit and receive serial binary data
transmission. input
General Purpose Input and Output ports. Uses 6-pin screw-
down connector.
The digital GPIO ports are binary I/O ports used for contact
closure, trigger (output), or detect (input). The COM pin is
used for common ground. Pin 1 - 4 is used for input or output.
When configured as an input, the port detects a voltage
present (GPIO input). GPIO inputs can safely detect the
presence of a voltage 0-30V DC with a threshold of
approximately 2.4V DC.
When configured as an output, a GPIO port outputs a voltage
below 12V DC. The maximum current per port is 150
milliamps. The combined maximum current for all GPIO
outputs is 550 milliamps. An overcurrent condition shuts down
the output if that number is exceeded.
HDMI Host Audio Input port with locking HDMI connector.Used
for receiving up to 4 PCM streams (iTunes®) from the Host
(such as HST-4501).
4 Analog Audio Inputs (4 Right and Four Left)
12 Stereo line-level audio outputs (12 Right and 12 Left RCA
jacks)
100-240V, 2.5A—Fast acting fuse. This is field-replaceable.
Green indicates an Ethernet link has been established.
Green flashing indicates Ethernet activity.
Off indicates an Ethernet link has not been established.
Green indicates an Ethernet speed of 100 Mb.
Infrared transmitter ports. Uses 6-pin screw down connector.
(3.81mm each).
Receives stereo PCM signal from TosLink digital audio
connection.
On/Off switch -
I is used to power the controller to the On state.
O is used to power the controller to the Off state.
100-240V AC, 50/60 Hz, 1.8 Amp
009-0870-00
SSA-4000-00
7
13
12
