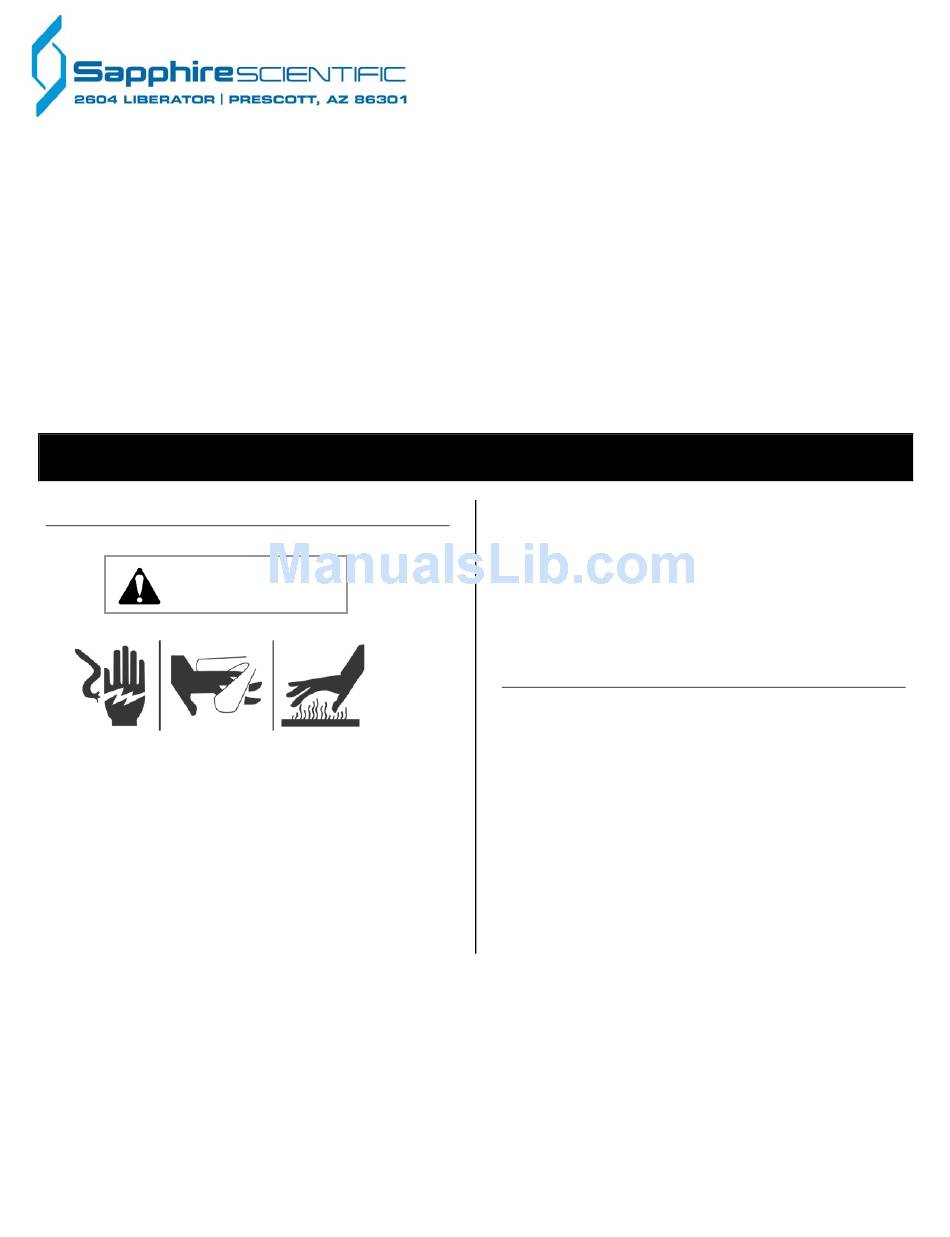

HOSS 700 Rotary Cleaning Tool
Sapphire Scientific • Sales: 866-445-3030 • Technical Support: 866-445-3030.
Congratulations on your purchase of a HOSS 700 Rotary Cleaning Tool from Sap-
phire! With a durable design and innovative cleaning features, the HOSS 700 makes
carpet cleaning easier, more effective and more profitable.
R E A D A N D S A V E T H E S E I N S T R U C T I O N S
SAFETY INSTRUCTIONS
WARNING
WARNING! Electric shock hazard, rotating parts, hot
surface hazards. Unplug unit before opening cover
for cleaning or servicing. Unit must be properly
grounded.
• Inspect the power cord before use. If cord is dam-
aged, do not use. Always grasp the plug (not the
cord) to unplug.
• The unit must be operated on a 110V/60Hz circuit.
• Keep motor and wiring dry.
• Do not operate in standing water
49-075C 2011-07 Warranty 49-071
Owner's Manual
Patents pending
• Do not operate in rain or snow. If electrical compo-
• Do not attempt to repair the unit. For technical sup-
NOTICE: Protect from freezing during storage and
transport. Damage caused by freezing is not covered by
the product warranty.
INTRODUCTION
The HOSS 700 Rotary Cleaning Tool greatly improves
cleaning performance and efficiency on a wide variety of
carpet types.
• High-flow solution orifices and high efficiency va-
• ½ HP 1725 RPM motor
• Sealed low-maintenance gear box
• 6 in. non-scuffing wheels for easy transport
• Fully adjustable handle for maximum operator com-
1
nents become wet, allow them to dry before using.
port, call Sapphire at 866-445-3030.
cuum plates
fort and control
Sapphire Scientific
Advertisement
Table of Contents
Related Manuals for Sapphire Audio HOSS 700
Summary of Contents for Sapphire Audio HOSS 700
-
Page 1: Safety Instructions
Owner’s Manual Sapphire Scientific • Sales: 866-445-3030 • Technical Support: 866-445-3030. Congratulations on your purchase of a HOSS 700 Rotary Cleaning Tool from Sap- phire! With a durable design and innovative cleaning features, the HOSS 700 makes carpet cleaning easier, more effective and more profitable. -
Page 2: Parts Identification
PARTS IDENTIFICATION IMPORTANT: The HOSS 700 is shipped with the handle and electrical cord unat- tached. Attach these items before using. See “Handle Installation Instructions,” p. 4. Figure 1 A. Handles. B. Solution control lever. Squeeze to start solution flow. - Page 3 PARTS IDENTIFICATION (cont.) Figure 3 N. Solution orifices (×5). May be removed with a ⅜ in. socket or nut driver for cleaning or replacement. Align rotor with Access Notch P in housing to access each orifice. Q. Vacuum feet Q (×5). May be removed for cleaning or replacement. Fig.
- Page 4 HOSS 700 Assembly Instructions IMPORTANT! Complete these steps before using the HOSS 700 for the first time. Tools required: • Pliers • Phillips head screwdriver • ¼ in. ratchet • Two 9/16 in. wrenches. 1. Slide the handle brace to the center of the axle and attach E clip A retaining ring to the axle.
- Page 5 3. Attach handle brace to handle assembly. Place flat washer H and rubber washer G on the threaded shaft of knob F as shown. Insert knob F through slot in han- dle and thread into T-bracket J. 4. Attach the blue solution line K to the top of vacuum inlet cap M.
- Page 6 5. Insert nut, rubber gasket and retainer ring as shown over the end of the power cord. Start with the black wire, then the white wire, then the green wire. After in- serting the wires, reseat the rubber gasket against the retainer ring.
-
Page 7: Operation
1. Turn on the carpet cleaning extractor vacuum and the handles at hip height. solution pump. 2. Attach vacuum hose to vacuum outlet. The HOSS 700 2. Start the flow of solution first. Grasp handles firmly is fitted with a 2 in. O.D. vacuum outlet, Fig. 1, F. -
Page 8: Maintenance
Monthly Cleaning and Operational Tips Clean exterior housing. To maintain appearance, wipe Do not operate the HOSS 700 on dry carpets, as this exterior surfaces with clean with a damp cloth. may damage carpet fibers. Check solution valve. Check for leaks and replace Do not operate the HOSS 700 on hard surfaces, as seals as necessary. -
