  • Page 1 Check Weigher Scales CW Series...

  • Page 2: Specifications

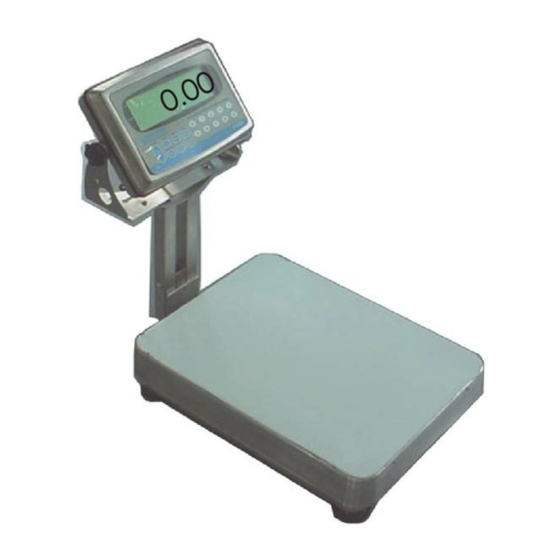

    INTRODUCTION All scales come complete with an easy to clean stainless steel top and base cover, and a large LCD display that is easy to read. The keyboard has 17 easy to use function keys: ON/OFF, MODE, GROSS/NET, ZERO, TARE, CALL, SET, and 0~9. With the standard AC adapter included and the facility for batteries, the scales can be used in a fixed location or as a portable scale.

  • Page 3: Function Keys

    FUNCTION KEYS Description: 1. ON/OFF: Switch on / Switch off 2. MODE: Toggle between weight units mode and counting mode 3. ZERO: Press this key to return to zero. (Full capacity 2%) 4. CALL: 1) Press numerical key (0~9) firstly, then press the CALL button to call out stored checking weight value.
  • Page 4 COUNTING PROCEDURE 1. Press MODE key to enter into counting mode, the display will show as below: 2. Under counting mode, press SET key to reach the desired sampling quantity. Note: 1) There are four counting modes: 10pcs, 25pcs, 50pcs, 100pcs (Press SET key once to choose “10 pcs”;...
  • Page 5 3. Key in the desired upper check weight, and press SET key. The checkweighing setup process is finished. The device is under checkweighing mode 4. In the left bottom of LCD shows the checkweighing sets (up to 1 ~ 10 sets) Load weight on platform.

  • Page 6: Set Functions

    SET FUNCTIONS The scale can be set as desired for the user. Press SET key for 3 seconds to enter setting function mode. The scale will go into the following SET MODE: Ps. CALL key means “select” SET key means “confirm” Advance to in order to exit the menu.
  • Page 7 Description: : Capacity mode Mode Division CW_15 15.0050 CW_30 30.010 CW_60 60.020 CW150 150.050 : Weight unit (kg, lb, lb:oz) : Division : Auto off time (120 sec/180 sec/240 sec/300 sec/off) : Calibration Weight (full capacity, 1/2 of full capacity, 1/4 of full capacity) : Calibration weight unit (kg/lb) : Counting mode : Trade...

  • Page 8: Calibration Procedure

    CALIBRATION PROCEDURE START Press and hold the SET key for 3 seconds to enter into the setting function mode. Press CALL key to select , and then press SET key to enter Press CALL key to choose calibration weight (full, 1/2 or 1/4). Press SET key to confirm the calibration weight and exit the mode.
  • Page 9 The operator can choose full capacity, 1/2 or 1/4 of full capacity to calibrate: 1. Full capacity CALIBRATION CALIBRATION Span range CAPACITY WEIGHT (KG) WEIGHT (LB) 15Kg 10Kg 20Lb 80000~120000 30Kg 20Kg 40Lb 80000~120000 60Kg 50Kg 100Lb 100000~150000 150Kg 100Kg 200Lb 80000~120000 2.

  • Page 10: Error Message

    ERROR MESSAGE 1.Low Battery - If this message is displayed, it indicates that the battery needs to be replaced. Solution: Replace the battery or plug in the AC adaptor for operations. 2.Below Zero - The scale senses a weight value that is less than the allowable limit.
  • Page 11 5. Power on zero count over calibration zero +10%. Solution: Turn the scale off and then back on. 6. Power on zero count under calibration zero -10%. Solution: Turn the scale off and then back on.
