Summary of Contents for Carrier 42PQV

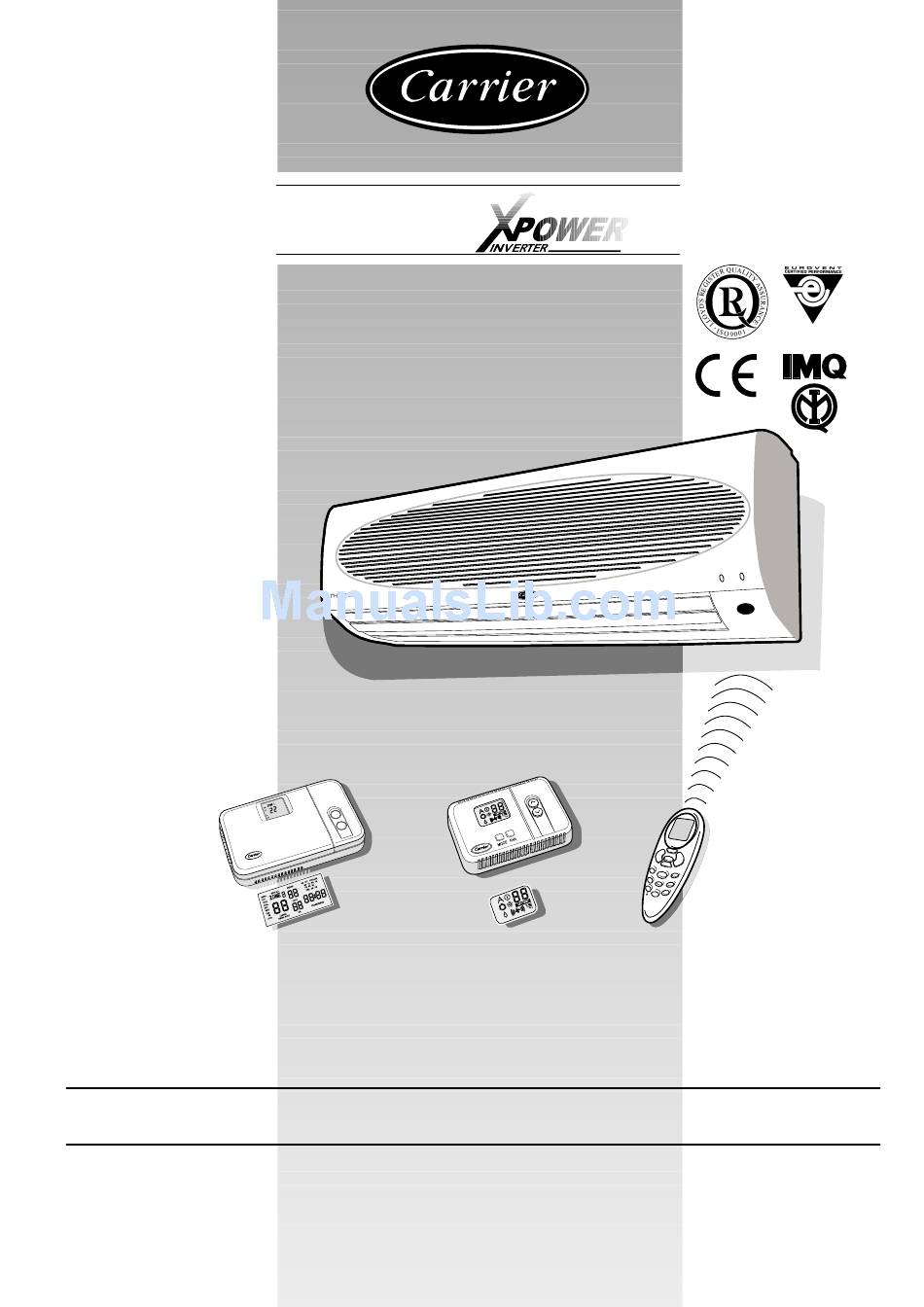

- Page 1 42PQV INSTALLATION MANUAL...
-
Page 2: Table Of Contents

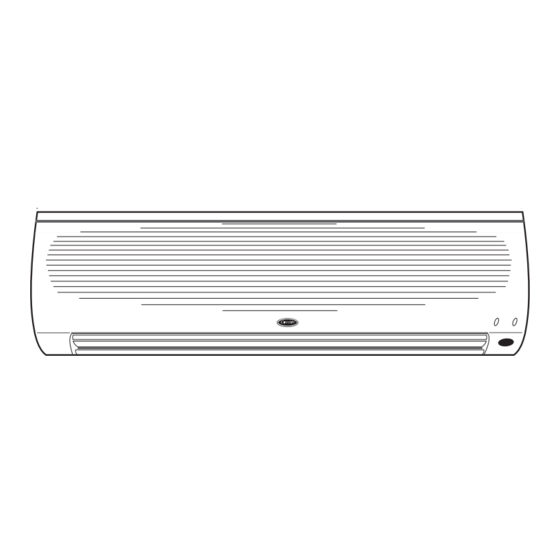

Split system “Hi-Wall” indoor unit IR Remote Control “Room Controller” “Zone Manager” The unit can be used with infrared Remote Control, with the Carrier “Room Controller” or “Zone Manager”. Infrared control installation instructions are contained in the unit instruction and maintenance manual. -
Page 3: Dimensions And Weight
42PQV Dimensions and weight Mod. 42PQV050 / 42PQV080 1080 Table I: Nominal data ELECTRIC POWER INPUT • Unit is not suitable for operation in laundry premises. Heat pump • For sizing of power supply wires and delay type fuses, Cooling Heating refer to the outdoor unit installation instructions. -
Page 4: Minimum Clearances
42PQV Minimum clearances (mm) E N G L I S H min. min. min. 1900 min. Obstacle Table lIl: Material supplied The following installation accessories are supplied with unit. Use them as required. Name and shape Q.ty Wall hanging bracket... -
Page 5: General Information
Carrier. Consult the factory or a qualified system engineer prior to • Consider using an area where installation is easy. -
Page 6: Warnings: Avoid
42PQV Warnings: avoid… E N G L I S H Exposure to direct sunshine, when unit is operating in cooling Any obstruction of the unit air outlet or return. mode; always use shutters or shades. Positions too close to heating sources which may damage the unit. -
Page 7: Installation
42PQV Installation • The piping can be connected in the four ways indicated by • Before installing the wall hanging bracket, remove it from the unit by pushing at the indicated parts at the bottom of the body. When the piping is connected to points , remove •... - Page 8 42PQV Installation E N G L I S H Routing the drain hose and refrigerant piping Wall hanging bracket • Tie together the refrigerant pipe, the drain hose, and the Hook Hole electrical connection cord. • Route the refrigerant piping in the required direction, and bind the drain hose and the electrical connection cord together with fastening tape.
-
Page 9: Refrigerant Connections
42PQV Refrigerant connections Refer to the outdoor unit installation manual for tube sizing, and limitations (slope, length, number of bends allowed, refrigerant charge, etc.). Tubing diameter Liquid Model (Suction) (Discharge) (inches) (inches) 42PQV050 12.70 1/2" 6.35 1/4" Lubricate the tube end and thread of the flare fitting with anti- freeze oil. -
Page 10: Check
42PQV Check E N G L I S H Use of additional screws After installation, if there is a significant gap between the unit and wall, it can be adjusted by securing the body to the wall hanging bracket using 2 screws. -
Page 11: Electrical Connection
42PQV Electrical connection Indoor unit wiring IMPORTANT: • Make refrigerant connections before electrical connections. When disconnecting, disconnect electrical connections before refrigerant connections. • Make ground connection prior to any other electrical connections. • Make electrical connections between units prior to proceeding to mains supply unit connection. -
Page 12: Operating Test, Address Selector
42PQV Operating test, address selector and fault code E N G L I S H Operating test • LOOK OUT! Whichever configuration value changed must be transmitted to the indoor unit pressing button each time. • Perform the operating test after the units have been installed in •... -
Page 13: Guide For The Owner
42PQV Fault code and guide for the owner Table VI: Fault code Guide for the owner Code Description When installation and tests are completed explain the Operation Condensate Pump Failure or water drain Failure and Maintenance Manual to the owner, with particular attention to... - Page 14 42PQV... (IOM) Via R. Sanzio, 9 - 20058 Villasanta (MI) Italy - Tel. 039/3636.1 The manufacturer reserves the right to change any product specifications without notice. June, 2004. Supersedes April, 2004. Printed in Korea...
