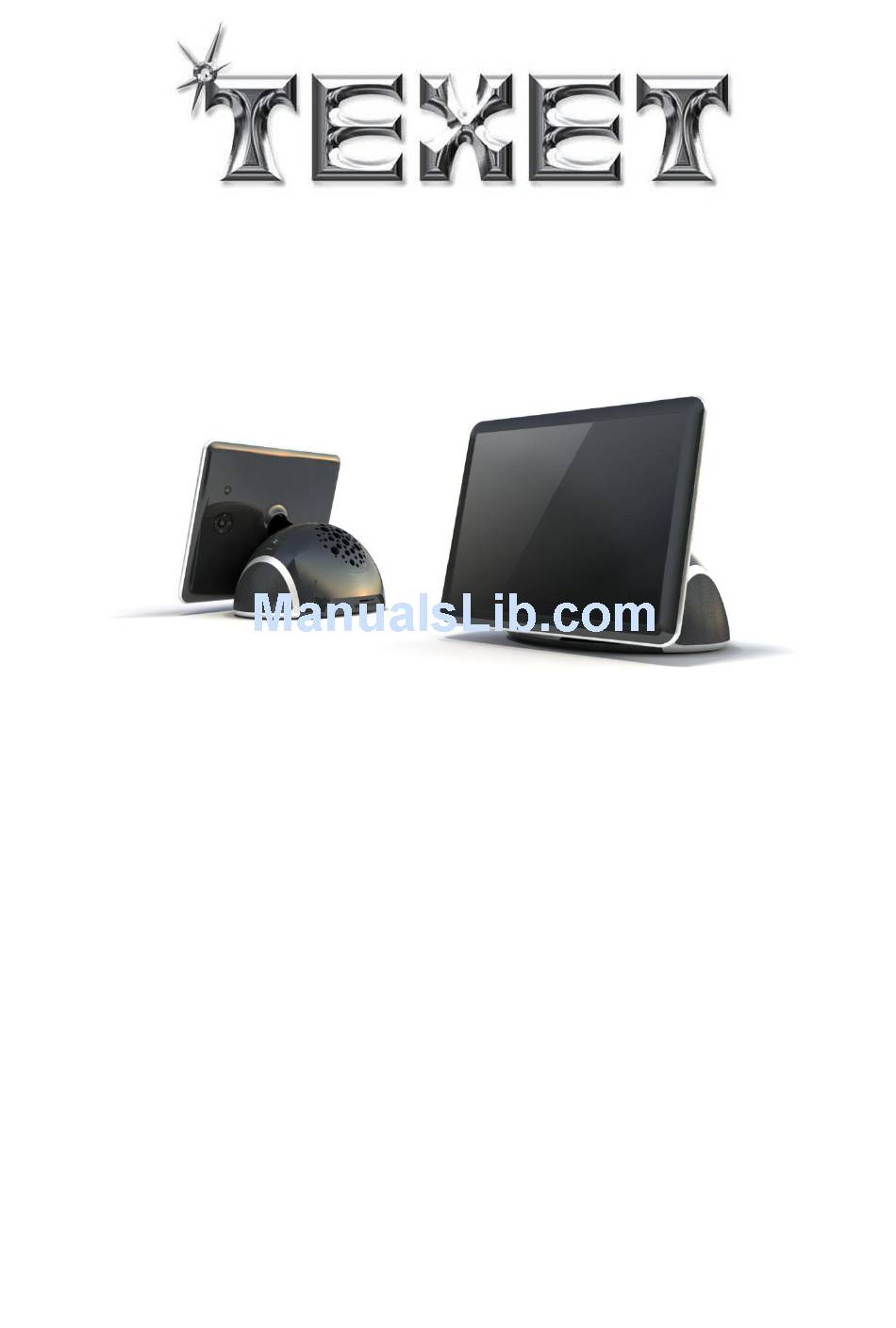

- Page 1 User Manual DPF-830 Please read these instructions before use and retain for future reference...
-
Page 2: Table Of Contents
9. RECYCLING ELECTRICAL PRODUCT-----------------------------------------------------------17 For further information on the TEXET range, please refer to www.texet.com We would like to thank you for your purchase of the Texet DPF-830. The user manual should be thoroughly read to understand all functionality of the Texet DPF-830. -
Page 3: Safety Precautions
1. SAFETY PRECAUTIONS FOR HOUSEHOLD AND INDOOR USE ONLY PLACE THE APPLIANCE ON A FLAT, STABLE SURFACE WITH ADEQUATE VENTILATION AND AWAY FROM OTHER SOURCES OF HEAT. MINIMUM DISTANCES AROUND THE APPLIANCE FOR ADEQUATE VENTILATION IS 5CM. DO NOT COVER OR RESTRICT VENTILATION OPENINGS. ... -
Page 4: Introduction
2. INTRODUCTION 2.1. Panel control Back button Up button Left button Down button Right button Power button Aux in jack DC in jack USB port 10 SD/MMC/MS card reader jack 11 Mini USB jack 12 Enter/play button 2.2. e control 1. -
Page 5: Selection Mode And Reading Of Files
3. SELECTION MODE AND READING OF FILES If there are no cards, please Insert the card / usb and it will show you the inserted card / usb as below picture. Example： 3.1. Select Photo Select CARD/USB by pressing buttons and then confirm by ENTER. 3.2. -
Page 6: Personal Adjustment
4. PERSONAL ADJUSTMENT 4.1. Enter Setup mode Select SETUP from Main menu by pressing buttons and then confirm by ENTER. 4.1.1. Language Select LANGUAGE by pressing the button and then confirm by ENTER. Select your language, and then confirm by ENTER. Exit the menu by RETURN button. -
Page 7: Transition Effect
4.1.3. Transition effect Select TRANSITION EFFECT by pressing the Vol+ Vol- button, then press ► button to select transition effect. And then confirm by ENTER. Exit the menu by RETURN button. 4.1.4. Music repeat mode Select MIUSIC REPEAT MODE by pressing the Vol+ Vol- button, then press ► button to select music repeat mode and then confirm by ENTER. -
Page 8: Movie Repeat Mode
4.1.5. Movie repeat mode Select MOVIE REPEAT MODE by pressing the Vol+ Vol- button, then press ► button to select movie repeat mode and then confirm by ENTER. Exit the menu by RETURN button. 4.1.6. Display mode Select DISPLAY MODE by pressing the Vol+ Vol- button, then press button to select display mode and then confirm by ENTER. -
Page 9: Start Up Mode
4.1.7. Start up mode Select START UP MODE by pressing the Vol+ Vol- button, then press button to select start up mode and then confirm by ENTER. Exit the menu by RETURN button. 4.1.8. Time Select TIME(DATE & TIME) by pressing the Vol+ Vol- button, then press button to select the date and time, press the Vol+ Vol- button to set, and then confirm by ENTER. -
Page 10: Power Off
4.1.9. Auto power off Select POWER OFF by pressing the Vol+ Vol- button, then press button to select the hour of minute, press the Vol+ Vol- button to set, and then confirm by ENTER. Exit the menu by RETURN button. 4.1.10. -
Page 11: Alarm
by ENTER. Exit the menu by RETURN button. 4.1.11. Alarm Select ALARM by pressing the Vol+ Vol- button, then press button to select the time, ring type and alarm on/off, press the Vol+ Vol- button to set, and then confirm by ENTER. Exit the menu by RETURN button. 4.1.12. -
Page 12: Tft Contrast
4.1.13. TFT Contrast Select TFT Contrast by pressing the Vol+ Vol- button, then press button to select the Contrast of TFT screen and then confirm by ENTER. Exit the menu by RETURN button. 4.1.14. TFT Saturation Select TFT Saturation by pressing the Vol+ Vol- button, then press button to select the Saturation of TFT screen and then confirm by ENTER. -
Page 13: Load Default
4.1.15. Load Default Select DEFAULT by pressing the Vol+ Vol- button, then confirm by ENTER. Exit the menu by RETURN button. Notice：Load Default will lose all your PERSONAL ADJUSTMENTS. 5. CALENDAR MODE When you are at the main MENU, select CALENDAR, and press ENTER to activate the date and hour function. -
Page 14: Movie, Music, Photo Menu
Press ENTER to enter calendar with picture mode. 6. MOVIE, MUSIC, PHOTO, FILES MENU Select the supported Storage (SD/MMS/MS/XD USB) by pressing the buttons and then confirm by ENTER. 6.1. MOVIE Select MOVIE by pressing the buttons and then confirm by ENTER, then... - Page 15 select the supported movie files to play by Vol+ Vol- button, play by enter. 6.2. MUSIC Select MUSIC by pressing the buttons and then confirm by ENTER, then select the supported music files to play by Vol+ Vol- button, play by enter. 6.3.
- Page 16 Notice: Also, you can use remote control to choose MUSIC MODE or VIDEO MODE and the SLIDESHOW to start playing music or movie and the SLIDESHOW functions. 6.4. FILES Select FILES by pressing the or buttons and then confirm by ENTER. Then select the supported files to edit by Vol+ Vol- button, press to choose, you can also choose the other files by press...
-
Page 17: Help In Case Of Problems
7. HELP IN CASE OF PROBLEMS If the photo frame does not function correctly, you need to read the following information carefully. Before requesting for technical assistance, you need to verify the following matters: Failure symptom Probable cause and possible solution No power supply If there is no power supply, verify that the photo frame is well connected to its power supply block and if the latter is... -
Page 18: Recycling Electrical Product
Supported file format: .JPG, AVI, MP3, MP4, DIVX,WMA. Acceptable photo cards: MS, MS Pro, MMC, SD, XD, USB2.0, Mini USB. USB ports: USB 1.1 and USB 2.0 Power supply: AC 110V-240V~60/50Hz (DC 9V2A) Max power consumption: 15 W Disposition: placed or suspended Dimensions (with frame): 260(L) x 230(W) x 244(H) mm Weight: 1016 g 9.
