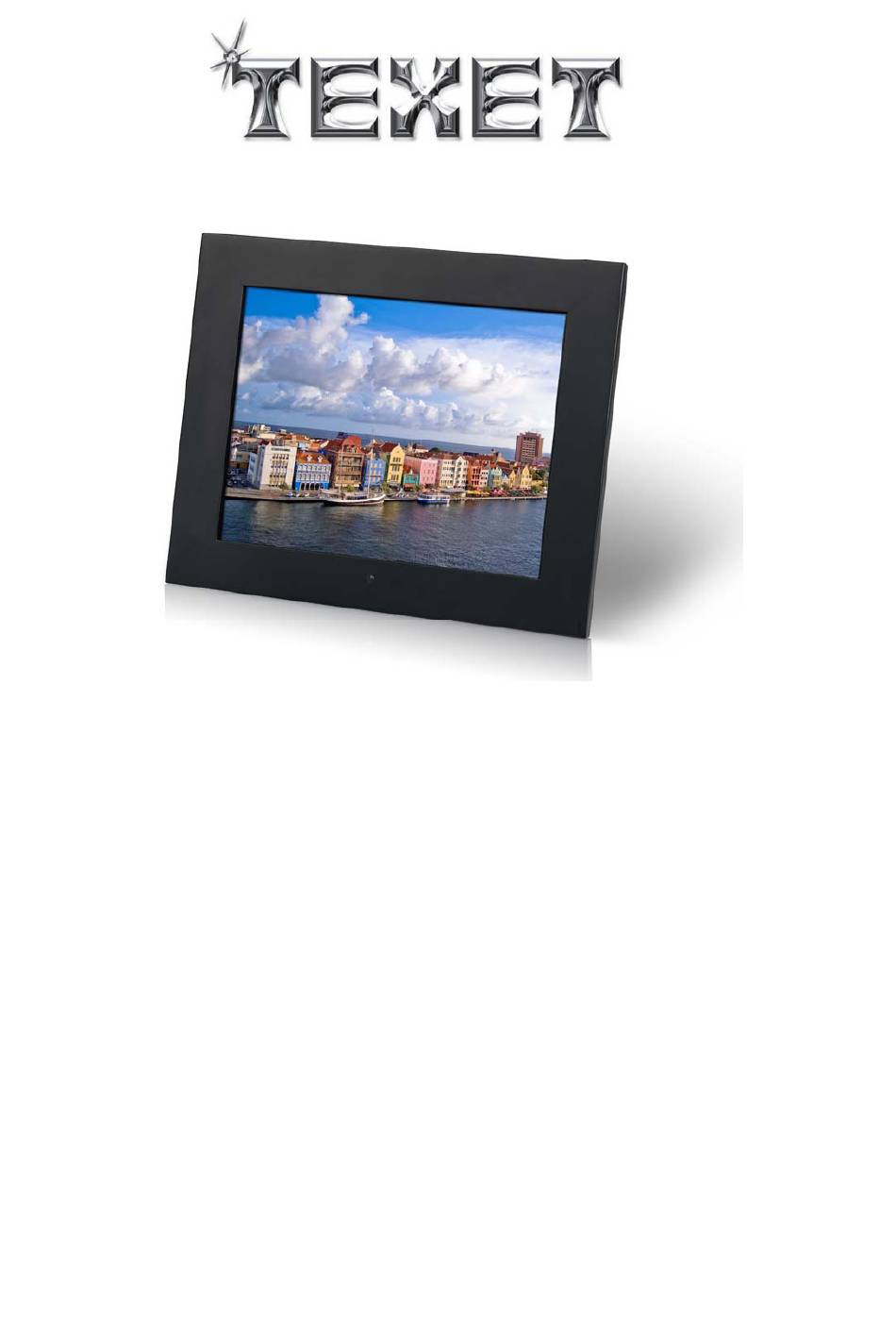

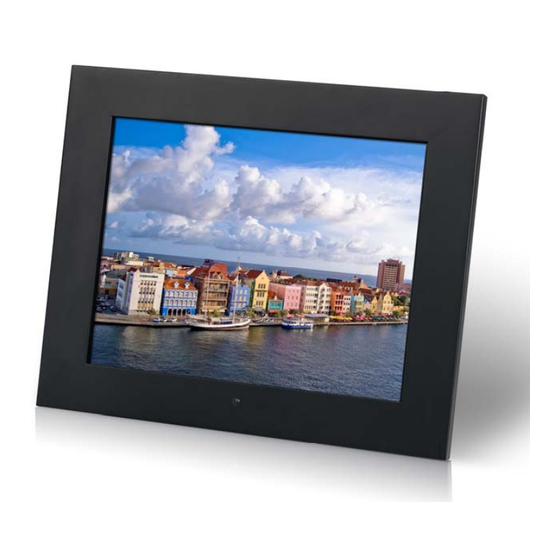

- Page 1 10.4 INCH MULTIMEDIA DIGITAL PICTURE FRAME User Manual DPF- 1007 Thanks for purchasing TEXET’S Digital Photo Frame (DPF-1007), please read this manual carefully before using the machine and retain it for future reference.
- Page 2 SAFETY PRECAUTIONS Thanks for purchasing our digital photo frame DPF-1007. Before operating this player, please read this manual and retain it for future reference. This symbol is intended to alert the user of the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to a person.
- Page 3 SAFETY PRECAUTIONS Thanks for purchasing our digital photo frame. Before operating this player, please read this manual and retain it for future reference. Warning To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. To avoid electric shock, do not touch the plug with moist or wet hands.
-
Page 4: Table Of Contents
Viewing Pictures……………………………………………………………………………….13 Watching video………………………………………………………………………………...16 Listening to MP3 music……………………………………………………………………….19 File Management………………………………………………………………………………21 Playing a slideshow with music………………………………………………………………21 Copying and Deleting Files……………………………………………………………………23 Using the SETUP option………………………………………………………………………….25 Technical Support…………………………………………………………………………………26 Frequently asked questions…………………………………………………………………..26 Specifications…………………………………………………………………………………28 For further information on the TEXET range, please refer to www.texet.com... -
Page 5: Introduction
Introduction Congratulations on your purchase of TEXET Digital Picture Frame, model DPF-1007 Before operating the unit, please read this manual thoroughly, and retain it for future reference. This manual will help you use many of the exciting and useful features that will make your Digital Picture Frame viewing more enjoyable. -
Page 6: Getting Started
Getting Started Package Contents Digital Picture Frame User Manual AC/DC Adapter Remote control USB Cable... -
Page 7: Installing Your Unit
Installing your unit Open the package and remove the protective foam. Remove the protective sleeve from the unit. Install the Digital Picture Frame stand as the back of the unit. Plug in the AC adapter into power outlet. Plug the other end into the unit. After the content is stored on the target flash media;... -
Page 8: Operation
Operation This Digital Frame is extremely easy to operate: 1. Remove memory card from camera: 2. Insert memory card into the frame with face away from the unit: 3. The digital photo frame is ready for use:... -
Page 9: Controls
Controls 1. Up 5. Right 2. Down 6. Exit 3. Enter 4. Left... -
Page 10: Using Your Remote Control
Using your Remote Control The following table briefly describes the remote control functions Button Description On/Off Switch on/off the frame Mode Photo/Audio/Video Mode Switch Vol - Decrease volume Vol + Increase Volume Slideshow Start the slideshow Display the picture menu Menu Display the main menu Rotate... -
Page 11: Inserting Memory Cards
Inserting Memory Cards The Digital Picture Frame is compatible with the following memory cards: Secure Digital Card (SD) MultiMedia Card (MMC) Memory Stick CompactFlash (CF) Card XD Picture Cards Insert the memory card with the front label facing AWAY from you. Do not force the memory card into the memory slot. -
Page 12: Main Menu
Main menu Upon turning on the Digital Picture Frame, you will go straight to the MENU screen. To set the Auto Start feature Choose the SETUP screen. Use the left/right arrow to go to the “Set up”. Press Enter button to enter the options screen. Use the Up / down arrows to choose your auto start option. -
Page 13: Viewing Pictures
Viewing Pictures Make sure you have at least one picture on your memory card or your USB flash drive. When this is done: Select the desired flash media on main menu. (SD/xD/CF/MS/USB/NAND-Internal Memory) Select the “PHOTO” option from the menu and press “ENTER” A Photo thumbnail will appear. - Page 14 Otherwise press Enter to enter the full screen photo (pause mode) and press Play to enter into slideshow mode. Once a slideshow is playing or a picture is being shown, press the OSD button. The following menu will appear:...
- Page 15 Previous Play previous picture in the picture list Play or Pause Play or pause the current slideshow. Next Play next picture in the picture list Rotate Use the rotate function to change the picture orientation to either portrait or landscape. Stop Stop slideshow and return to photo thumbnail.
-
Page 16: Watching Video
Watching video The Digital Picture Frame supports the following video formats: Motion JPEG (avi): video format used by most digital cameras MPEG 4 Make sure you have at least one video on your memory card or your USB flash drive. When this is done: Select the desired flash media on main menu. - Page 17 Once a movie is playing, press the OSD button on the remote control. The following menu will appear:...
- Page 18 Previous Play previous movie in the play list Fast Forward Play forward the movie by 2/3/4 times speed. Play or Pause Play or Pause the movie. Fast Backward Play backward the movie by 2/3/4 times speed. Next Play next movie in the play list Stop Stop the movie and return to the playlist Zoom...
-
Page 19: Listening To Mp3 Music
Listening to MP3 music Make sure you have at least one MP3 file on your memory card or your USB flash drive. When this is done: Select the desired flash media on main menu. (SD/xD/CF/MS/USB/NAND-Internal Memory) Select the “MUSIC” option from the menu and press “ENTER” A list of music files will be listed on the left side of the screen. - Page 20 Press VOL+ to increase the volume or VOL- to decrease the volume. Press Play/Pause button on remote control to play or pause the music file. Press Stop button on the remote control to return to the list of music files.
-
Page 21: File Management
File Management Playing a slideshow with music Ensure you have at least one picture on your memory card or your USB flash drive. Additionally, you must have one MP3 file saved on the selected memory card/USB/Internal Memory. When this is done: Select the desired flash media on main menu. - Page 22 Previous Play previous picture in the picture list Play or Pause Play or pause the current slideshow. Next Play next picture in the file list Rotate Use the rotate function to change the picture orientation to either portrait or landscape. Stop Stop slideshow and return to photo thumbnail.
-
Page 23: Copying And Deleting Files
Copying and Deleting Files To copy and delete files on your memory card, USB drive or internal memory. Copy Select the desired flash media on main menu. (SD/xD/CF/MS/USB/NAND-Internal Memory) Select the “FILE” option from the menu and press “ENTER” A list of available files will be displayed. Use the up and down arrows to highlight your required file and press the right arrow to highlight the desired file. - Page 24 Press Enter to start copying the file. Delete Select the desired flash media on main menu. (SD/xD/CF/MS/USB/NAND-Internal Memory) Select the “FILE” option from the menu and press “ENTER” A list of available files will be displayed. Use the up and down arrows to highlight your required file and press the right arrow to highlight the desired file.
-
Page 25: Using The Setup Option
Using the SETUP option The following options can be changed by using the “SETUP” option from the main menu: Function Description Language Includes English, French, Spanish Slideshow time Slideshow duration: 3s/5s/15s/1mins/15mins/1hr Slideshow mode Off, Random, Fading, Bottom_to_top, Top_to_bottom, Left_to right, Right_to_left, Door_close, Door_open, Hori_cross, Verti_cross Music Repeat Mode Repeat one, Repeat all, Repeat off... -
Page 26: Technical Support
Technical Support Frequently asked questions 1) Q: Can I use touch-enabled technology for my Digital Picture Frame? A: The LCD screen does not support touch-enabled technology. Please use the buttons or remote control to control the Digital Picture Frame. 2) Q: If I keep showing the same photo for a long time, will it damage the LCD screen? A: No. - Page 27 Troubleshooting Symptom Cause Corrective Actions Digital Picture Frame doesn’t power The POWER connector to the unit is Make sure you connect the AC not securely inserted. adapter to the frame properly. When you connect the AC adapter to the frame and power up the unit, even without a memory card, you should see a blank screen.
-
Page 28: Specifications
Specifications Type 10.4 inch Digital Picture Frame Internal Memory 1 GB Resolution 600 x 480 Alimentation 12 V Consumption 10 Watts Working Temperature -20 to +65 degrees Luminosity 350cd/m max. Contrast 400:1 Viewing Angle 40/70/70/70 (CR=10) Response Time 18ms Display Mode File Format JPEG, MP3, MPEG4 Photo Size...
