Linear DOOR/WINDOW TRANSMITTER DXT-31 Installation Instructions page 2

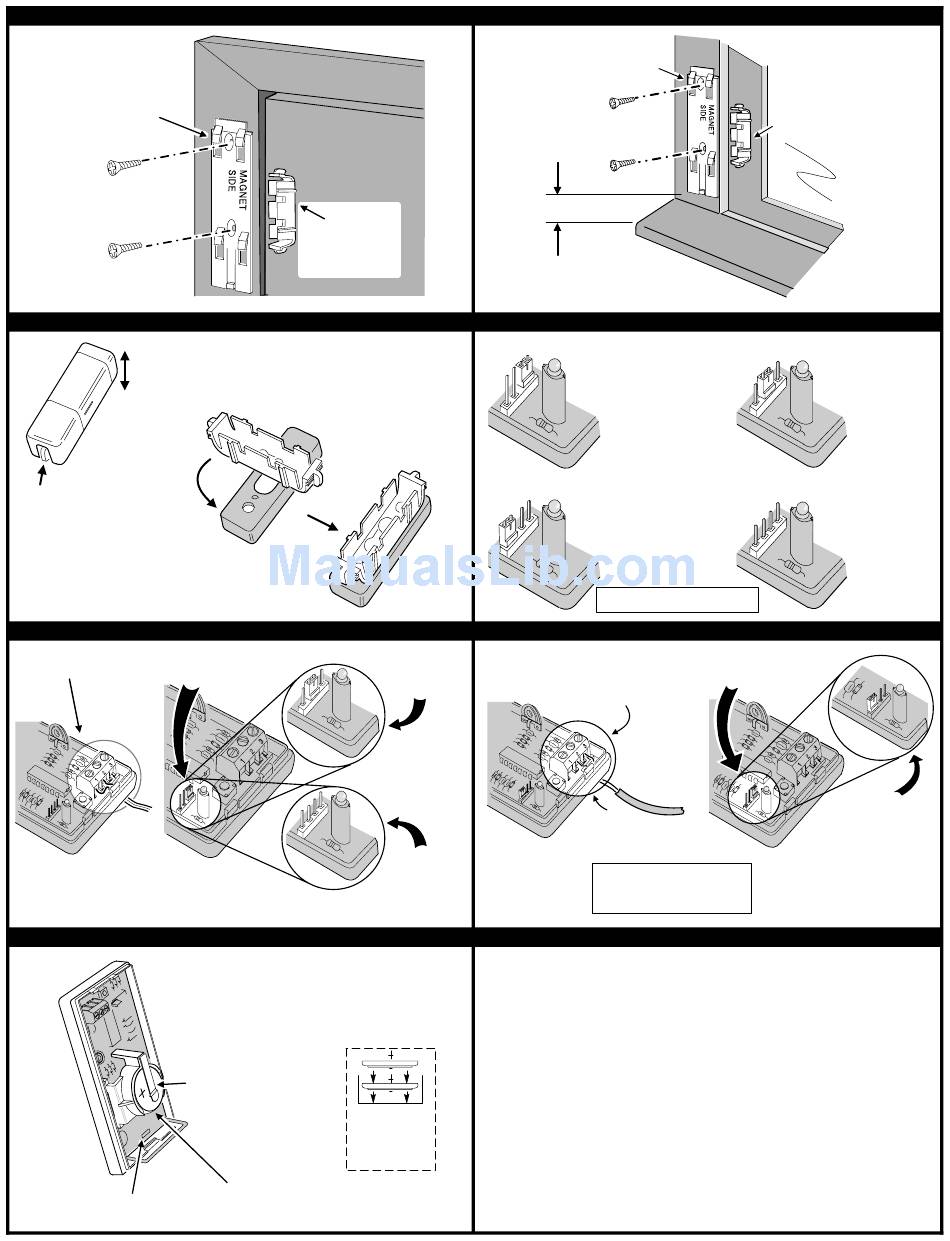

MOUNTING ON DOOR
MOUNT PLATE
TO FRAME
1/2" MAXIMUM
SPACE BETWEEN
TRANSMITTER AND
MAGNET PLATES
SNAP TRANSMITTER
ONTO MOUNTING PLATE
OPTIONAL MAGNET SPACER
FOUR HEIGHT
POSITIONS
SQUEEZE SIDE TABS
TO ADJUST MAGNET
HEIGHT
HOOK SPACER TO
MAGNET PLATE
AND ROTATE TO
LOCK IN PLACE
CONNECTING EXTERNAL CONTACTS
WIRE EXTERNAL NORMALLY
THIS IS THE FACTORY SET
CLOSED CONTACTS TO
JUMPER POSITION IT SELECTS
TERMINALS 1 & 2
THE INTERNAL SWITCH
IMPORTANT NOTE:
WHEN USING BOTH
INTERNAL AND EXTERNAL
SWITCHES BOTH SWITCHES MUST
BE CLOSED TO ARM THE TRANSMITTER
CHANGING BATTERIES
WHEN BATTERIES ARE LOW, OPEN SENSOR CASE AND
GENTLY LIFT UP END OF BATTERY CLAMP,
SLIDE BATTERIES OUT
NOTE: USE OF EXCESSIVE FORCE ON
BATTERY CLAMP WILL RESULT IN DAMAGE
LIFT
IF NECESSARY
PUSH IN SLOT TO REMOVE
SENSOR FROM MOUNTING PLATE
ALIGN MAGNET
PLATE NEXT TO
TRANSMITTER
PLATE AND ATTACH
TO DOOR
USE SNAP-ON MAGNET
SPACER WHEN MORE
HEIGHT IS REQUIRED
PUT JUMPER
ON THE MIDDLE
PINS TO USE
EXTERNAL
SWITCH
- OR -
TAKE JUMPER
OFF TO USE
BOTH
EXTERNAL
& INTERNAL
SWITCH
INSTALL TWO
DURACELL
TYPE DL 2032
BATTERIES (+)
SIDE UP
REMOVE BATTERIES
FROM THIS END
MOUNTING ON WINDOW
MOUNT TRANSMITTER
PLATE TO FRAME
SPACE BELOW
PLATE IS REQUIRED
TO SNAP TRANSMITTER
ONTO PLATE
1/2" MINIMUM
SNAP TRANSMITTER
ONTO MOUNTING PLATE
OPTION JUMPER POSITIONS
SELECTS INTERNAL
SWITCH
(INSIDE POSITION)
SELECTS GLASS
BREAK SENSOR ONLY
(EDGE POSITION)
NOTE: GLASS BREAK INPUT
TERMINALS ARE ALWAYS ACTIVE
CONNECTING EXTERNAL GLASS BREAK SENSOR
CONNECT NORMALLY OPEN
GLASS BREAK SENSOR
WIRES TO TERMINALS 2 & 3
ROUTE SENSOR
WIRES UP THROUGH
WIRING SLOT
NOTE: THIS TRANSMITTER IS DESIGNED
FOR USE WITH THE UNITED SECURITY
PRODUCTS "WINDOW BUG" GLASS
BREAK SENSOR. OTHER SENSORS
HAVE NOT BEEN TESTED.
LINEAR LIMITED WARRANTY
This Linear product is warranted against defects in material and workmanship for twelve (12) months. The Warranty Expiration Date
is labeled on the product. This warranty extends only to wholesale customers who buy direct from Linear or through Linear's
normal distribution channels. Linear does not warrant this product to consumers. Consumers should inquire from their selling
dealer as to the nature of the dealer's warranty, if any. There are no obligations or liabilities on the part of Linear corporation
for consequential damages arising out of or in connection with use or performance of this product or other indirect damages
with respect to loss of property, revenue, or profit, or cost of removal, installation, or reinstallation. All implied warranties,
including implied warranties for merchantability and implied warranties for fitness, are valid only until Warranty Expiration Date as
labeled on the product. This Linear Corporation Warranty is in lieu of all other warranties express or implied.
For warranty service on Linear equipment return product, at sender's expense to:
Linear Corporation Repairs Department
2580 Pioneer Avenue, Suite C
Vista, CA 92083
Linear radio controls provide a reliable communications link and fill an important need in portable wireless signalling. However, there
are some limitations which must be observed.
For U.S. installations only: The radios are required to comply with FCC Rules and Regulations as Part 15 devices. As such,
they have limited transmitter power and therefore limited range.
A receiver cannot respond to more than one transmitted signal at a time and may be blocked by radio signals that occur on or
near their operating frequencies, regardless of code settings.
Changes or modifications to the device may void FCC compliance.
Infrequently used radio links should be tested regularly to protect against undetected interference or fault.
A general knowledge of radio and its vagaries should be gained prior to acting as a wholesale distributor or dealer, and these
facts should be communicated to the ultimate users.
Copyright © 1995 Linear Corporation
ALIGN MAGNET
PLATE NEXT TO
TRANSMITTER
PLATE AND ATTACH
TO WINDOW
SELECTS EXTERNAL
SWITCH
(MIDDLE POSITION)
SELECTS BOTH
INTERNAL AND
EXTERNAL SWITCHES
(NO JUMPER)
MOVE JUMPER FROM
THESE PINS (SELECTS
INTERNAL SWITCH)
TO THESE PINS
(SELECTS GLASS
BREAK SENSOR)
IMPORTANT !!!
211694 A
