Linear DXS-31 Installation Instructions

DXS-31
SUPERVISED
DOOR/WINDOW
TRANSMITTER

Installation Instructions

(760) 438-7000 • FAX (760) 438-7043
USA & Canada (800) 421-1587 & (800) 392-0123
Toll Free FAX (800) 468-1340

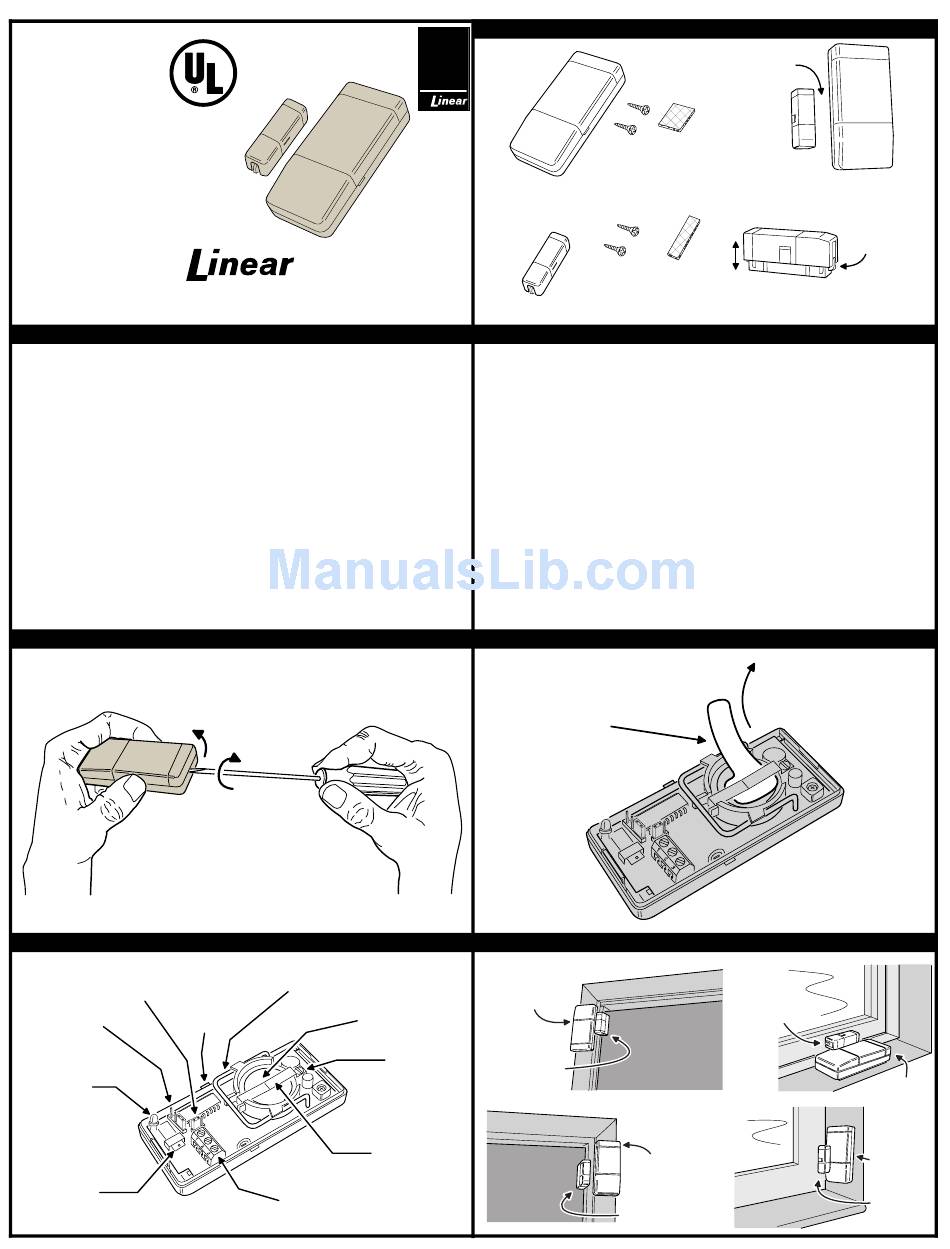

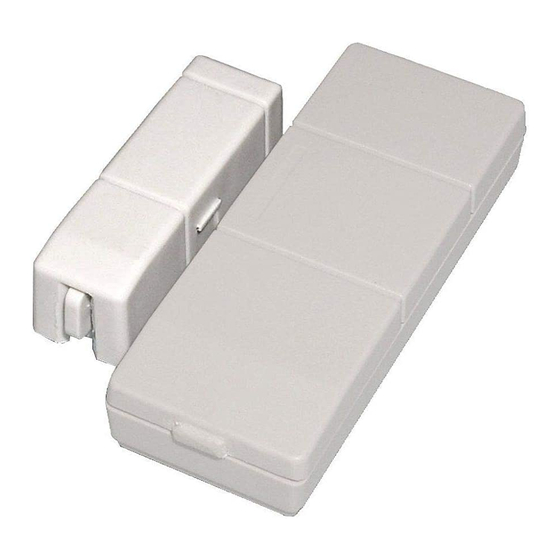

The DXS-31 is a battery powered stationary transmitter designed for use with Linear's DXS and DX
format receivers. This transmitter can be used in a variety of wireless remote control applications.
Triggering the transmitter with its built-in magnetic switch, an external switch or an external glass
break detector sends a digitally coded wireless signal to its companion receiver.
The digital DXS code format features over a million possible codes. The DXS transmitters are
precoded at the factory to unique codes, so no field coding is required. The DXS-31 can send four
different codes: alarm, restore, low battery and status.
For versatility, any transmitter can be programmed into any receiver channel. Receivers must be
programmed to the transmitter's code before system testing and operation. Refer to the receiver's
instructions for details on programming.
In a typical installation, the magnet is mounted on a door or window and the transmitter is mounted
on the frame. When the magnet moves more than 1/2" away from the transmitter, an alarm signal
is sent. When the magnet returns next to the unit, a restore signal is sent. Alarms and restores can
also be sent from external contacts wired to the terminal block. Pressing the case sends a test
transmission that updates the receiver to the current state of the contacts and lights the test indicator.
When the transmitter's case is open, the transmit indicator will light each time the unit sends an
alarm or restore signal. The indicator is disabled when the case is closed (except for test
transmissions). The indicator will flash during operation and test when the batteries are low.
LIFT
COMPONENT LOCATIONS
INSTANT/DELAY
OPTION JUMPER
MAGNET
INPUT
ALIGNMENT
SELECT
MARK
JUMPER
TRANSMIT
INDICATOR
TEST
SWITCH
OPENING CASE
REMOVE THE CASE TOP BY TWISTING A
SMALL FLAT BLADE SCREWDRIVER IN THE
TOP CASE SLOT (ON THE FAT END OF THE
TRANSMITTER)
TWIST
ANTENNA
TWO TYPE 2032
BATTERIES
BATTERY CLAMP
EXTERNAL
INPUT
TERMINALS
DXS
DXS-31
TRANSMITTER
FORMAT
By
ADJUSTABLE
MAGNET
PRODUCT DESCRIPTION
The transmitter is powered from two 3-Volt #2032 lithium batteries with an expected battery life of
up to 3 years.
Every hour, the DXS-31 will send a status transmission to the receiver. The hourly signal updates
the receiver to the transmitter's condition. By monitoring status transmissions, the receiver can
determine if a transmitter has a low battery or has been removed from the system. DXS format
receivers can monitor status signals, DX format receivers cannot.
A three-position terminal block is for connection to normally closed external contacts or a normally
open "Window Bug" type glass break sensor. An internal jumper selects which input to use.
Selections are: internal switch only, external switch only, both external and internal switch, and glass
break sensor.
Another internal jumper selects an instant or delayed transmission code. This jumper doesn't delay
the actual transmissions, but changes the code of the signal sent so the receiver can process the
signal as coming from an entry/exit delay transmitter.
A snap-on transmitter mounting plate is provided for easy installation. The magnet is adjustable with
four height positions. A 1/4" high magnet spacer is also supplied to snap on to the base of the magnet.
BATTERY
PROTECTION
STRIP
LEFT OPENING DOOR
TRANSMITTER
MOUNTED ON
DOOR JAMB
(NOTE: SMALL END
OF TRANSMITTER UP)
BATTERY
CLAMP
MAGNET
MOUNTED
SCREW
ON DOOR
DXS-31 FEATURES & ACCESSORIES
1/2" GAP DISTANCE
MAXIMUM
TRANSMITTER
SCREWS AND
DOUBLE STICK TAPE
MAGNET CAN BE MOUNTED UP TO
MAGNET
SCREWS AND
SQUEEZE MAGNET TABS TO
DOUBLE STICK TAPE
ADJUST MAGNET HEIGHT (4 POSITIONS)
REMOVE BATTERY PROTECTION STRIP
PULL
STRIP TO
REMOVE
EXAMPLE INSTALLATIONS
SLIDING WINDOW
MAGNET MOUNTED
ON WINDOW FRAME
RIGHT OPENING DOOR
TRANSMITTER
MOUNTED ON
DOOR JAMB
(NOTE: SMALL END
OF TRANSMITTER DOWN)
MAGNET MOUNTED
ON DOOR
1/2" FROM LEFT SIDE OF
TRANSMITTER
MAGNET
ADJUSTMENT
TAB (EACH SIDE)
TRANSMITTER
MOUNTED ON
WINDOW SILL
DOUBLE-HUNG
WINDOW
TRANSMITTER
MOUNTED ON
WINDOW FRAME
MAGNET
MOUNTED
ON WINDOW
SASH STILE
