Linear DXS-32 Installation Instructions

DXS-32
MINIATURE
SUPERVISED
DOOR/WINDOW
TRANSMITTER

Installation Instructions

(760) 438-7000 • FAX (760) 438-7043
USA & Canada (800) 421-1587 & (800) 392-0123
Toll Free FAX (800) 468-1340
www.linearcorp.com

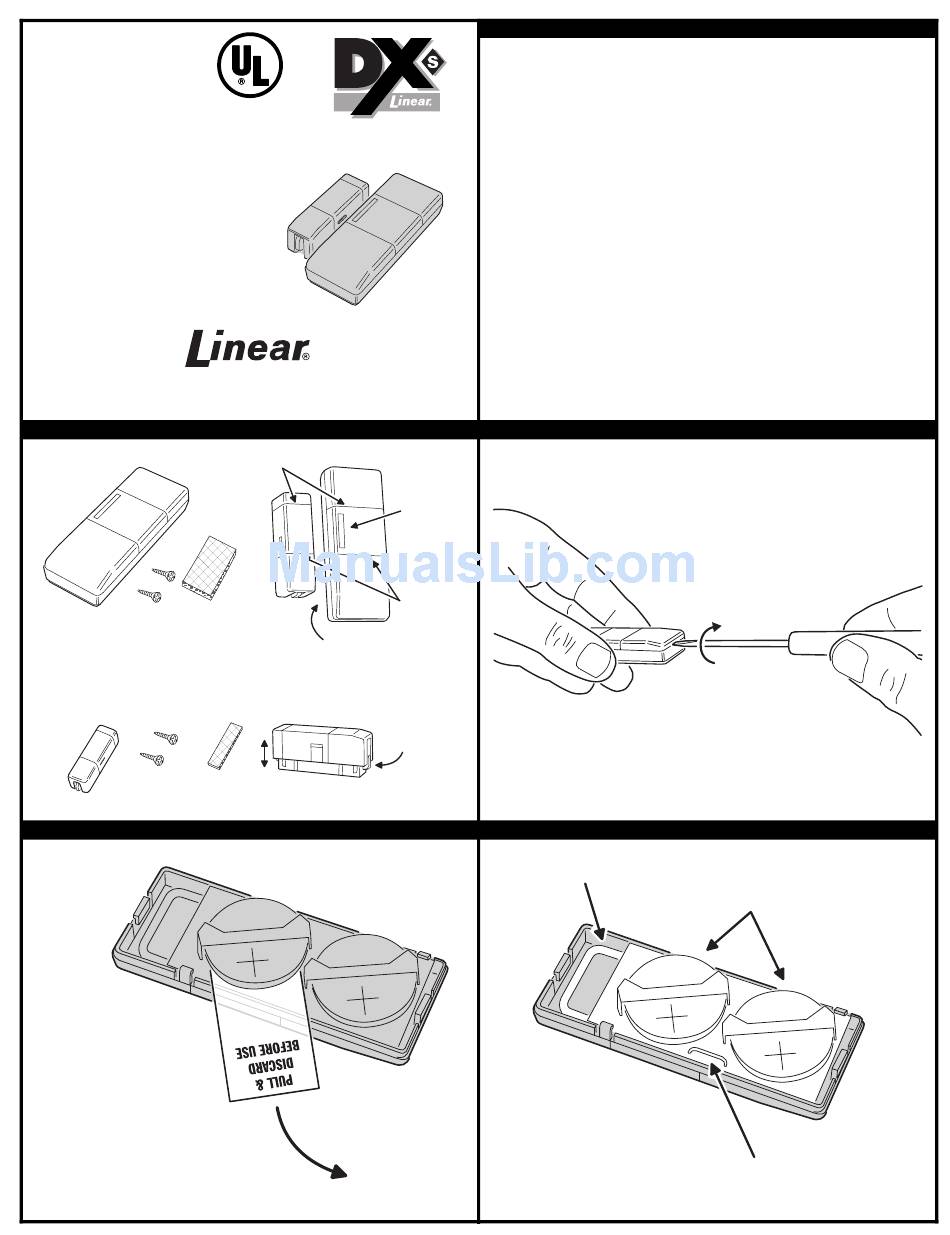

DXS-32 FEATURES & ACCESSORIES
TRANSMITTER
TRANSMITTER
SCREWS AND
DOUBLE STICK TAPE
ADJUSTABLE
MAGNET
MAGNET
SCREWS AND
DOUBLE STICK TAPE
REMOVE BATTERY PROTECTION STRIP
PULL OUT & DISCARD
BATTERY PROTECTION
STRIP TO ACTIVATE
TRANSMITTER
BY
MAGNET
ALIGNMENT
MARKS
MAGNET
MAGNET CAN BE MOUNTED UP TO
1/2" FROM LEFT SIDE OF
TRANSMITTER
ADJUSTMENT
TAB (EACH SIDE)
SQUEEZE MAGNET TABS TO
ADJUST MAGNET HEIGHT (4 POSITIONS)

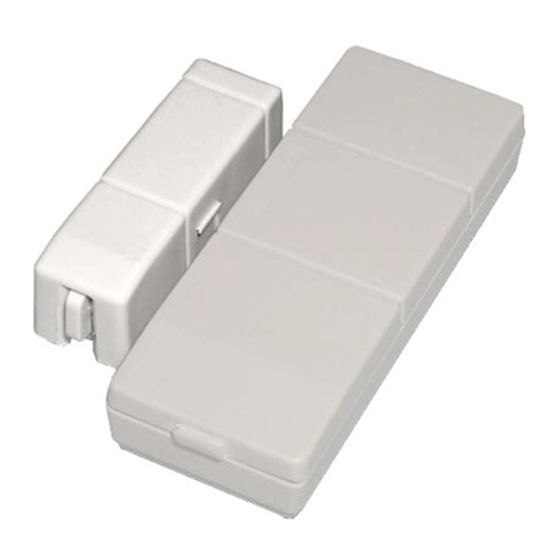

The DXS-32 is a battery powered stationary transmitter designed for use with Linear's DXS and DX
format receivers. This transmitter can be used in a variety of wireless remote control applications.
Triggering the transmitter with its built-in magnetic switch sends a digitally coded wireless signal to
its companion receiver.
The digital DXS code format features over a million possible codes. The DXS transmitters are
precoded at the factory to unique codes, so no field coding is required. The DXS-32 can send four
different codes: alarm, restore, low battery and status.
Receivers must be programmed to the transmitter's code before system testing and operation. Refer
to the receiver's instructions for details on programming.
In a typical installation, the magnet is mounted on a door or window and the transmitter is mounted
on the frame. When the magnet moves more than 1/2" away from the transmitter, an alarm signal is
sent. When the magnet returns next to the unit, a restore signal is sent. The magnet is adjustable
with four height positions. A 1/4" high magnet spacer is also supplied to snap on to the base of the
magnet.
The transmitter is powered from two 3-Volt #2032 lithium batteries with an expected battery life of
up to 4 years. Every hour, the DXS-32 will send a status transmission to the receiver. The hourly
signal updates the receiver to the transmitter's condition. By monitoring status transmissions, the
receiver can determine if a transmitter has a low battery or has been removed from the system. DXS
format receivers can monitor status signals, DX format receivers cannot.
Normally, the transmitter sends an exit/entry delay transmission code. Cutting an internal jumper
selects an instant transmission code. Cutting this jumper doesn't change the time of the actual
transmissions, but changes the code of the signal sent so the receiver can determine the transmitter's
function.
SIDE
MARK
MAGNET
ALIGNMENT
MARKS
MAGNET
ANTENNA
PRODUCT DESCRIPTION
OPENING CASE
REMOVE THE CASE TOP BY TWISTING A
SMALL FLAT BLADE SCREWDRIVER IN
THE SLOT ON EITHER END OF THE TRANSMITTER
TWIST
COMPONENT LOCATIONS
TWO TYPE 2032
BATTERIES
DELAY/INSTANT JUMPER
(CUT JUMPER FOR INSTANT)
