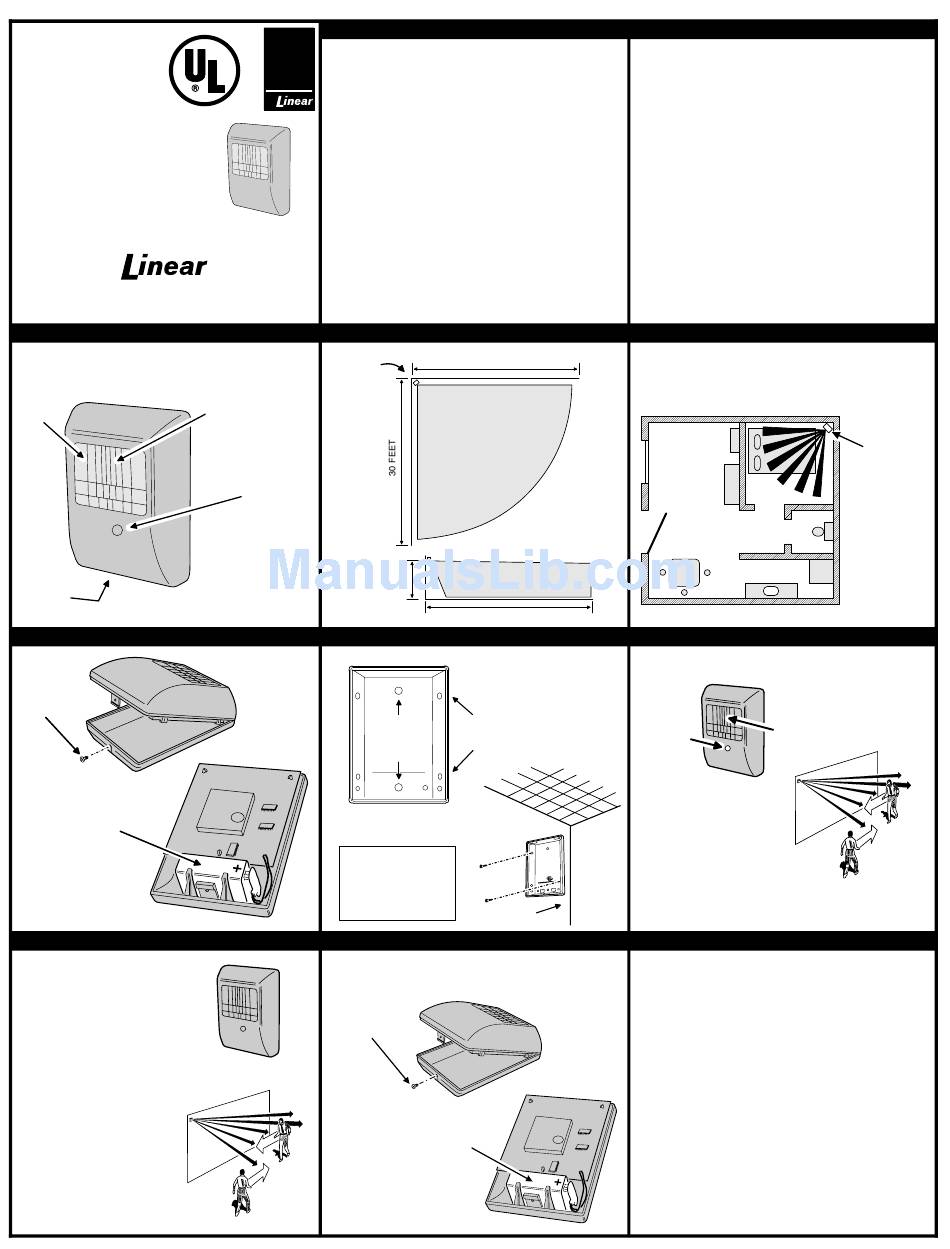

Linear DXS-54 Installation Instructions

DXS-54
SUPERVISED
WIRELESS
MOTION
DETECTOR

Installation Instructions

(760) 438-7000 • FAX (760) 438-7043
USA & Canada (800) 421-1587 & (800) 392-0123
Toll Free FAX (800) 468-1340
DXS-54 FEATURES
MOTION
DETECTOR
LENS
CASE
LOCKING
SCREW
(ON BOTTOM)
CONNECTING BATTERY
REMOVE
SCREW
AND OPEN
CASE
CONNECT 9-VOLT ALKALINE
BATTERY TO BATTERY CLIP
(PLUS SIDE UP)
NOTE: BE SURE TO
REPLACE THE CASE
SCREW AFTER CLOSING
THE CASE
PROGRAM RECEIVER AND TEST
FOR PROGRAMMING,
REFER TO THE RECEIVER'S
INSTRUCTIONS
AFTER PROGRAMMING RECEIVER
TO THE TRANSMITTER'S CODE
TEST THE SYSTEM
STAYING CLEAR, WAIT AT LEAST
FIVE MINUTES BEFORE WALKING
INTO THE DETECTION AREA
WALK ACROSS THE DETECTION
PATTERN AND VERIFY THAT
THE RECEIVER ACTIVATES
DXS
The DXS-54 is a battery powered passive infrared motion detector with
a built-in transmitter designed for use with Linear's DXS and DX format
receivers. This transmitter can be used in a variety of motion detection
FORMAT
applications. When the passive infrared sensor detects motion in its
field of view, the transmitter sends a digitally coded wireless signal to
By
its companion receiver.
The digital DXS code format features over a million possible codes.
The DXS transmitters are precoded at the factory to unique codes, so
no field coding is required. The DXS-54 can send three different
signals: alarm, low battery and status.
For versatility, any transmitter can be programmed into any receiver
channel. Receivers must be programmed to the transmitter's code
before system testing and operation. Refer to the receiver's
instructions for details on programming.
In a typical installation, the motion detector is mounted indoors in a
corner or on a wall between six and eight feet high. The sensor will
monitor the infrared level in its detection pattern. If the level increases
or decreases rapidly (as when a person or animal moves through the
area) the transmitter triggers, sending an alarm signal to the receiver.
MOTION
DETECTOR
IN CORNER
TEST INDICATOR
BEHIND LENS
(BLINKS DURING
WALK TEST, FLASHES
WHEN BATTERY IS LOW
DURING MOTION)
WALK
TEST
BUTTON
OPERATING
TEMPERATURE
6-8 FEET
RANGE:
+32° TO +120° F
(0° TO +49° C)
USE CENTER
HOLES FOR
WALL
MOUNTING
PUNCH OUT REQUIRED HOLES
FOR SCREW MOUNTING
NOTE:
THE DETECTOR CAN
BE MOUNTED WITH
DOUBLE STICK TAPE,
BUT IS NOT ALLOWED
IN UL INSTALLATIONS
WHEN THE DETECTOR
HAS A LOW BATTERY:
REMOVE
SCREW
AND OPEN
CASE
REPLACE THE BATTERY WITH
A FRESH 9-VOLT ALKALINE
OR LITHIUM BATTERY
(PLUS SIDE UP)
USE ALKALINE
OR LITHIUM
BATTERIES ONLY
SNAP DETECTOR ONTO BASE
AND REPLACE CASE SCREW
WHEN FINISHED
PRODUCT DESCRIPTION
DETECTION PATTERN
30 FEET
DETECTION
AREA
TOP
VIEW
30 FEET
MOUNTING DETECTOR BASE
MOUNTING THE DETECTOR
IN A CORNER IS PREFERRED
AFTER MOUNTING, SNAP
DETECTOR ONTO BASE
AND REPLACE CASE SCREW
USE SIDE HOLES
FOR CORNER
MOUNTING
CHANGING BATTERY
The unit is powered from a 9-Volt alkaline battery. The battery's life
can be up to three years depending on the area's traffic. When the
battery gets low, the test indicator will flash and a low battery signal
will be sent to the receiver when the detector senses motion.
Approximately every hour, the DXS-54 will send a status transmission
to the receiver. The hourly signal updates the receiver to the
transmitter's condition. By monitoring status transmissions, the
receiver can determine if a transmitter has a low battery or has been
removed from the system. DXS format receivers can monitor status
signals, DX format receivers cannot.
To conserve battery life, during normal operation, the detector can
trigger the transmitter a maximum of once every four minutes.
For setup and testing, pressing the detector's test button places the
unit in walk test mode for four minutes. The installer can walk in front
of the unit while viewing the red test indicator through the detector's
lens to determine the detection area.
In walk test, an alarm signal is sent each time the walk test indicator
lights. During normal operation, the detector requires a "pulse count"
of three events in eight seconds before sending an alarm transmission.
TYPICAL INSTALLATION
DON'T POINT AT HEAT SOURCES
(HEATERS, ETC.), WINDOWS, OTHER
MOTION DETECTORS OR DOOR/WINDOW
TRANSMITTERS
FRONT
ROOM
BEDROOM
SIDE
VIEW
WALK TEST
PUSH
WALK
TEST
BUTTON
UNIT WILL STAY IN
WALK TEST MODE
FOR 4 MINUTES AFTER
PRESSING WALK TEST
BUTTON
MOUNT
DETECTOR
6-8 FEET
VERIFY THAT DETECTION
HIGH
PATTERN COVERS DESIRED
AREA
LINEAR LIMITED WARRANTY
This Linear product is warranted against defects in material and workmanship for twelve (12) months. The
Warranty Expiration Date is labeled on the product. This warranty extends only to wholesale customers
who buy direct from Linear or through Linear's normal distribution channels. Linear does not warrant
this product to consumers. Consumers should inquire from their selling dealer as to the nature of the
dealer's warranty, if any. There are no obligations or liabilities on the part of Linear corporation for
consequential damages arising out of or in connection with use or performance of this product or
other indirect damages with respect to loss of property, revenue, or profit, or cost of removal,
installation, or reinstallation. All implied warranties, including implied warranties for merchantability and
implied warranties for fitness, are valid only until Warranty Expiration Date as labeled on the product. This
Linear Corporation Warranty is in lieu of all other warranties express or implied.
For warranty service on Linear equipment return product, at sender's expense to:
All products returned for warranty service require a Return Product Authorization Number (RPA#). Contact
Linear Technical Services at 1-800-421-1587 for an RPA# and other important details.
IMPORTANT !!!
Linear radio controls provide a reliable communications link and fill an important need in portable wireless
signalling. However, there are some limitations which must be observed.
✶
For U.S. installations only: The radios are required to comply with FCC Rules and Regulations as
Part 15 devices. As such, they have limited transmitter power and therefore limited range.
✶
A receiver cannot respond to more than one transmitted signal at a time and may be blocked by
radio signals that occur on or near their operating frequencies, regardless of code settings.
✶
Changes or modifications to the device may void FCC compliance.
✶
Infrequently used radio links should be tested regularly to protect against undetected interference
or fault.
✶
A general knowledge of radio and its vagaries should be gained prior to acting as a wholesale
distributor or dealer, and these facts should be communicated to the ultimate users.
Copyright © 1997 Linear Corporation
MOTION
DETECTOR
(FOR INDOOR
USE ONLY)
MOUNT
DETECTOR
BATH
SO THAT
INTRUDER
KITCHEN
WILL CROSS
BEAMS
WALK IN FRONT OF UNIT
WHILE WATCHING RED LIGHT
NOTE: AFTER INITIAL SETUP
WALK TEST UNIT ANNUALLY
209509 B
