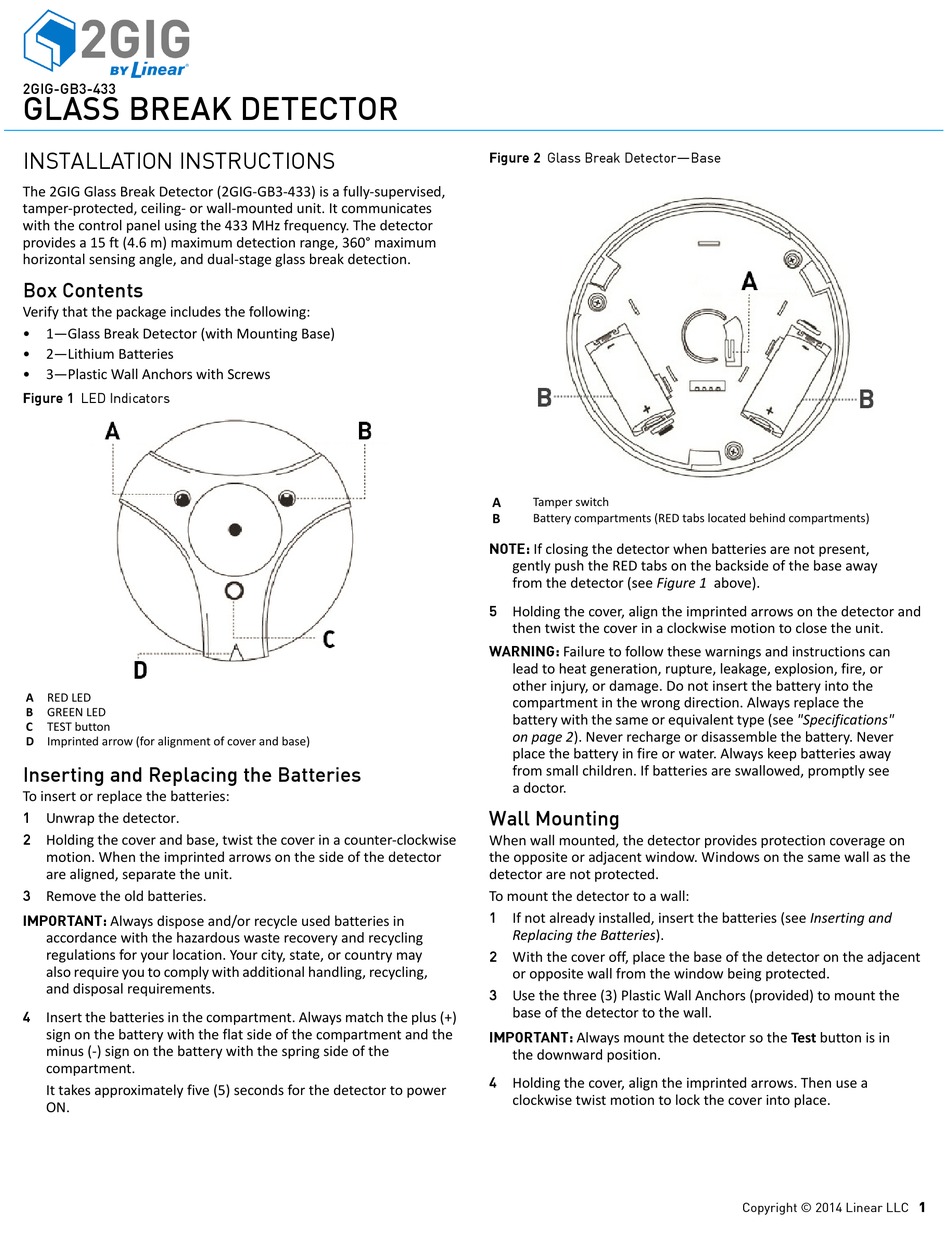

Linear 2GIG-GB3-433 Installation Instructions

2GIG-GB3-433
GLASS BREAK DETECTOR
INSTALLATION INSTRUCTIONS
The 2GIG Glass Break Detector (2GIG‐GB3‐433) is a fully‐supervised,
tamper‐protected, ceiling‐ or wall‐mounted unit. It communicates
with the control panel using the 433 MHz frequency. The detector
provides a 15 ft (4.6 m) maximum detection range, 360° maximum
horizontal sensing angle, and dual‐stage glass break detection.
Box Contents
Verify that the package includes the following:
• 1—Glass Break Detector (with Mounting Base)
• 2—Lithium Batteries
• 3—Plastic Wall Anchors with Screws
Figure 1 LED Indicators
A RED LED
B GREEN LED
C TEST button
D Imprinted arrow (for alignment of cover and base)
Inserting and Replacing the Batteries
To insert or replace the batteries:
Unwrap the detector.
1
Holding the cover and base, twist the cover in a counter‐clockwise
2
motion. When the imprinted arrows on the side of the detector
are aligned, separate the unit.
Remove the old batteries.
3
Always dispose and/or recycle used batteries in
IMPORTANT:
accordance with the hazardous waste recovery and recycling
regulations for your location. Your city, state, or country may
also require you to comply with additional handling, recycling,
and disposal requirements.
Insert the batteries in the compartment. Always match the plus (+)
4
sign on the battery with the flat side of the compartment and the
minus (‐) sign on the battery with the spring side of the
compartment.
It takes approximately five (5) seconds for the detector to power
ON.
Figure 2 Glass Break Detector
A Tamper switch
B
Battery compartments (RED tabs located behind compartments)
If closing the detector when batteries are not present,
NOTE:
gently push the RED tabs on the backside of the base away
from the detector (see Figure 1 above).
5 Holding the cover, align the imprinted arrows on the detector and
then twist the cover in a clockwise motion to close the unit.
Failure to follow these warnings and instructions can
WARNING:
lead to heat generation, rupture, leakage, explosion, fire, or
other injury, or damage. Do not insert the battery into the
compartment in the wrong direction. Always replace the
battery with the same or equivalent type (see "Specifications"
on page 2). Never recharge or disassemble the battery. Never
place the battery in fire or water. Always keep batteries away
from small children. If batteries are swallowed, promptly see
a doctor.
Wall Mounting
When wall mounted, the detector provides protection coverage on
the opposite or adjacent window. Windows on the same wall as the
detector are not protected.
To mount the detector to a wall:
If not already installed, insert the batteries (see Inserting and
1
Replacing the Batteries).
2 With the cover off, place the base of the detector on the adjacent
or opposite wall from the window being protected.
3 Use the three (3) Plastic Wall Anchors (provided) to mount the
base of the detector to the wall.
IMPORTANT: Always mount the detector so the Test button is in
the downward position.
Holding the cover, align the imprinted arrows. Then use a
4
clockwise twist motion to lock the cover into place.
—
Base
Copyright © 2014 Linear LLC 1
