Precedent Stretch
Owner's Manual
Electric
[Refer to back cover for applicable build code range]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Precedent Stretch and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Club Car Precedent Stretch

Summary of Contents for Club Car Precedent Stretch

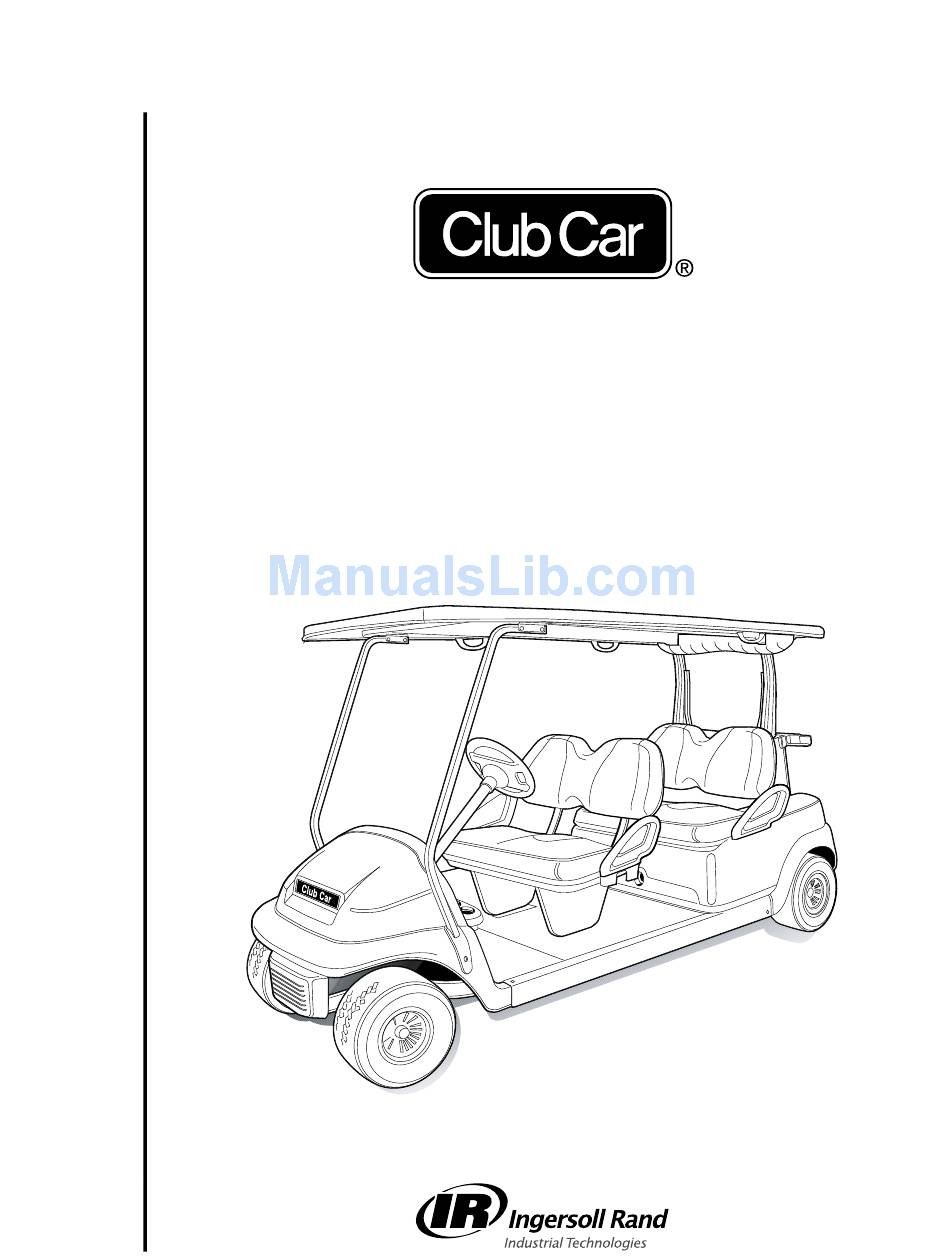

  • Page 1 Precedent Stretch Owner’s Manual Electric [Refer to back cover for applicable build code range]...
  • Page 3 Your authorized representative checked the vehicle before it was delivered to you and will provide you a copy of the completed vehicle warranty registration form. Club Car is not liable for errors in this manual or for incidental or consequential damages that result from the use of the material in this manual.
  • Page 4 Services, P.O. Box 204658, Augusta, Georgia 30917-4658 USA. We hope you will consider this owner’s manual a permanent part of your Club Car vehicle. If you sell the vehicle, please include the manual so that the next owner will have the important operating, safety, and maintenance information it contains.

  • Page 5: Table Of Contents

    Periodic Lubrication Schedule ..........................27 Batteries ................................28 Battery Charger ..............................33 Cleaning the Vehicle ............................34 Accessories................................ 34 Subsequent Owner Registration .......................... 34 Vehicle Specifications ............................35 Warranty ................................37 EC Declaration of Conformity ..........................39 Precedent Stretch Owner’s Manual Page 3...

  • Page 6: Safety Decal And Feature Identification

    Safety Decal and Feature Identification SAFETY DECAL AND FEATURE IDENTIFICATION The following pages contain safety decal and feature identification information. For detailed information on specific features, read the appropriate section in this manual. Page 4 Precedent Stretch Owner’s Manual...
  • Page 7 Decal, Rollover Warning (on instrument panel) Accelerator Pedal Decal, Private Speed Notice (below instrument 102555901 Brake Pedal panel) (With Private Speed Notice option) 103783001 Decal, Operating Instructions (on steering wheel) Park Brake Pedal 103818101 Decal, Forward/Reverse Switch Precedent Stretch Owner’s Manual Page 5...
  • Page 8 ELECTRIC PRECEDENT – 6X8 VOLT Tag, SPWS Battery Warning (on battery watering 102591901 103384801 Decal, Tow/Run Warning tubes) (with Single-Point Watering System option) 103384601 Decal, Water Exposure Caution Tow/Run Switch 103384701 Decal, Battery Terminal Warning Battery Charger Receptacle Page 6 Precedent Stretch Owner’s Manual...

  • Page 9: Practice Safety

    PROPOSITION 65 – STATE OF CALIFORNIA WARNING • This product contains or emits chemicals or substances that have been determined by the state of California to cause cancer and birth defects or other reproductive harm. Precedent Stretch Owner’s Manual Page 7...

  • Page 10: Safety Details

    2% of the air. • Battery – Poison! Contains acid! Causes severe burns. Avoid contact with skin, eyes, or clothing. Antidotes: – External: Flush with water. Call a physician immediately. DANGER CONTINUED ON NEXT PAGE Page 8 Precedent Stretch Owner’s Manual...
  • Page 11 • The vehicle will not provide protection from lightning, flying objects, or other storm-related hazards. If caught in a storm while driving a Club Car vehicle, exit the vehicle and seek shelter in accordance with applicable safety guidelines for your location.
  • Page 12 1. Place TOW/RUN Switch in TOW before disconnecting or connecting battery cables. 2. Remove negative battery cable. 3. Remove positive battery cable. Connect battery cables in reverse order. Figure 2 Battery Cable Removal – 6x8-Volt Battery Configuration Page 10 Precedent Stretch Owner’s Manual...
  • Page 13 Responsibility for environmental protection must be shared, not only by the manufacturers of the batteries, but by people who use the batteries as well. Please contact your nearest Club Car dealer or distributor for information on how to properly recycle your batteries. 1403...

  • Page 14: General Information

    This owner’s manual is valid for the build code range indicated on the back cover of this owner’s manual. SERIAL NUMBER PH0901-123456 BC54679 ASSEMBLED IN USA 1400 Figure 5 Serial Number Decal Page 12 Precedent Stretch Owner’s Manual...

  • Page 15: Controls And Indicators - Electric Vehicles

    The key can be removed only when the key switch is in the OFF position. 1. Key Switch 2. Forward/Reverse Switch 3. Battery Warning Light 4. Battery Condition Indicator (optional) 5. Headlight Switch (optional) 2454 Figure 6 Controls and Indicators Precedent Stretch Owner’s Manual Page 13...
  • Page 16 This feature is selectable. Contact your local Club Car dealer/distributor to inquire about this feature. See following WARNING.
  • Page 17 The park brake pedal is the small raised portion in the upper left corner of the brake pedal. It has the word PARK molded into it. To engage the park brake, press the brake pedal firmly and tilt the park brake portion of the pedal forward with your foot (Figure 9). See following WARNING. Precedent Stretch Owner’s Manual Page 15...
  • Page 18 30 minutes. However, the vehicle should be charged at the first opportunity. If the warning light illuminates and the vehicle is unable to operate for 30 minutes, have your Club Car distributor/dealer check the vehicle for a possible battery or electrical system problem.

  • Page 19: Pre-Operation And Daily Safety Checklist

    Use the following checklist as a guide to inspect the vehicle. This checklist should be used daily to ensure that the vehicle is in proper working condition and in conjunction with the Performance Inspection on page 18, and the Periodic Service Schedule on page 24. Any problems should be corrected by a Club Car distributor/dealer or a trained technician.
  • Page 20 Use the following checklist in conjunction with the Daily Pre-Operation and Safety Checklist as a guide to inspect the vehicle and check daily for proper operation. Any problems should be corrected by a Club Car distributor/dealer or a trained technician.

  • Page 21: Driving Instructions

    • Do not use the vehicle on public roads. It is not designed or intended for street use and should not be licensed for use on public roads. • The vehicle should be driven in only specified areas by trained drivers. WARNING CONTINUED ON NEXT PAGE Precedent Stretch Owner’s Manual Page 19...
  • Page 22 • Driving through water may affect the brakes. After driving through water, check effectiveness of the brakes by gently pressing the brake pedal. If the vehicle does not slow down at the normal rate, continue to press the brake pedal until the brakes dry out and normal performance returns. Page 20 Precedent Stretch Owner’s Manual...

  • Page 23: Transporting On A Trailer

    • For use on public roads, the trailer must meet all federal, state, and local requirements such as taillights, brake lights, etc. • Do not tow a Club Car vehicle behind a passenger vehicle or truck on a public road unless it is on an approved trailer.

  • Page 24: Storage - Electric Vehicle

    Adjust tires to recommended tire pressure. See Vehicle Specifications on page 35. Perform semiannual periodic lubrication. See Periodic Lubrication Schedule on page 27. Thoroughly clean front body, rear body, seats, battery compartment, and underside of vehicle. Page 22 Precedent Stretch Owner’s Manual...
  • Page 25 • Do not attempt to charge frozen batteries or batteries with bulged cases. Discard the battery. Frozen batteries can explode. Adjust tires to recommended tire pressure. See Vehicle Specifications on page 35. Perform the Pre-Operation and Daily Safety Checklist on page 17. Precedent Stretch Owner’s Manual Page 23...

  • Page 26: Maintenance

    Any vehicle not functioning correctly should be removed from use until it is properly repaired. This will prevent further damage to the vehicle and avoid the possibility of injury due to unsafe conditions. Contact your local Club Car distributor/dealer to perform all repairs and semiannual and annual periodic service. WARNING •...
  • Page 27 See Annual service by owner or trained Single Point Watering System) page 28. technician (or every 100 hours of operation, whichever comes first) Check safety decals. Replace if damaged or Safety decals illegible. Precedent Stretch Owner’s Manual Page 25...
  • Page 28 • If any problems are found during scheduled inspection or service, do not operate the vehicle until repairs are made. Failure to make necessary repairs could result in fire, property damage, severe personal injury, or death. Page 26 Precedent Stretch Owner’s Manual...

  • Page 29: Periodic Lubrication Schedule

    Check/fill transaxle to plug level SF, or SG Oil (or higher) only (or every 100 hours of operation, whichever comes Dupont™ Performance Dry Multi-Use Pedal group (as required) first) Lubricant 2455 Figure 11 Lubrication Points – Electric Vehicles Precedent Stretch Owner’s Manual Page 27...

  • Page 30: Batteries

    NOTE: Recycle or dispose of discarded batteries in accordance with local, state, and federal regulations. Club Car electric vehicles may be equipped with deep-cycle, flooded, lead-acid batteries, which are vented and require water to be added periodically. Automotive batteries should never be used in electric vehicles.
  • Page 31 Your local water company should be able to perform testing and compare their results to the chart. If using tap water, Club Car’s Service Parts Department offers two different deionizer systems: one for vehicles equipped with the Single Point Water System (SPWS) CC P/N AM1240701 and the other for vehicles without SPWS, CC P/N AM10974.
  • Page 32 (do not leave discharged overnight). 1. Level Indicator 2. Cap 3. Plates Maintain electrolyte level from at least ½ inch (13 mm) above plates to ¼ inch (6 mm) below level indicator. Figure 12 Battery Electrolyte Level Page 30 Precedent Stretch Owner’s Manual...
  • Page 33 • After checking the electrolyte, fully tighten the battery caps to prevent electrolyte leakage. After the initial six-week inspection, manually check the electrolyte level at least once per year, particularly after long-term storage or any other period of vehicle inactivity. See preceding CAUTION. Precedent Stretch Owner’s Manual Page 31...
  • Page 34 If the light indicates unacceptable water quality, the cartridge must be replaced. After ensuring adequate water flow rate and water quality, press the grey button (7) on the end of the female coupler (8) to disconnect the purger from the pressure regulator. Page 32 Precedent Stretch Owner’s Manual...

  • Page 35: Battery Charger

    Turn the water faucet off when finished filling the vehicle(s). BATTERY CHARGER Each electric vehicle is supplied with a fully automatic battery charger as standard equipment. Refer to the owner’s manual supplied with the battery charger for more information. Precedent Stretch Owner’s Manual Page 33...

  • Page 36: Cleaning The Vehicle

    SUBSEQUENT OWNER REGISTRATION In the event a vehicle is bought as a used vehicle, we strongly urge the new owner to register the vehicle with Club Car. This will enable us to contact you if the need arises. Please send your name, address, and serial number(s) of the vehicle(s) to Club Car, LLC, P.O.

  • Page 37: Vehicle Specifications

    *For vehicles with six 8-volt batteries, add 54 lb. (24.5 kg). 12-15 mph (19-24 Forward speed km/h) Curb clearance circle (diameter) 24 ft - 10 in. (757 cm) Standard seating capacity LIQUID CAPACITIES 22 oz. Transaxle (.67 liters) TIRE PRESSURE Precedent Stretch Owner’s Manual Page 35...
  • Page 38 18-20 psi (1.24-1.38 Front and rear bars) NOISE AND VIBRATION 68.5 dBA Drive-by noise level to operator Test method: EN 12053:2001 Uncertainty: 2 dBA 0.8 m/s Vibration at driver’s seat Uncertainty: 0.072 Test method:EN 13059:2002 Page 36 Precedent Stretch Owner’s Manual...

  • Page 39: Warranty

    Warranty WARRANTY Precedent Stretch Owner’s Manual Page 37...

  • Page 41: Ec Declaration Of Conformity

    Autorisierte r Hä ndle r, Re pre s e nta nt Dume nt Accré dité , Re pre s e nta nte Autoriza do, We ttige Ve rte ge nwoordiging, Re pre s e nta te Autoriza do, Ra ppre s e nta nte Autorizza to, Autoris cre t re præ s e nta nt, Auktoris e ra d re pre s e nta nt: Club Car Ingerso ll Ra nd Alma C ourt Building...
  • Page 45 Club Car NOTES...
  • Page 48 BC55869 Publication Part Number 103897206 Edition Code 1111B1111A This manual is valid for vehicles with build codes between 55137 and the one indicated at the top of this page.
