Channel Vision IW614 Instructions page 2

Model IW614
Channel Vision's ARIA™
installation speakers feature high power handling capability
providing true stereo quality sound and not simply
background music. The pivoting tweeters can be aimed to
any position to custom fit any room, making them perfect for
whole-house audio or home theater applications. High
quality materials ensure long life and great performance.
Gold speaker wire terminals not only provide better contact
surface but also offer less resistance to signal transfer for a
clearer sound.
Features:
6.5" High performance in-wall loudspeaker
h
High power handling capacity
h
Recommended power: 20W to 120W (peak)
h
Gold speaker terminals
h
Pivoting tweeter technology with 1" voice coil.
h
Kevlar woofer with butyl rubber surround and a 20 ounce
h
magnet
Small perforated designer grill
h
2

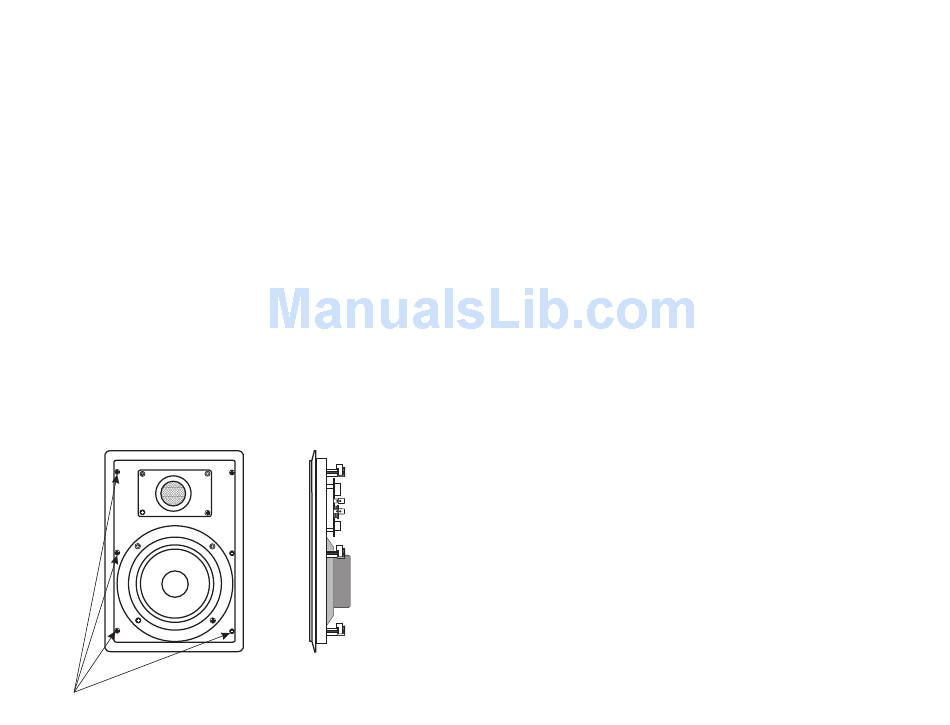

Mounting screws (6)
IW614 6.5" in- wall custom
Installation:
Use the provided template to mark and cut a hole in
h
drywall away in the center of the stud bay.
We recommend wiring with AWG 16 or larger, stranded
h
wire.
For proper phasing, both speakers must be wired alike.
h
Connect red wires to red terminals on the speakers and
to red or plus terminals on the amplifier.
Install I W6 14 in the hole. Tighten the mounting screws.
h
The mounting "dogs ears" will rotate outward and grip the
drywall. D O OT N O VER IGHTEN
operated drill on a "low clutch" setting is recommended.
Aim tweeter
h
To control the volume of the speaker locally, use an
h
impedance matching volume control, such as the
Channel Vision VC-302.
Specifications:
Frequency range: 50Hz - 20kHz ± 3dB
Crossover: 12dB/octive (low pass)
12dB/octive (high pass)
Sensitivity: 90dB (1W/1m)
Power Handling: 120 Watts peak
Drivers: 1- 1" Neodymium pivoting tweeter
1- 6.5" Kevlar woofer
Magnet: 20-ounce ferrite magnet
Impedance: 8 ohms
Finish: ABS plastic
Dimensions: 12.7"H x 9"W x 3.6"D
(Depth from surface of wall board)
hole size:
T the screws . A battery
10.75" x 7.75"
Specifications subject to change without notice.
