Channel Vision SOPRANO IW601 User Manual

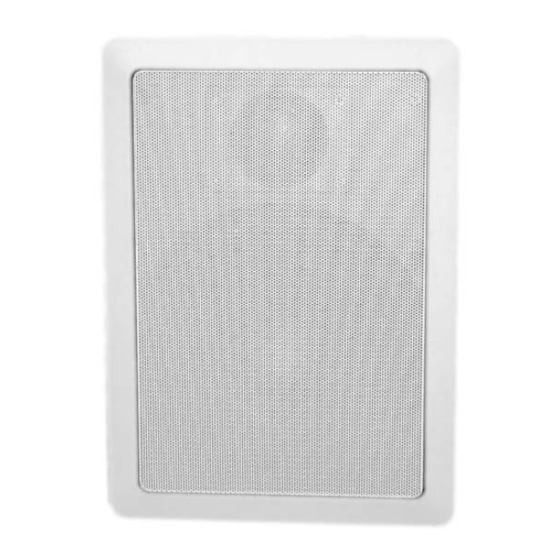

IW601 In-Wall "Soprano" Loudspeaker
• 6.5" High Performance In-Wall "Soprano" Loudspeaker.
• 2nd Order Linkwitz-Riley crossover, 12 dB per octave with poly switch for
tweeter protection.
• Tweeter: Proprietary pivoting "Pole Piece" technology with 1" voice coil,
enclosed, rare earth neodymium magnet, silk soft dome.
• Woofer: 6" Mica filled polypropylene, Butyl rubber surround with 18 oz
magnet.
• Small perforated designer grille.
• IR positionable template.
• 20-Watt RMS Min, 150-Watt Peak, 90 db sensitivity 1W/1m.
• 45Hz to 20Khz +/- 3 dB, 8-Ohm nominal impedance.
• Mounting template and paint shield included, rough in kit available.
C V
HANNEL ISION
C V Technology will repair or replace any defect in material or
HANNEL ISION
workmanship which occur during normal use of this product with new or rebuilt
parts, free of charge in the USA, for two years from date of original purchase.
This warranty does not cover damages in shipment, failures caused by other
products not supplied by C
HANNEL
misuse, or alteration of the equipment. This warranty is extended only to the
original purchaser, and a purchase receipt, invoice, or other proof of original
purchase date will be required before warranty repairs are provided.
Mail in service can be obtained during the warranty period by calling (714) 424-
6500. A Return Authorization number must be obtained in advance and be
marked on the outside of the shipping carton.
This warranty gives you specific legal rights, and may have other rights (which
vary from state to state). If a problem with this product develops during, or after,
the warranty period, please contact C
authorized service center.
™ Limited Warranty
V Technology, or failures due to accident
ISION
V , your dealer, or any factory-
HANNEL ISION
©2002 C
In-Wall "Soprano" Loudspeaker
C V
HANNEL ISION
(714) 424-6500 • (800) 840-0288 • (fax) (714) 424-6510
www.channelvision.com • (email) sales@channelvision.com
V
HANNEL ISION
A
RIA
by C V
HANNEL ISION
IW601
™ • 234 Fisher Avenue. Costa Mesa, CA 92626 (USA)
™
