2
PANEL DESCRIPTION

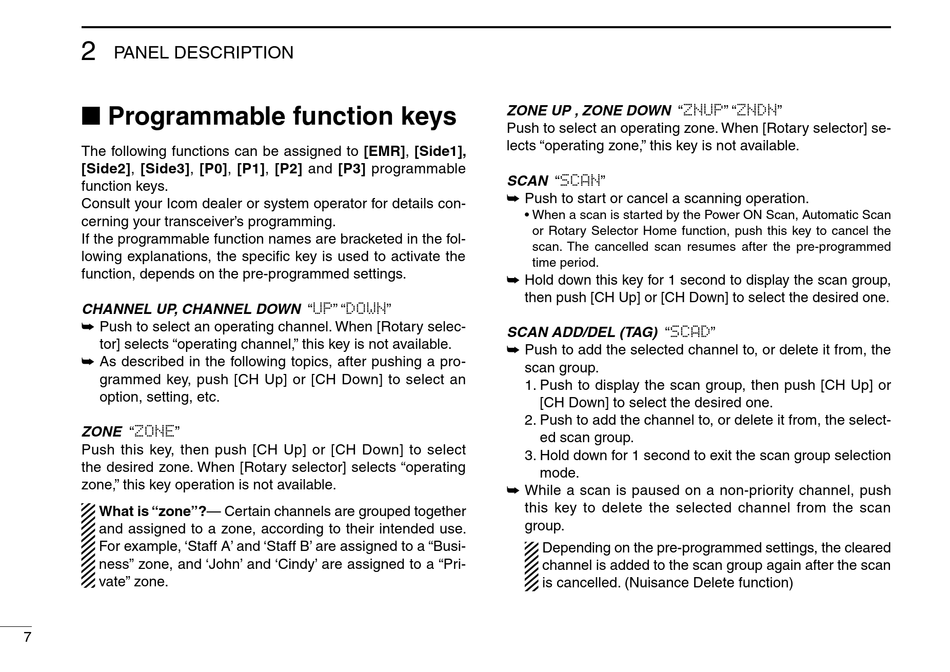

■ Programmable function keys

The following functions can be assigned to [EMR], [Side1],
[Side2], [Side3], [P0], [P1], [P2] and [P3] programmable
function keys.
Consult your Icom dealer or system operator for details con-
cerning your transceiver's programming.
If the programmable function names are bracketed in the fol-
lowing explanations, the specific key is used to activate the
function, depends on the pre-programmed settings.
CHANNEL UP, CHANNEL DOWN "UP" "DOWN"
➥ Push to select an operating channel. When [Rotary selec-
tor] selects "operating channel," this key is not available.
➥ As described in the following topics, after pushing a pro-
grammed key, push [CH Up] or [CH Down] to select an
option, setting, etc.
ZONE "ZONE"
Push this key, then push [CH Up] or [CH Down] to select
the desired zone. When [Rotary selector] selects "operating
zone," this key operation is not available.
What is "zone"?— Certain channels are grouped together
and assigned to a zone, according to their intended use.
For example, 'Staff A' and 'Staff B' are assigned to a "Busi-
ness" zone, and 'John' and 'Cindy' are assigned to a "Pri-
vate" zone.
7
ZONE UP , ZONE DOWN "ZNUP" "ZNDN"
Push to select an operating zone. When [Rotary selector] se-
lects "operating zone," this key is not available.
SCAN "SCAN"
➥ Push to start or cancel a scanning operation.
• When a scan is started by the Power ON Scan, Automatic Scan
or Rotary Selector Home function, push this key to cancel the
scan. The cancelled scan resumes after the pre-programmed
time period.
➥ Hold down this key for 1 second to display the scan group,
then push [CH Up] or [CH Down] to select the desired one.
SCAN ADD/DEL (TAG) "SCAD"
➥ Push to add the selected channel to, or delete it from, the
scan group.
1. Push to display the scan group, then push [CH Up] or
[CH Down] to select the desired one.
2. Push to add the channel to, or delete it from, the select-
ed scan group.
3. Hold down for 1 second to exit the scan group selection
mode.
➥ While a scan is paused on a non-priority channel, push
this key to delete the selected channel from the scan
group.
Depending on the pre-programmed settings, the cleared
channel is added to the scan group again after the scan
is cancelled. (Nuisance Delete function)
