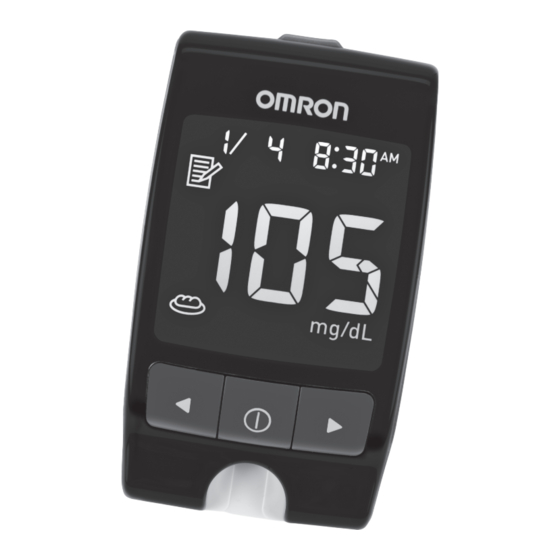

BLOOD GLUCOSE

MONITORING SYSTEM

HGM-111
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Omron HGM-111

Summary of Contents for Omron HGM-111

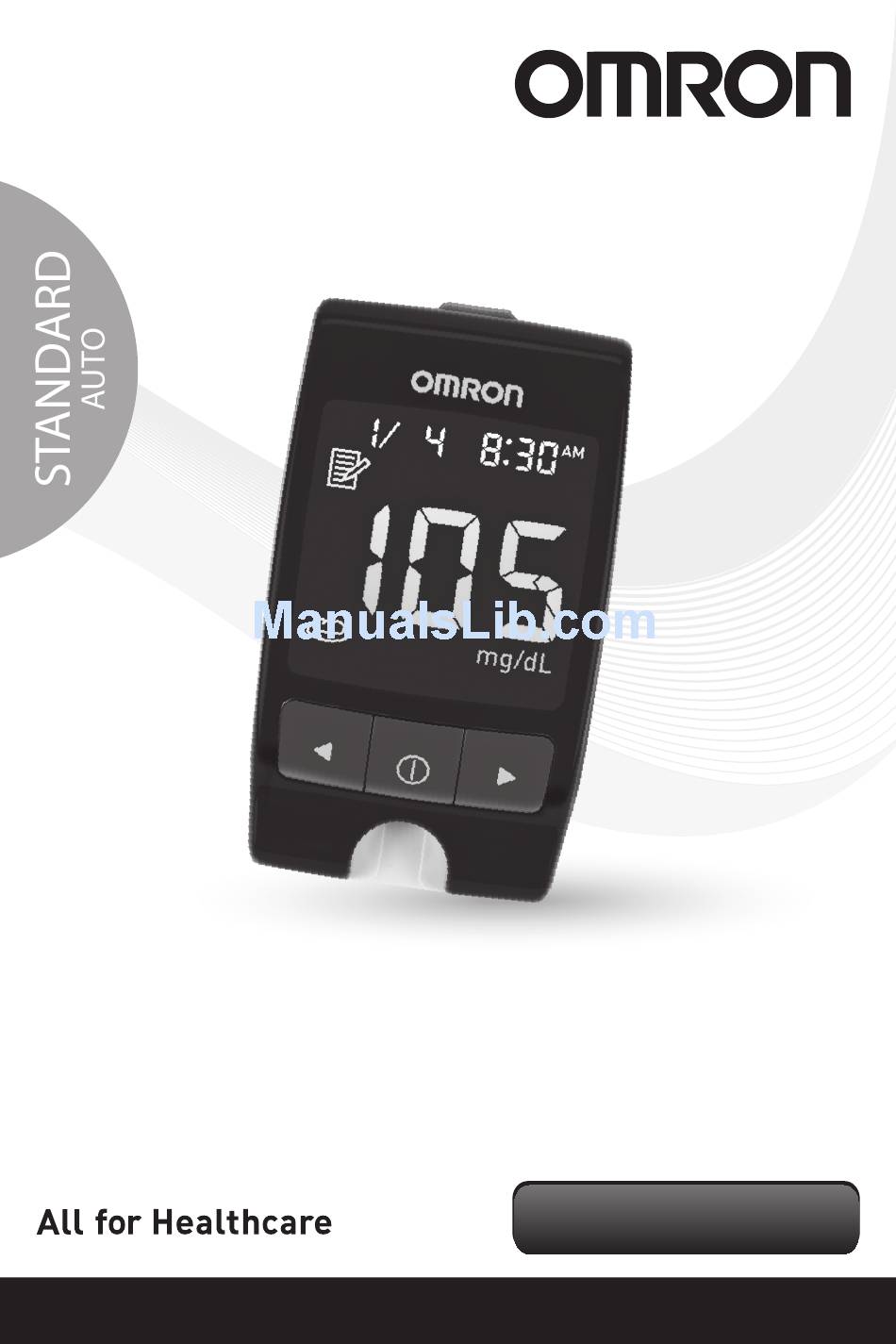

  • Page 1: Monitoring System

    BLOOD GLUCOSE MONITORING SYSTEM HGM-111 INSTRUCTION MANUAL...
  • Page 2 IMPORTANT SAFETY PRECAUTIONS READ BEFORE USE 1. Use this device ONLY for the intended use described in this manual. 2. Do NOT use accessories which are not specified by the manufacturer. 3. Do NOT use the device if it is not working properly or if it is damaged. 4.

  • Page 3: Table Of Contents

    1.1 Introduction 1.2 Intended use 1.3 List of Box Contents 1.4 Product and Meter Display Chapter 2 Installing and Setting up the HGM-111 meter 2.1 Inserting / replacing batteries 2.2 Setting up your HGM-111 meter 2.3 Performing a blood glucose test Chapter 3 Finger Blood Glucose Testing 3.1 Preparation before glucose testing...

  • Page 4: Chapter 1 Hgm-111 Blood Glucose System

    User needs to apply 1μL of fresh capillary whole blood for one test, and the test result will be displayed in 5 seconds. The strip ejection function of HGM-111 can help users avoid the risk of contamination after testing. Besides that, HGM-111 also has unique strip technology with auto coding system.

  • Page 5: List Of Box Contents

    5. Carrying Case 6. Instruction Manual 7. Log Book 8. CR2032 x 2 1.4 Product and Meter Display A. HGM-111 Blood Glucose Meter Display Cable Port Link with USB cable to download testing records to computers Meter Display Left Button...
  • Page 6 BLOOD GLUCOSE MONITORING SYSTEM-HGM-111 Battery Compartment Strip Ejection Button B. HGM-STP1A Blood Glucose Test Strip Top Edge - Apply blood sample here Confirmation Window Inserting Bar - Insert this test strip into the meter’s strip slot with this face up...
  • Page 7 BLOOD GLUCOSE MONITORING SYSTEM-HGM-111 C. Function Display AC (Before Meal) CS (Control Solution) PC (After Meal)

  • Page 8: Chapter 2 Installing And Setting Up The Hgm-111 Meter

    3. Push back the battery compartment until hearing a “click” sound. 4. Try to turn on the device to see whether the HGM-111 can be powered on. If not, please check the above steps. 5. After turning on the HGM-111 meter, it will enter into Buzzer and date setting mode directly.
  • Page 9 BLOOD GLUCOSE MONITORING SYSTEM-HGM-111 Push b. Take out and insert new batteries a. Open battery compartment Push c. Push back the battery compartment Warning: Dispose of old batteries according to your local environmental regulations.

  • Page 10: Setting Up Your Hgm-111 Meter

    2.2 Setting up your HGM-111 meter How to enter the setting mode 1. Replace the batteries. 2. Press and hold middle button when HGM-111 under waiting mode. How to set up the Buzzer On/Off and date A. Setting Buzzer On/Off and the date...
  • Page 11 BLOOD GLUCOSE MONITORING SYSTEM-HGM-111 2. Setting the year Once you enter the date setting mode, the last two digits of the year will flash. (1) Click the right button to increase the year. (2) Click the left button to decrease the year.
  • Page 12 BLOOD GLUCOSE MONITORING SYSTEM-HGM-111 4. Setting the day Once you enter the date setting mode, the date field will flash. (1) Click the right button to increase the day. (2) Click the left button to decrease the day. (3) Click the middle button to save your setting. The display will now enter the hour setting mode.
  • Page 13 BLOOD GLUCOSE MONITORING SYSTEM-HGM-111 6. Setting the Minute Once you enter the minutes setting mode, the minute field will flash. (1)Click the right button to increase the minute. (2)Click the left button to decrease the minute. (3)Click the middle button to save your setting.

  • Page 14: Performing A Blood Glucose Test

    2.3 Performing a blood glucose test A. Inserting a test strip 1. Insert the test strip into strip slot correctly; the HGM-111 meter will turn on. All LCD segments will display for 1 second. 2. Then the display will show the latest test result for 2 seconds.
  • Page 15 BLOOD GLUCOSE MONITORING SYSTEM-HGM-111 C. Test blood glucose 4. After apply sample, the test result will show on display after 5 seconds. There is mg/dL test unit showing on display.

  • Page 16: Chapter 3 Finger Blood Glucose Testing

    Please prepare materials you need as listed below and read this instruction manual or test strip manual to ensure the correct measuring process and results. □ HGM-111 Blood Glucose Meter □ HGM-STP1A Blood Glucose Test Strip □ Antiseptic wipes or alcohol wipes □...
  • Page 17 BLOOD GLUCOSE MONITORING SYSTEM-HGM-111 a. Unscrew the adjustable tip of the lancing device. b. Install the lancet. c. Twist off the protective cap from the lancet. d. Replace the adjustable tip of lancing device and adjust the puncture depth.
  • Page 18 Warning: Sterile lancet is single use only, can not reuse. C. Preparation of test strip 4. Insert the test strip into the strip slot correctly and the HGM-111 meter will turn on. All LCD segments will display for 1 second.
  • Page 19 BLOOD GLUCOSE MONITORING SYSTEM-HGM-111 5. The display will show the latest test result and then strip symbol and drop symbol will appear. 2 Sec D. Wash your hands and the puncture site 6. Wash hands with soap and warm water. Rinse and dry thoroughly.
  • Page 20 BLOOD GLUCOSE MONITORING SYSTEM-HGM-111 F. Blood glucose test 9. Touch the blood drop to the tip of the confirmation window of test strip. The test result will appear on the display after 5 seconds. Warning: Do not smear blood on the strip, only touch blood to the tip of the strip.
  • Page 21 BLOOD GLUCOSE MONITORING SYSTEM-HGM-111 The following items will cause inaccurate results: □ The reaction zone does not fill completely. □ Applying blood more than once. □ Applying blood to test strip after a period of time. □ Sudden or Huge variation of environment during measurement.
  • Page 22 BLOOD GLUCOSE MONITORING SYSTEM-HGM-111 H. Strip ejection 11. Press the strip ejection button to remove the strip to avoid blood contamination. Push Notice: The meter will turn off automatically after removal of the test strip. I. Dispose of used strip and lancet properly Warning: Please follow proper precautions in accordance with local regulation when disposing of all materials.

  • Page 23: Alternate Site Testing (Ast)

    BLOOD GLUCOSE MONITORING SYSTEM-HGM-111 Important: □ Do not use test strips more than once. □ It should not be used for testing newborns. □ It should be used only for testing fresh capillary whole blood. □ It should not be used for venous whole blood or plasma.
  • Page 24 8. Slightly touch the top of strip with the blood to make enough blood filled in strip; you can get the test result after 5 seconds. Warning: The AST function of HGM-111 meter only can be used for palm, not for other sites such as upper arm, forearm ……etc.

  • Page 25: Chapter 4 Glucose Control Solution Testing (Optional)

    When the control result is within the range on the test strip container, the test strips and meter are working properly. Important: □ Use Only the OMRON control solution with the HGM-111 meter and HGM-STP1A strips. □ Mark the newly opened bottle of control solution with the date opened;...
  • Page 26 BLOOD GLUCOSE MONITORING SYSTEM-HGM-111 Running a Control Test: 1. Preparing a Test Strip 1) Insert the test strip into the meter. The meter will display the last measurement data. 2) When the screen shows the drop blood symbol, press and hold the middle button to enter control solution test mode.
  • Page 27 BLOOD GLUCOSE MONITORING SYSTEM-HGM-111 2. Running the Glucose Control Solution Test 3) Before using the control solution, gently shake the control bottle to mix well. 4) Remove the control bottle cap and wipe the tip of the bottle with a tissue.
  • Page 28 □ Are the test strips or control solution past the “expired date or discard date? □ Is there a HGM-111 meter defect in materials or workmanship? Repeat the control test with a new test strip. If you still have any problem,...

  • Page 29: Chapter 5 Memory Function

    Chapter 5 Memory Function 5.1 Reviewing result records 1. Press the middle button shortly, the HGM-111 meter will turn on. All LCD segments will display for 1 second. Then the display will show the latest test result for 2 seconds, and enter the waiting mode.

  • Page 30: Chapter 6 Caring For Your Strips And Meter

    BLOOD GLUCOSE MONITORING SYSTEM-HGM-111 HGM-111 is able to store up to 512 test results together with date and time, but control solution results can not be used for average calculation. This product provides data transmission function for long term blood glucose monitoring and reference;...

  • Page 31: Chapter 7 Troubleshooting

    BLOOD GLUCOSE MONITORING SYSTEM-HGM-111 Chapter 7 Troubleshooting When the meter is used incorrectly, in poor condition, or other unexpected events happen, the screen will show the error message to remind the user should notice the problem or show how to resolve them.

  • Page 32: Chapter 8 Hgm-111 Performance Characteristics

    BLOOD GLUCOSE MONITORING SYSTEM-HGM-111 Chapter 8 HGM-111 Performance Characteristics Traceability: The test result of HGM-111 blood glucose meter is plasma calibrated by chemistry analyzer, and the analyzer was calibrated with a NIST traceable glucose standard solution. Measurement range: HGM-111 meter display results between 20 ~ 600 mg/dL.

  • Page 33: Chapter 9 Specifications

    Weight: 70 g with batteries Power Supply: two CR2032 batteries Transmission: users can upload data to PC via transmission function. Storage temperature: -20 C~50 C (-4 F~122 F) Please protect the HGM-111 from impact Please do not disassemble the HGM-111...
  • Page 34 BLOOD GLUCOSE MONITORING SYSTEM-HGM-111 Note: This device contains data transmission function via USB cable. As the USB cable is specifically designed for the device, for correct operation, please contact your distributors if you would like to execute this function. Note: The measurement unit either mg/dL or mmol/L is fixed in the meter according to the country demand.
  • Page 35 BLOOD GLUCOSE MONITORING SYSTEM-HGM-111 Lancing Device and Lancets: SteriLance Medical(Suzhou) Inc. No. 68, Litanghe Road, Xiangcheng, Suzhou, 215133, China Emergo Europe Molenstraat 15, 2513 BH The Hague, The Netherlands 0197 TEL:(31)(0) 70 345-8570 FAX:(31)(0) 70 346-7299 Blood Glucose Meter, Test Strip and Control Solution: DELBio, INC.
  • Page 36 Distributed by OMRON HEALTHCARE SINGAPORE PTE LTD. 438A Alexandra Road, #05-05/08 Alexandra Technopark, Singapore 119967 www.omron-healthcare.com.sg DELBio, INC. 3F, No.252, Shangying Road, Guishan Industrial Zone, Taoyuan County 33341, 5011556100 Taiwan 12-12 REV.00 DELTRONICS (NETHERLANDS) BV Zandsteen 15, 2132 MZ Hoofddorp, The Netherlands...
