Page 1: Included Accessories

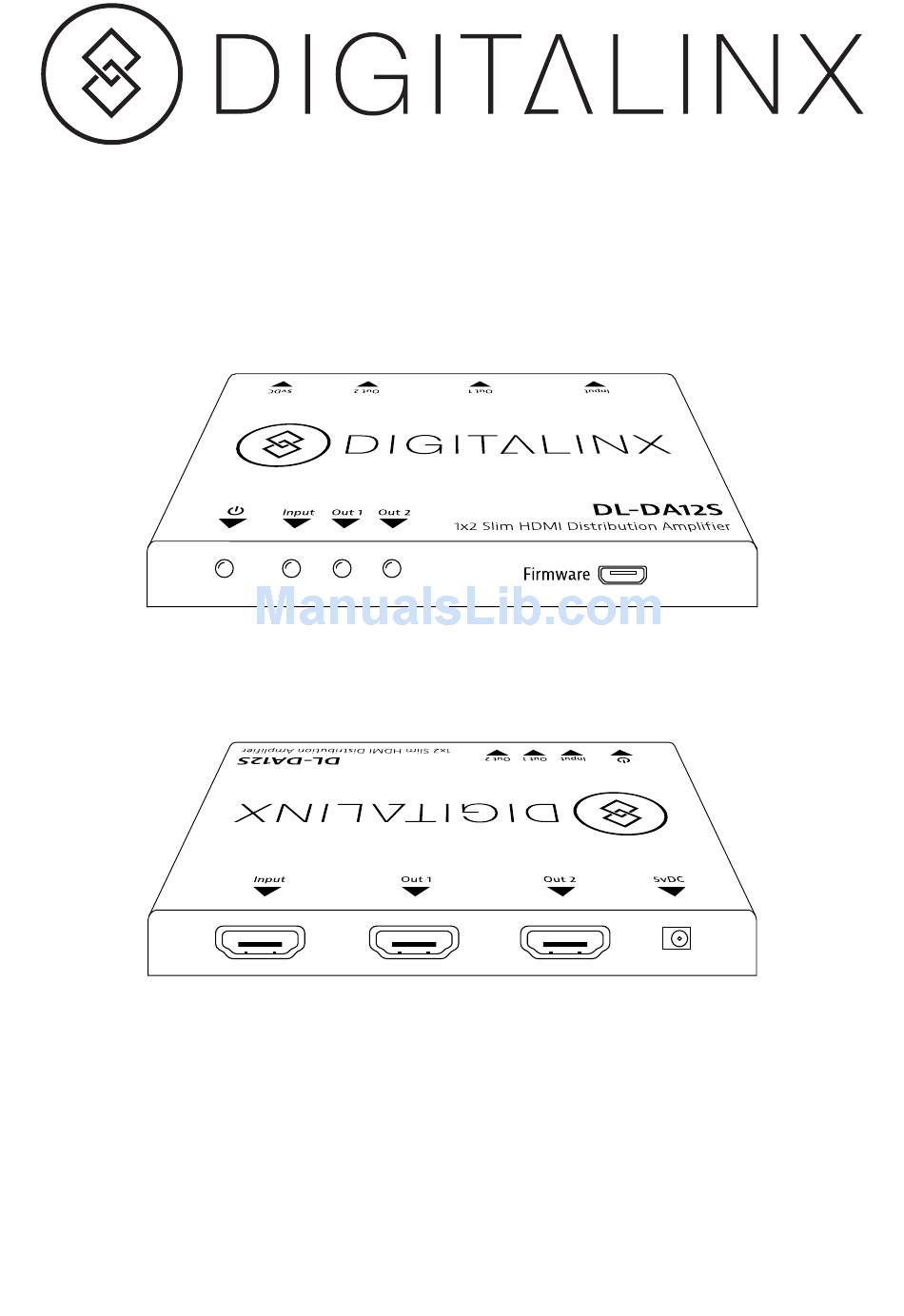

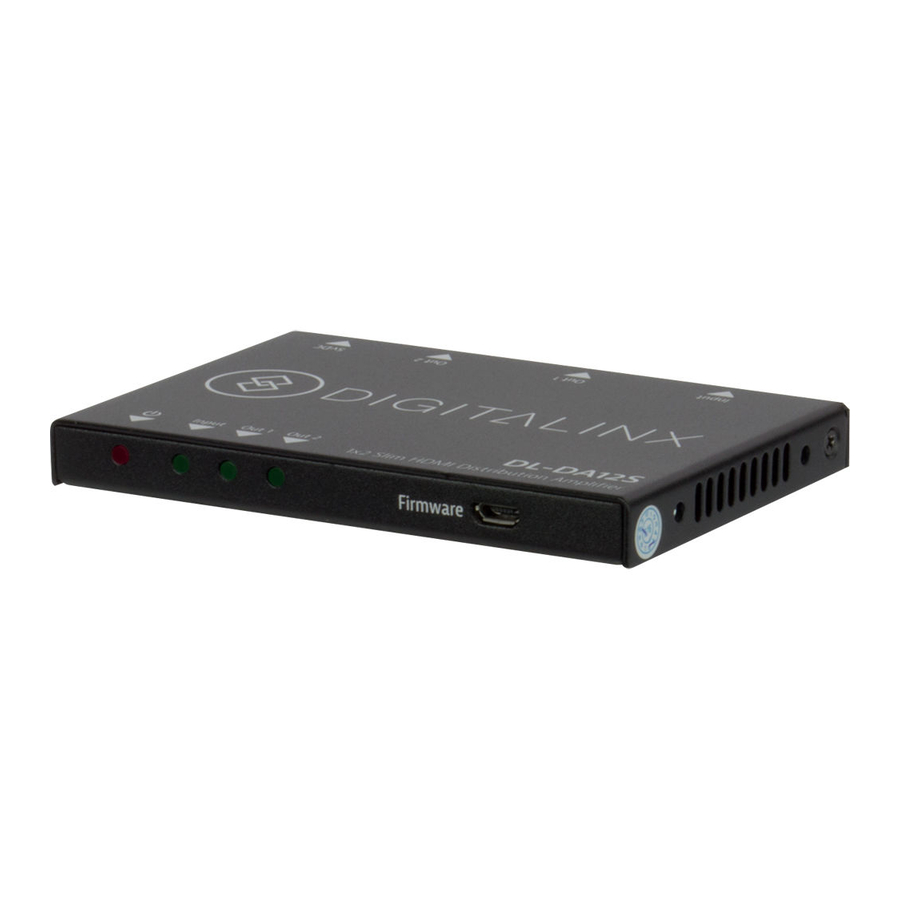

DL-DA12S Installation Guide Included Accessories: • Installation guide • Power supply • AC adapters (AU, EU, UK, and US) • Rubber feet • Mounting “L” brackets (2 ea) • Mounting screws (4 ea) -
Page 2: Edid Management
Diagnostic LEDs: The DL-DA12S provides four LEDs to indicate the current operating status and to assist troubleshooting an installation. Power: Solid, the DL-DA12S is receiving power from the power supply. -
Page 3: Troubleshooting Tips
3. If the DL-DA12S is to be resting on a finished surface, attach the included rubber feet to the bottom of the device to prevent any damage to the surface. -
Page 4: Technical Specifications
Technical Specifications I/O Connections HDMI Input One (1) HDMI Type A Receptacle HDMI Outputs Two (2) HDMI Type A Receptacle (1 per output) 5v DC Power One (1) 2.35 mm Outside Diameter, 0.7 mm Inside Diameter Barrel (EIAJ-1) Firmware Port One (1) Mini USB Type B Receptacle Supported Audio and Video Maximum Data Rate...
