DigitaLinx DL-ARK Series Quick Install Manual

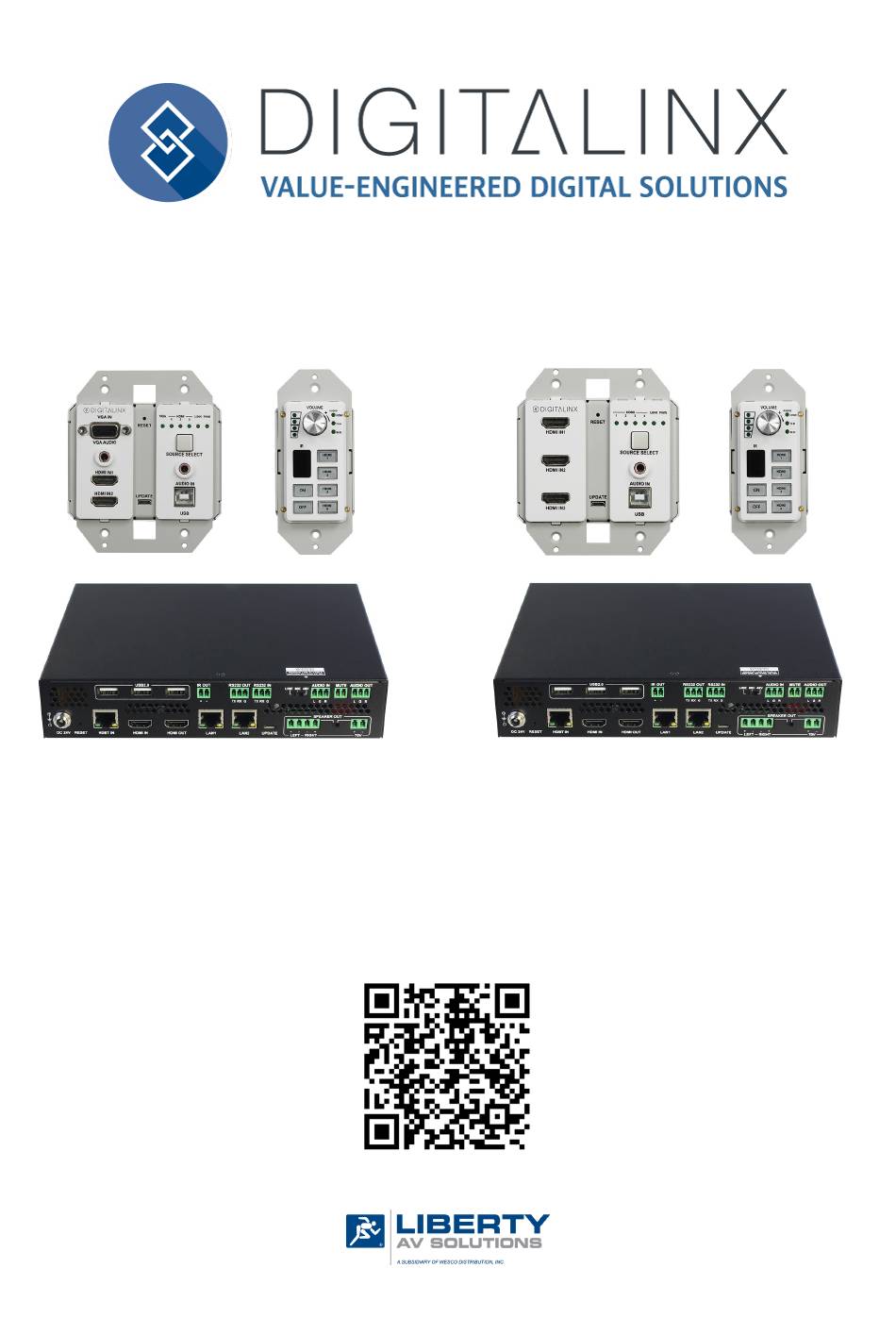

DL-ARK Quick Install Guide

DL-ARK-3H1VC

DL-ARK-4HC

This guide is for quick installation only.

For complete owners manual go to www.libav.com or use a QR reader to access the

manual via QR code below.

Scan QR Code with your Smart-phone or Tablet

Rev 190306

11675 Ridgeline Drive

Phone: 719-260-0061

Colorado Springs, CO

Toll-Free: 800-530-8998

80921

Fax: 719-260-0075

Table of Contents

Need help?

Do you have a question about the DL-ARK Series and is the answer not in the manual?

Page 1 DL-ARK Quick Install Guide DL-ARK-3H1VC DL-ARK-4HC This guide is for quick installation only. For complete owners manual go to www.libav.com or use a QR reader to access the manual via QR code below. Scan QR Code with your Smart-phone or Tablet Rev 190306 11675 Ridgeline Drive Phone: 719-260-0061...
Page 2: Product Overview
DL-ARK Quick Guide Product Overview The Digitalinx DL-ARK Advanced Room Kit is a multi-function A/V distribution and push button control system designed to provide audio, video and USB 2.0 data extension with complete system control all in one convenient system. Only two solid core, shielded Category 6 cables are required to connect the entire system together which consists of one HDBaseT wall plate transmitter, one HDBaseT receiver and one keypad controller.
Page 3 DL-ARK Quick Guide Connectivity Instructions 1. Verify all components included with the DL-ARK A/V system are present before installation. 2. If the receiver is going to be permanently mounted to a surface or A/V box, attach the included mounting brackets with the supplied screws. 3.
