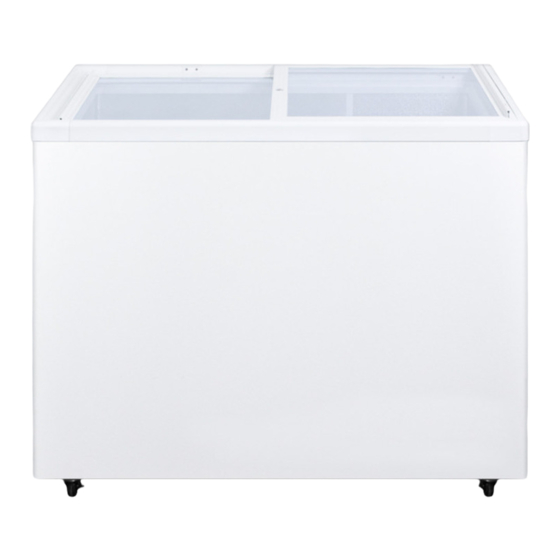

Summit SCF1076 Instruction Manual

Commercial ice cream freezers
Hide thumbs
Table of Contents

Advertisement

Quick Links

COMMERCIAL
ICE CREAM FREEZERS
Models SCF1076 & SCF1476
Instruction Manual
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Write Model No. and Serial No. (on rating
label) here:
Model No. ________________________
Felix Storch, Inc.
770 Garrison Avenue
Serial No. _________________________
Bronx, NY 10474
www.summitappliance.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCF1076 and is the answer not in the manual?

Questions and answers

Related Manuals for Summit SCF1076

Summary of Contents for Summit SCF1076

  • Page 1 COMMERCIAL ICE CREAM FREEZERS Models SCF1076 & SCF1476 Instruction Manual BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Write Model No. and Serial No. (on rating label) here: Model No. ________________________ Felix Storch, Inc. 770 Garrison Avenue Serial No.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Appliance Safety ................. Important Safeguards ..............Location of Parts, Control Panel ..........Technical Information ..............Installation Instructions ............. Moving and Installing Your Appliance ........Attaching the Casters ............. Electrical Connection .............. Extension Cord ............... Operating Your Appliance ............Turning On the Freezer ............

  • Page 3: Appliance Safety

    APPLIANCE SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. The symbol alerts you to potential hazards that can kill or injure you and others.
  • Page 4  Do not connect or disconnect the electric plug when your hands are wet.  Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in electrical shock or death.  Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this manual.

  • Page 5: Location Of Parts, Control Panel

    LOCATION OF PARTS Handle Flat sliding glass doors Lock Food basket Drain hole Control panel Ventilation slots Caster Power cord Control Panel For ice cream storage, use settings 4 -6 Temperature Control Panel Control Temperature Temperature Freeze/Refrigeration Panel of evaporator inside cabinet status Setting...

  • Page 6: Technical Information

    TECHNICAL INFORMATION Model SCF1076 SCF1476 Installation Free-standing Free-standing Capacity 10.6 ft 14.1 ft Electrical Input 115V AC 60Hz 115V AC 60Hz Power Input 210W 205W Rated Current 3.3A 2.05A Refrigerant R134a, 4.56 oz R134a, 4.74 oz Unit Weight 115 lbs...

  • Page 7: Attaching The Casters

    Attaching the Casters Machine bottom board Screw Caster Screw Caster 1. Slide the casters into the slots of the Machine bottom board. 2. Align the holes in the caster brackets with the holes in the Machine bottom board. 3. Fasten the screws in the diagonal holes for each caster (2 screws per caster). Electrical Connection Improper use of the grounded plug can result in the risk of electrical shock.

  • Page 8: Extension Cord

    The appliance should always be plugged into an exclusive, properly grounded wall outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevents overloading wiring circuits that could cause a fire hazard from overheating. Never unplug the appliance by pulling on the power cord.

  • Page 9: Defrosting The Unit

    warm food into the unit. Only foods at room temperature or already frozen should be put into the freezer.  Never store any flammable, explosive or corrosive materials in or near the freezer.  Beer and other beverages, fresh flowers, medicine and injectables should not be placed in the freezer.

  • Page 10: Power Failure

    cleaning the area where the controls are located, or any electrical parts.  Use warm water to clean oil or fruit juice stains on the door gasket to retain its elasticity. Putting a little talcum powder on the surface of the gasket will prolong its service life.

  • Page 11: Troubleshooting

    If the freezer develops problems that cannot be solved by referring to the chart above, do not try to dismantle the unit yourself. This could void your warranty. Instead, refer to an authorized service center or call SUMMIT Customer Service at 1-800-932-4267.

  • Page 12: Limited Warranty

    LIMITED WARRANTY ONE-YEAR LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company.
