Summary of Contents for Lindy KVM EXTENDER 32357

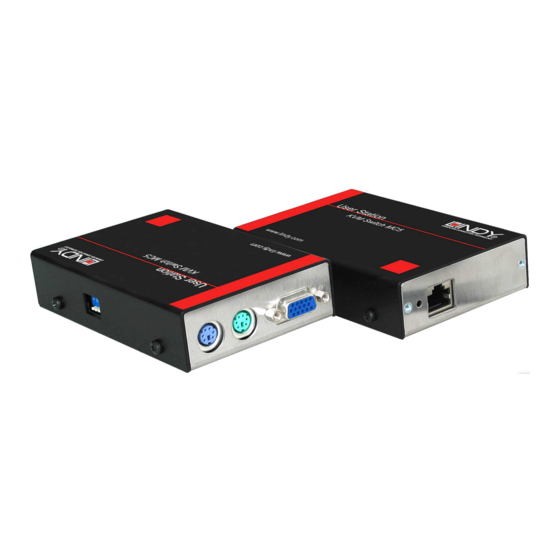

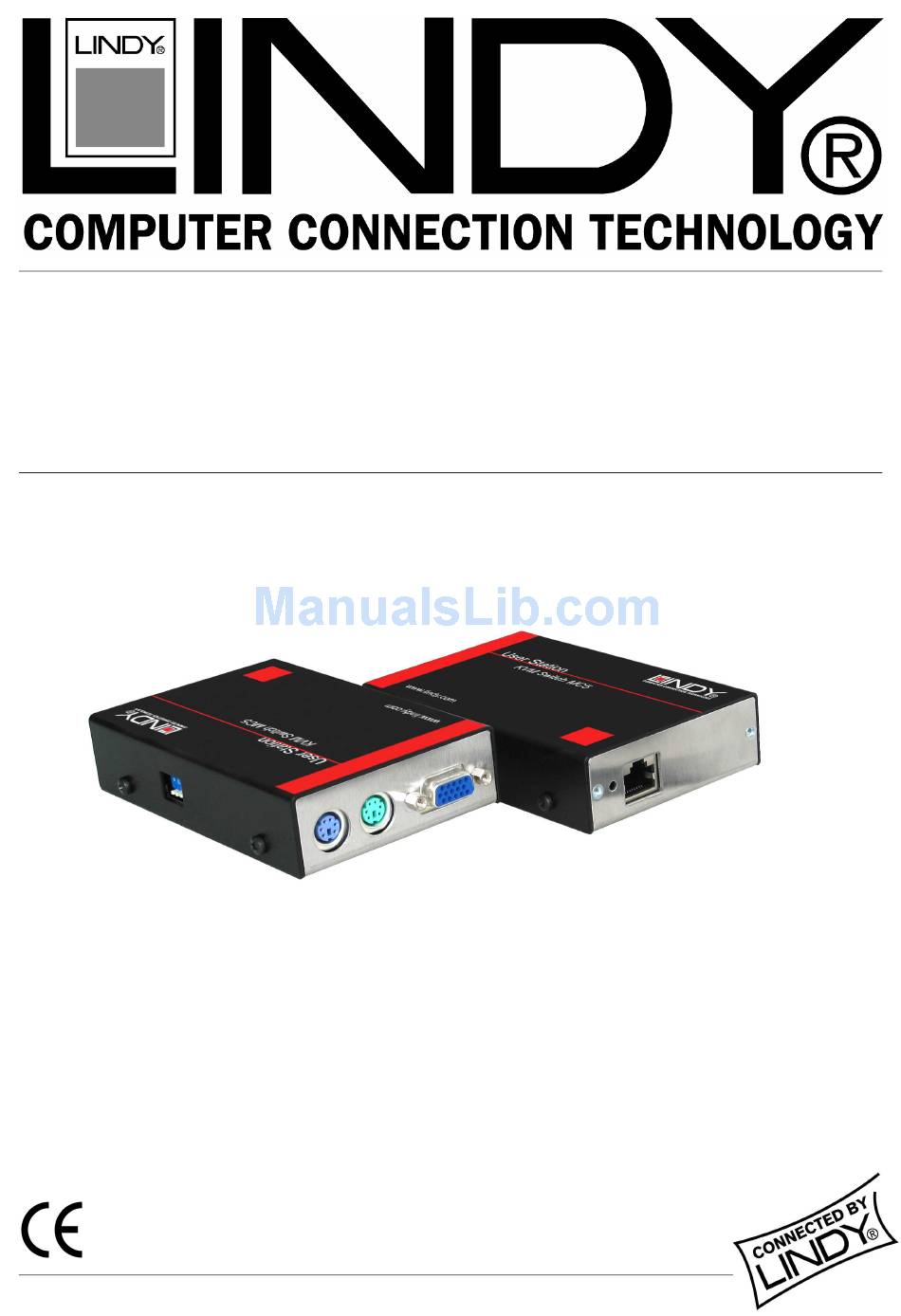

- Page 1 KVM Extender User Station & User Manual LINDY No. 32357, 32358, 32359 Tested to Comply with FCC Standards For Commercial Use Only! © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - SECOND EDITION (FEB 2008) Cat.5 KVM Extender LINDY No. 39356, 39357 www.LINDY.com English...
- Page 2 (where x means category 5, 5e or 6) to provide high quality linking plus ultimate flexibility for installers and operators alike. The User Stations can be either used in conjunction with LINDY MC5 KVM Switches or also as a CAT.5 Extender Product in combination with the Computer Access Modules (CAM). In the latter case a USB User Station can be used with a PS/2 CAM and vice versa.
- Page 3 English Manual Computer Access Modules (CAMs) There are five different formats, depending on the required computer connections. It is possible to combine USB user Stations with PS/2 CAMs and PS/2 User Stations with USB CAMs. If CAMs are used in combination with the MC5/-IP KVM Switches a dedicated video compensation should be used for each CAM that uses a CAT.5 cable longer than 10m.
-
Page 4: Installation
English Manual Installation To connect a remote user 1 Place a User Station extender unit adjacent to the remote user location. 2 Attach the video monitor, keyboard, mouse, power adapter (and speaker) connectors to the sockets of the User Station module. 3 Lay a suitable length of category 5, 5e or 6 cabling between the User Station module and the MC5 unit... -
Page 5: Operation
English Manual Operation Selecting and using computers To select a system using the keyboard: Use the hotkey to switch between the two computer systems. In each case, you need to simultaneously press the currently configured hotkeys (by default, CTRL and SHIFT) together with the number of the required system 1 or 2. - Page 6 (provided only by advanced video 300m User Station C5 Pro and USB 300m modules) or the uses of a separate Skew Compensator (LINDY part no. 39389) - see the details.
-
Page 7: English Manual
English Manual To display a suitable high contrast image The best way to clearly view the effect of sharpness and brightness adjustments is to display a high contrast image, with vertical edges, on the screen. • Open a word processor, type the capital letter ‘H’, or ‘M’... - Page 8 English Manual 5. When no shadows are visible and the displayed images have crisp edges, press <RETURN> to exit configuration mode and permanently save all settings. The new compensation settings will be stored, even when power is removed or if a complete reset is initiated.
- Page 9 English Manual create breaks across the colours and give you more opportunities to view the horizontal position of each colour relative to the others. 2. On the remote user keyboard (connected to a User Station C5 Pro or C5 USB 300), simultaneously, press the hotkeys (by default, <CTRL>...
-
Page 10: Fcc Warning
Sammelsystemen bzw. örtlichen Sammelstellen zugeführt werden! Dort werden sie kostenlos entgegen genommen. Die Kosten für den weiteren Recyclingprozess übernimmt die Gesamtheit der Gerätehersteller. B2B Geräte wie 19“ KVM Switches und ihr Zubehör nimmt der Hersteller LINDY kostenlos zurück und führt sie sodann auf LINDYs Kosten dem geregelten Recyclingprozess zu.
