IP ADDRESSING

Both of the SLB network ports (Eth1 and Eth2) default to DHCP-assigned
IP addresses. If you want to assign a different IP address, it must be within
a valid range, unique to your network, and with the same subnet mask as
your workstation.
To configure the SLB, you need the following information:
IP address (if not already assigned): ______ . ______ . ______ . ______
Subnet mask (if not already assigned): ______ . ______ . ______ . ______
Gateway: ______ . ______ . ______ . ______
DNS: ______ . ______ . ______ . ______
8
Q u i c k S t a r t G u i d e

CONFIGURING NETWORK (IP) SETTINGS

The fastest way to set basic network parameters is by using the front panel
keypad and display.
Note: If you prefer, you can get started by following a Quick Setup script on the
command line interface using Telnet or SSH, or by connecting a terminal directly to
the console (RS-232) port.The web page interface also provides a Quick Setup page.
See Quick Setup in the User Guide for instructions.

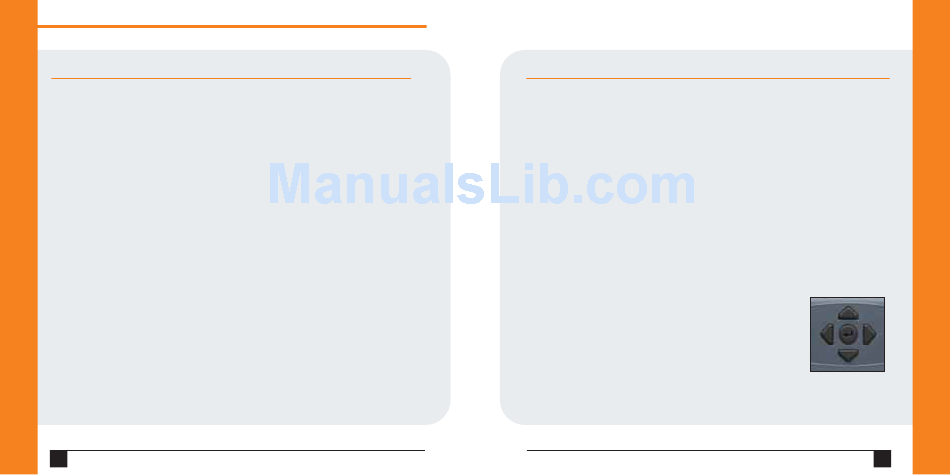

• Use the right and left arrow buttons to navigate from one option to another.
• Use the up and down arrow buttons to navigate between parameters
within an option or to increase or decrease a numerical value.
• Use the Enter button in the center to enter or exit editing mode and
to save changes.
Note: If no buttons are pressed for 30 seconds, the front panel display times out with-
out accepting unsaved changes and returns to displaying the hostname and clock.
For example, to change the IP settings:
1. Press the right arrow button to display the Network
Settings option and the current IP address.
2. Press the Enter button to go into editing mode.
3. Use the up and down arrow buttons to increment or
decrement the IP address indicated by the cursor.
4. Use the right and left arrow buttons to move to and
change the remaining digits of the IP address. Press the Enter button to exit
editing mode when finished.
