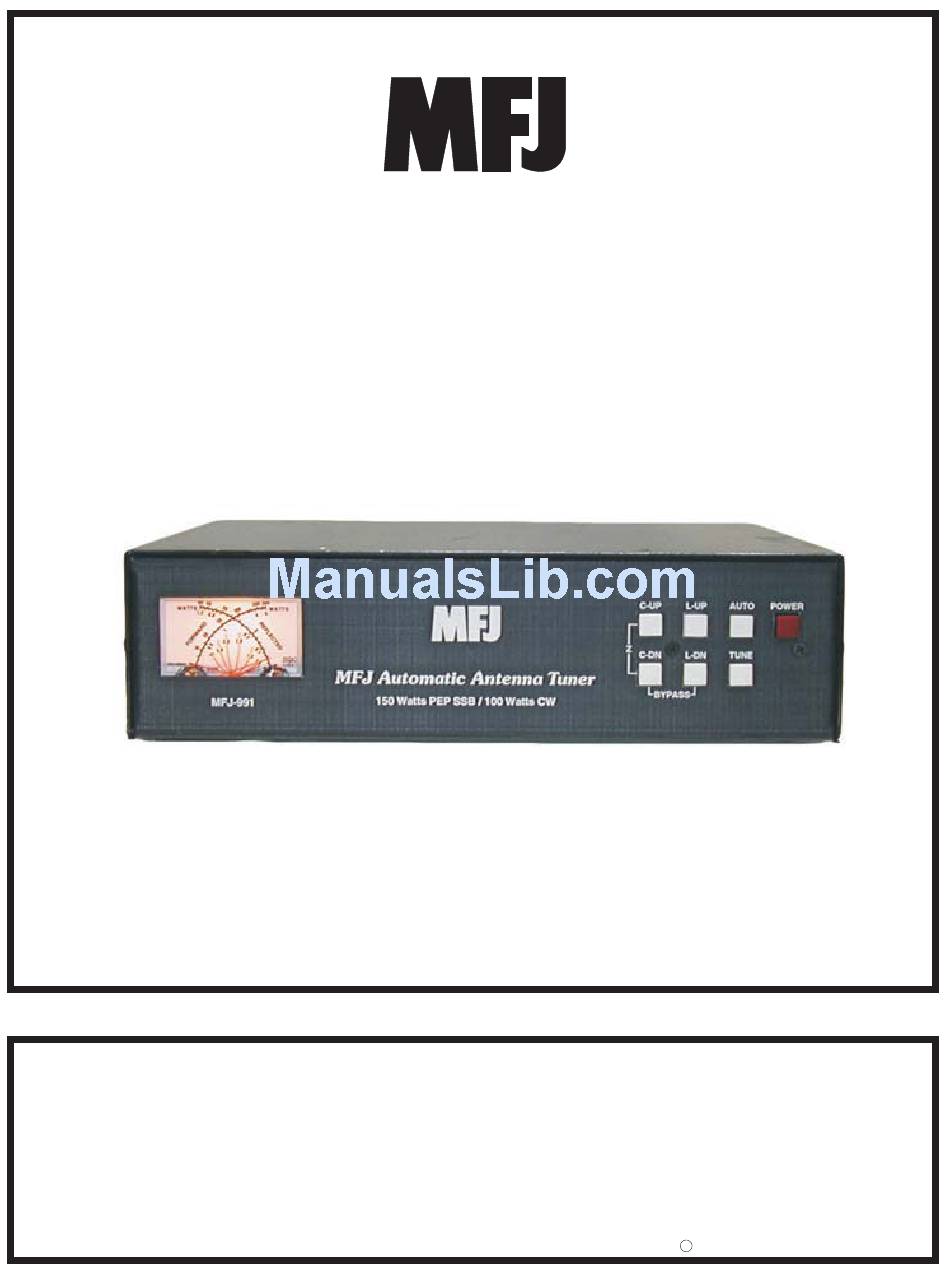

IntelliTuner
TM
Automatic Antenna Tuners
Models MFJ-991 and MFJ-994
INSTRUCTION MANUAL
CAUTION: Read All Instructions Before Operating Equipment
MFJ ENTERPRISES, INC.
300 Industrial Park Road
Starkville, MS 39759 USA
Tel: 662-323-5869 Fax: 662-323-6551
C
COPYRIGHT
2004 MFJ ENTERPRISES, INC.
VERSION 1A
