CRAIN 795 Toe-Kick Instruction Manual

DIAMOND BLADE
A diamond blade is available
as an accessory. It's used to
saw out tile under toe spaces
or on counters. Also, for
tile repair, it can be used to
remove field tiles.
Caution: Do not overheat
this blade! Cut 6ft. maximum and allow cooling. Avoid
cutting into wood subfloors as this gums up the diamond
grit. For best results, shim up the saw to approximate tile
thickness. Make sure no chicken wire or expanded metal
has been installed under tiles to be cut.
REpLACEMENT
1795-U
1795-T
pARTS:
1795-S
1795-R
1795-B
1785-C
1785-B
1785-E
1785-F
1800-V
1800-U
Order No. Description
1795-A 120V Power Unit
1795-B Housing Complete
(incl. P/N 1795-H)
1795-H Spindle and Driver Assembly**
1795-G* Carrying Case (not shown)
1795-J Brush Set (not shown)
1795-K Power Cord (not shown)
1795-L Switch (not shown)
1795-M Carrying Case Latch Set (2) (not shown)
1795-N Spindle w/ Gear (not shown)
1795-O Armature w/ Fan (not shown)
PARTS IN COMMON WITH THE NO. 785
1785-B Blade Guard
1785-C Return Spring
1785-E Blade Guard Retainer Ring
1785-F Blade Driver
1800-U Socket Set Screw
1800-V Allen® Wrench
* Same for all previous models.
** Due to many revisions, it has become unfeasible to sell
these parts separately.
DUST HAZARD WARNING:
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities contains chemicals
known to the State of Californina to cause cancer, birth
defects or other reproductive harm. Some examples of
these chemicals are:
• Lead from lead-based paints,
• Crystalline silica from brick, cement and other
masonry product, and
• Arsenic and chromium from chemically-treated
lumber.
Your risk from these exposures varies, depending on how
often you do this type of work. To reduce your exposure
to these chemicals: work in a well-ventilated area, and
work with approved safety equipment, such as those dust
masks that are specially designed to filter out microscopic
particles.
SAW SpECIFICATIONS:
ELECTRICAL: 120 VAC, 11 AMPs, 60 HZ Double Insulated,
1795-A
REP. BLADE:
GROSS WT:
MIN./MAX. DIMS. FOR TOE-KICK TO BE CUT:
A MIN. HEIGTH: 3
C MAX. FLOOR THICKNESS:
C MIN. FLOOR THICKNESS:
1795-H
This Crain tool is guaranteed to be free of defects
due to faulty materials or workmanship for a
period of 6 months.
During this period, any parts of tools found defective
subject to the guarantee will be replaced at no charge.
Returns should be sent freight PREPAID, in assembled
condition and with a copy of the Bill of Sale (proof of
purchase) to CRAIN CUTTER COMPANY, 1155 Wrigley
Way, Milpitas, CA 95035. New tools or loaners will not
be given for those pending warranty repairs.
No claims shall exceed in amount the suggested sales
price of the product. No other guarantee, oral or writ-
ten, is expressed or implied.
DATE OF MFG.
1155 WRIGLEY WAY, MILPITAS, CA 95035-5426
TEL: 408-946-6100
Printed by: HW 3M
2 1 / HP Motor, No Load Speed 4500 RPM
2
#787 or #788 Carbide, #789 Diamond
11.8 LBS.
˝ ˝
/ B MAX. DEPTH: 4
1
2
˝
3 / - No. 787 Blade
4
˝
3 / - No. 788 Blade
8
CRAIN
No. 787
CRAIN
No. 788
No. 788
No. 787
GUARANTEE
CRAIN CUTTER CO., INC.
FAX: 408-946-4268
-
FORM F1795 Rev.08/07
INSTRUCTION
MANUAL
FOR

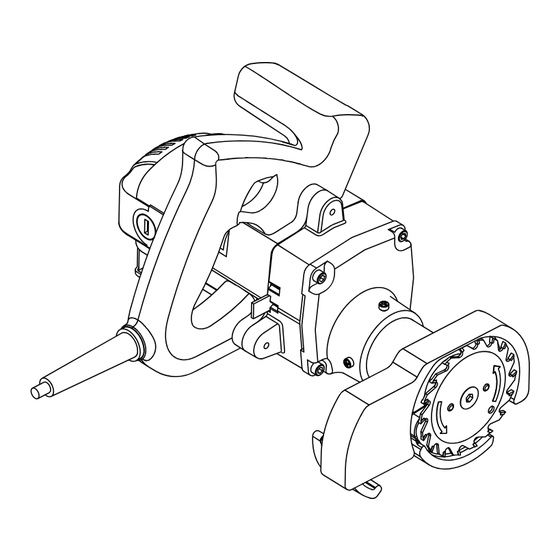

No. 795 TOE-KICK SAW
wARnIngs:
KICKBACK HAZARds:
•
Cut slowly. Keep motoR Rpms
HIgH At All tImes.
•
gRIp fIRmly wItH BotH HAnds At
All tImes.
•
foR use undeR toe spACes only.
•
Cut In foRwARd dIReCtIon only.
•
Cut stRAIgHt only.
•
don't Remove fRom tHe Cut
untIl tHe BlAde stops.
•
use new sHARp BlAdes.
dust HAZARds
Some dust created by using power tools contains
chemicals known to the State of California to cause
cancer and birth defects and other reproductive
harm.
