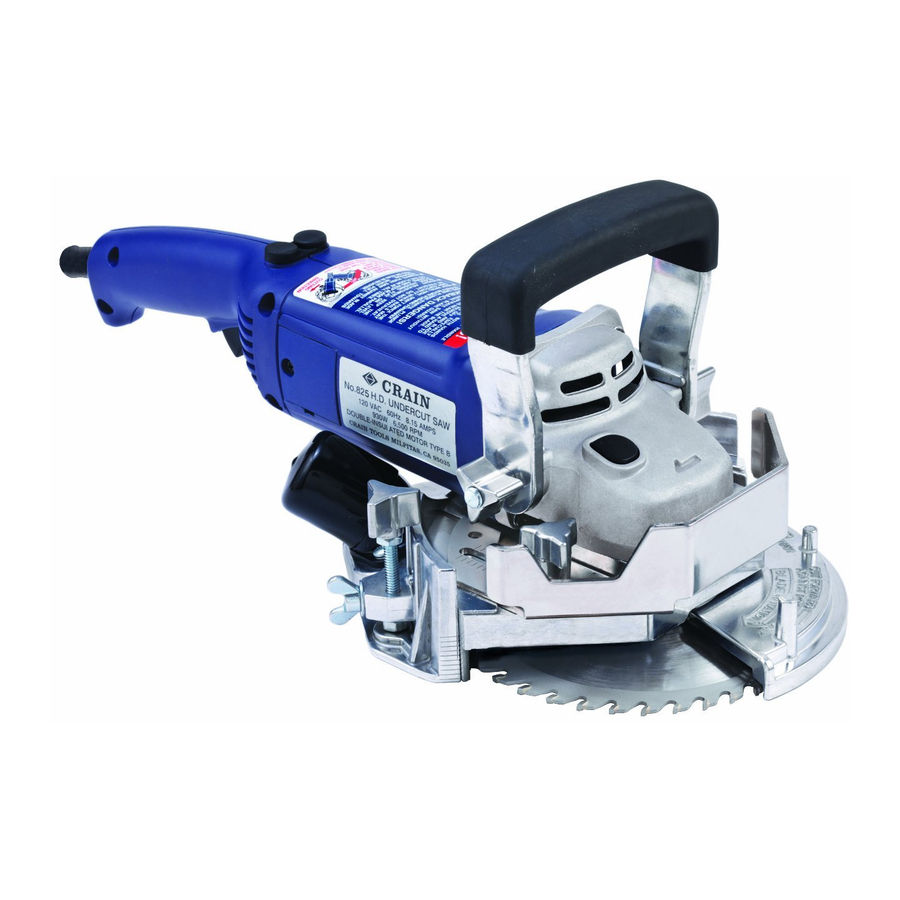

CRAIN 825V Instruction Manual

DOOR CUTTING:
see Figure 15
Open the door to the maxi-

mum, away from the case-
ments. Work from the inside
of the door outward, away
from the hinges. To avoid
splintering veneer doors, it
may be advisable to score
the veneer surface at the de-
sired height of the cut, prior
Figure 15
to using the saw. An applica-
tion of wide masking tape in the cutting zone also helps
reduce splintering, and will protect the saw housing from
scratching the veneer. DO NOT MOVE OR LIFT DOOR
WHILE CUTTING OR KICKBACK MAY RESULT!
NOTE: The maximum thickness of cut is 1 /
5

is adequate for most doors. Check for adequate depth
of cut before starting. Thicker doors may require cuts
from both sides of the door. Take care not to leave a thin
remnant of door on the opposite side, which can easily
break off and crack the veneer. Also, check that the
floor is at the same elevation on both sides of the door,
or additional height adjustment may be required.
The maximum height of cut is one inch. To cut off

higher than one inch, place a flat sheet of plywood
underneath the saw.

POCKET DOOR CUTTING:

Take precautions necessary

CAUTION!
for veneer doors and check HOLD SAW
STATIONARY
door thickness as described
above (under "Door Cutting").
BLADE EXPOSED
Pocket door cutting requires KEEP HANDS
& FEET AWAY
two people. One must hold
FROM CUT!
the saw down and in a fixed
PULL DOOR
position, while the other per-
IN THIS
son slowly pulls the door
DIRECTION
into the blade. DO NOT LIFT
Figure 16
DOOR OR THE SAW WHILE
CUTTING OR KICKBACK MAY RESULT!
Remove any unfinished area at the bottom of the

pocket door with a hand saw, following along in the
pre-established cut.

MASONRY, STONE, OR TILE UNDERCUTTING:

The No. 805 Masonry Blade

is primarily used for cutting
brick. It is not for use on tile
or stone. Use the No. 822
Diamond Blade for cutting
brick, tile or stone.
Figure 17
Masonry, stone, and tile undercutting creates a lot of

dust. We strongly recommend the operator wear a dust
mask and place a light cloth over the air intake on the
motor. This will prolong the life of the saw.
DO NOT use this saw for cutting steel or aluminum. Sparks

can cause fire in the wall behind the door casing.

MAINTENANCE:

If saw is dropped, the blade guard may be bent or otherwise
damaged, restricting full return. Sawdust that accumulates be-
hind the blade guard will cause it to become clogged, especially
drywall dust. Check operation of the blade guard before each
use. Do not use the saw if the blade guard does not operate
properly. When not in use, store saw in the custom carrying
case. The saw motor may run even if the switch malfunctions,
", which
causing the motor to not switch off. Do not use saw if the
8
switch malfunctions. Repair the switch immediately!

WARNING:

Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities contains chemi-
cals known to the State of California to cause cancer, birth
defects or other reproductive harm. Some examples of
these chemicals are:
lead from lead-based paints,

crystalline silica from brick, cement and other

masonry products, and
arsenic and chromium from chemically-treated

lumber.
Your risk from these exposures varies, depending on how
often you do this type of work. To reduce your exposure to
these chemicals: work in a well-ventilated area, and work with
approved safety equipment, such as those dust masks that
are specially designed to filter out microscopic particles.

GUARANTEE

This Crain No. 825/825V Heavy Duty Undercut Saw
is guaranteed to be free of defects in workmanship
and quality of materials for a period of one year.
Any parts of this saw found defective subject to the
guarantee will be replaced at no charge. Credit in
full or part cannot be extended by the distributor,
nor will a new saw be given as a replacement or
loaner.
Saws subject to this warranty must be accompanied
by same, returned freight PREPAID to Milpitas, CA,
and must be in assembled condition.
DATE OF MFG.
CRAIN CUTTER CO., INC.
Milpitas, CA 95035 TEL: (408) 946-6100
www.craintools.com
Printed by: HF

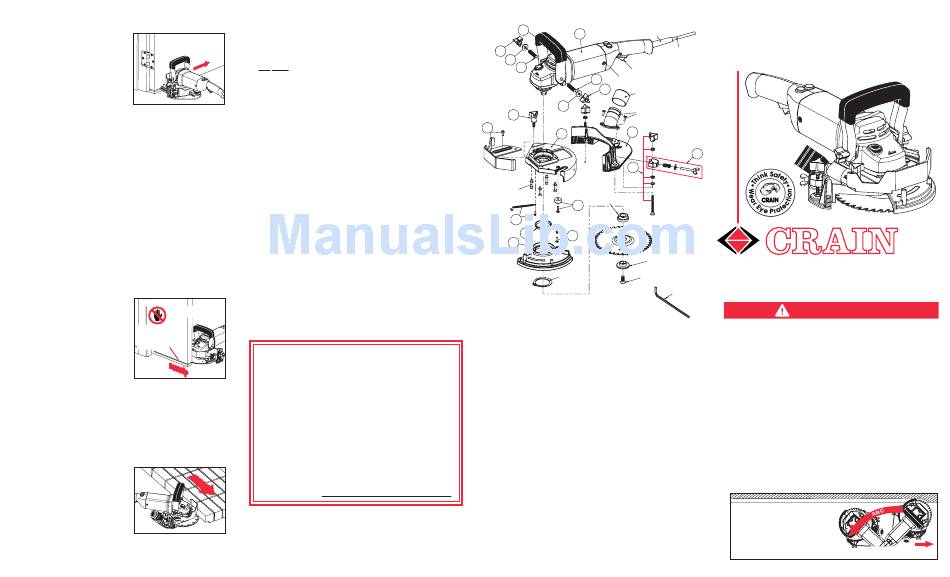

REPLACEMENT PARTS

02
03
22
04
22
08
16
15
1820-H
18
19
20
1555-P
NO. 825 HEAVY-DUTY UNDERCUT SAW
Order No. Description
1825-01 Power Unit, 120 V
1825-01V Power Unit, 220V
1825-02 Ratchet Handle
1825-03 Handle Three-Arm Knobs (2)
1825-04 Handle Threaded Studs (2)
1825-08 Depth Gauge Three-Arm
Knob
1825-10 Height Adjuster Three-Arm
Knob & Fasteners (5)
1825-11 Guide Washer &
Fasteners (4)
1825-14 Height Adjuster
1825-15 Housing
1825-16 Depth Gauge & Fasteners (2)
1825-17 Stopper & Screw
1825-18 Hooked Spring & Screw
1825-19 Blade Guard Sleeve

SPECIFICATIONS:

POWER UNIT
Voltage:
Construction:
Plug Type:
Amperes:
Wattage:
No Load Speed:
Max Depth of Cut:
Max. Height of Cut:
Toe Space Cutting Specifications:
Minimum Height / Maximum Depth:
Gross Weight:
Replacement Blades for both No. 825 / No. 825V: #821 Carbide-Tipped Blade, #805 Masonry
FORM F1825 - Rev.02/10
Blade, #822 Diamond Blade
INSTRUCTION
1820-Y
01
MANUAL
1820-O
1820-R1
04
1820-S
03
1820-P
1820-N
14
11
10
1812-O
17
21
1812-P
No. 825/825V
1812-Q
HEAVY-DUTY UNDERCUT SAW
1812-R
Order No. Description
1825-20 Blade Guard
•
1825-21 Flared Spring & Screw
IN USE, KEEP ONE HAND ON THE SWITCH HANDLE
1825-22 Handle Washers (2)
1820-H Housing Fastener Set (4) AND ONE HAND ON THE RATCHET HANDLE. DON'T
1820-N Dust Port w/Screws (4)
REMOVE A HAND TO CLEAR DEBRIS.
1820-O Power Cord Only
1820-P Dust Port Cap

KICKBACK HAZARDS:

1820-R1 Switch Type B, Black
•
1820-S Brushes (not shown)
THIS SAW PLUNGE-STARTS. PLUNGE SLOWLY BE-
1820-V Brush Holder Assembly plus
Brushes (not shown) FORE PUSHING FORWARD!
1820-Y Strain Relief Only
•
1555-P Snap Ring
KEEP RPMs HIGH. DON'T FORCE THE SAW, ESPE-
1812-O Blade Spacer
CIALLY WHEN NAILS MAY BE PRESENT.
1812-P Blade Clamp
•
1812-Q Blade Screw
Height Adjustment: KEEP THE BLADE HOUS-
1812-R 5mm Allen® Wrench
ING FLAT ON LEVEL FLOORS, AND KEEP BLADE
PARALLEL TO THE FLOOR AT ALL TIMES.
Model No. 825 Model No. 825V
•
120VAC, 60 HZ. 220VAC, 50HZ
ALWAYS PUSH SAW AGAINST BLADE ROTATION.
Double Insulated Double Insulated
3-Prong Plug UK Plug NEVER PULL TOWARDS YOU OR RUN IN REVERSE.
8.15 Amps 4.1 Amps
930 Watts 930 Watts
6,500 RPM 6,500 RPM
1 5 / " 1 5 / "

SAFE OPERATING POSITION:

8 8
1" 1"
KEEP KNEES AND OTHER
BODY PARTS OUT OF KICK
BACK ARC.
3 1 / " / 3 1 / " 3 1 / " / 3 1 / "
2 2 2 2
17.4 LBS. 17.4 LBS.
KNEEL TO THE SIDE!
DO NOT USE STANDING UP!
WARNINGS:
CUTTING DIRECTION
