Summary of Contents for IPN W980

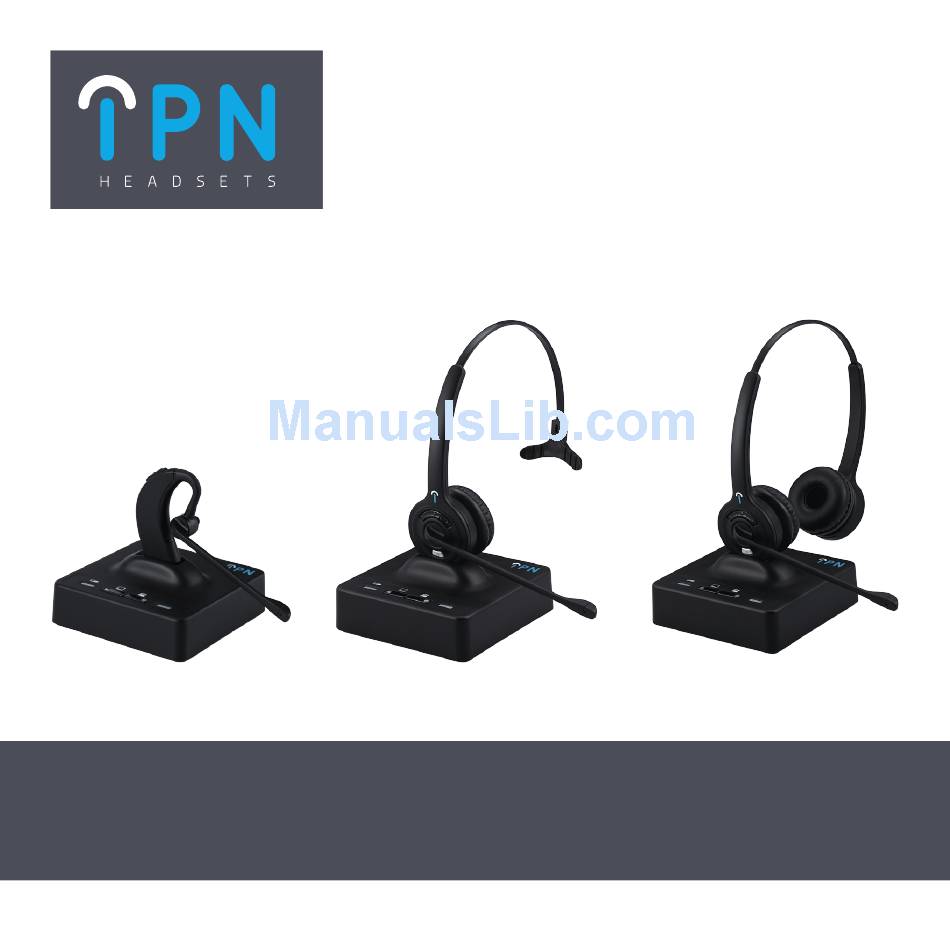

- Page 1 Operation IPN W9xx Manual...
- Page 2 A. Universal base station 1. Battery indicator 2. PC button 3. Telephone (TEL) button 4. Online indicator 5. USB connector (PC port) 6. Power socket 7. EHS port 8. Handset connector 9. Telephone connector (‘Tel’ port) 10. Microphone volume up/down 11.
- Page 3 B. IPN W970 over-the-ear 1. Receive volume up/down 2. Mute 3. Headset ON/OFF 4. Noise cancelling boom 5. Replaceable earplug 6. Battery...
- Page 4 C. IPN W980 monaural / IPN W985 binaural 1. Receive volume up/down 2. Mute 3. Headset ON/OFF 4. Noise cancelling boom 5. Battery...
-
Page 5: Table Of Contents
Contents: Product description Setup Connecting to a telephone or terminal with a headset port Connection to a telephone or terminal without a headset port Connecting to a compatible handset lifter (refer to your supplier) Connecting EHS with DHSG protocols (refer to your supplier) Connecting to a computer USB port Wearing style Operation... -
Page 6: Product Description
Product description The IPN DECT is a fully wireless headset solution offering the user the ability to work ‘handsfree’ with true wireless mobility. Main features: • DECT wireless headset solution • Universal headset base • Up to 8 hours talk time without recharging • Auxiliary port for connecting handset lifter or electronic hookswitch device • Noise cancelling microphone for reduced background noise • Secure high quality audio • Receive volume control on headset •... -
Page 7: Setup
Setup • Connect the power adaptor supplied with the product to the base unit. The base power LED will light. NOTE: The first time you use your headset, it is recommended that the headset is charged for a minimum of 4 hours before use. Connecting to a telephone or terminal with a headset port •... -
Page 8: Connecting Ehs With Dhsg Protocols (Refer To Your Supplier)
To replace the earplug of the IPN W970: twist the earplug 90 degrees and pull the earplug towards you. To replace the ear cushion of the IPN W980 or IPN W985: put your thumb on the top of the speaker and carefully pull the ear cushion at the bottom towards you. -
Page 9: Operation
Operation Making and receiving calls 3.1.1 Making an outgoing call in telephone mode • Ensure that the ‘TEL’ button on top of the headset base is selected. • Lift the headset from the base to start the call. If you are already wearing the headset, press the headset’s ‘ON/OFF’ button. The base ‘Online Indicator’ LED will light. If a handset lifter or electronic hookswitch device is connected to the headset base, the line will be seized. -
Page 10: Making An Outgoing Call In Voip Mode
3.1.3 Making an outgoing call in USB/PC mode • Ensure that the ‘PC’ button on the top of the headset base is selected. • Lift the headset from the base or press the headset’s ON/OFF button if you are already wearing it and the base ‘Online Indicator’ LED will light. • After finishing your VOIP call, press the ON/OFF button to disconnect. The base ‘Online Indicator’ LED will turn off. Adjusting the ringing volume When the headset is ringing to indicate an incoming call, you can adjust the ring volume with the volume control buttons located on the headset. -
Page 11: Out Of Range And Reconnection
Out of range and reconnection You will hear a warning tone in the headset when you walk out of range of the base. The headset will be disconnected from the base and the call will be automatically placed on hold. If you move back inside the range of the base the headset will automatically reconnect and the call will be active again. NOTE: If you do not move back inside the base range within 5 minutes the call will be disconnected. -
Page 12: Making A Conference Call
After the primary headset has ended the call, the unit will return to its normal state. The IPN DECT headset also allows you to make a conference call between your normal phone and a PC or MAC computer. To activate this option hold down the PC/USB switch for four seconds. -
Page 13: Overview Of Audio Signals
3.11 Using the IPN W9xx for call recording With the IPN W9xx it is possible to connect a normal telephone call to the USB port of your computer. This feature can be used to record phone calls with voice recording software on... -
Page 14: Troubleshooting
Health and safety instructions Please read the following safety and operational instructions before using your IPN Headsets product. Please keep these instructions for your reference. When using this product, these basic safety precautions and warnings should be followed to reduce the risk of fire, electric shock, injury to persons and damage to property. - Page 15 This product should never be placed over or near a heat register and should not be placed in locations which do not have proper ventilation. • If you experience a skin irritation after using this product, discontinue use and contact IPN Headsets. • Exposure to high volume sound levels or excessive sound pressure may cause temporary or permanent damage to your hearing. Although there is no single volume setting that is appropriate for everyone, you should always use your headset with the volume set at moderate levels and avoid prolonged exposure to high volume sound levels. The louder the volume, the less time is required before your hearing could be...
- Page 16 To avoid the risk of electric shock, explosion, fire or leakage of corrosive or toxic chemicals, please observe the following charging and battery warnings: Charging warnings • Use only the charger supplied by IPN Headsets to charge the product. Do not use the charger for any other purpose. Ensure that the voltage rating corresponds to the power supply you intend to use. •...
- Page 17 Europe Declaration This product is CE marked according to the provisions of the R and TTE Directive (99/5/EC). This product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Safety: EN 60 950-01:2006+A11:2009 EMC: EN 301 489-6 V1.3.1:2008-08 EN 301 489-1 V1.8.1:2008-04 EN 55022:2006+A1 EN 55024:1998+A1+A2 EN 61000-3-2:2006 EN 61000-3-3:5005+A1+A2 RF: EN 301 406 V2.1.1:2009-07 RF Safety: EN 50360:2001 (Headset) EN 50385:2002 (Base) Only to be used together with the delivered certified AC main adaptor with a GS mark.
- Page 18 www.ipn-headsets.com...
