Summary of Contents for IPN W920

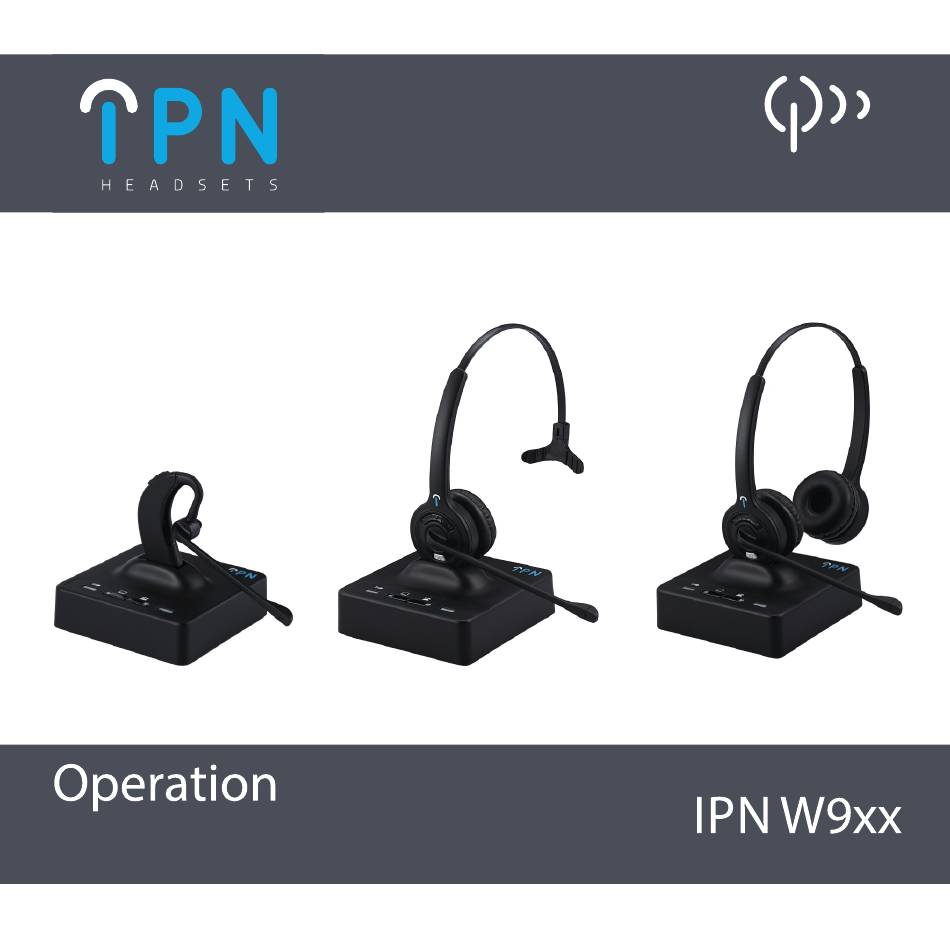

- Page 1 Eco Low Radiation Manual...
- Page 2 A. Telephone Only base station 1. Battery Indicator 2. Auto answer disable button 3. Headset registration button 4. Online indicator 5. Power socket 6. EHS port 7. Telephone connector (’Tel’ port) 8. Handset connector 9. EHS Selection switch 10. Microphone volume up/down 11.
- Page 3 B. Telephone/USB PC base station 1. Battery Indicator 2. PC button 3. Telephone (TEL) button 4. Online indicator 5. USB connector (PC port) 6. Power socket 7. EHS port 8. Telephone connector (’Tel’ port) 9. Handset connector 10. EHS Selection switch 11.
- Page 4 A. Telephone/Bluetooth/USB PC base station 1. Battery Indicator 2. PC button 3. Bluetooth Button 4. Telephone (TEL) button 5. Online indicator 6. USB connector (PC port) 7. Power socket 8. EHS port 9. Telephone connector (’Tel’ port) 10. Handset connector 11.
- Page 5 C. IPN Over-The-Ear 1. Receive volume up/down 2. Mute 3. Headset ON/OFF 4. Noise cancelling boom 5. Replaceable earplug 6. Battery...
- Page 6 D. IPN Monaural / IPN Binaural 1. Receive volume up/down 2. Mute 3. Headset ON/OFF 4. Noise cancelling boom 5. Battery...
-
Page 7: Table Of Contents
Contents: Product description Setup 2.1 Connecting to a telephone or terminal with a headset port 2.2 Connection to a telephone or terminal without a headset port 2.3 Connecting to a compatible handset lifter (refer to your supplier) 2.4 Connecting EHS with DHSG protocols (refer to your supplier) 2.5 Connecting to a computer USB port (Models W970/W980/W985/W990/W995) 2.6 Connecting to a bluetooth device 2.7 Wearing style... -
Page 8: Product Description
Product description The IPN DECT is a fully wireless headset solution offering the user the ability to work ‘handsfree’ with true wireless mobility. Main features: Ÿ DECT wireless headset solution Ÿ Universal headset base Ÿ Up to 9 hours talk time without recharging Ÿ... -
Page 9: Setup
Setup Ÿ Connect the power adaptor supplied with the product to the base unit. The base power LED with light. NOTE: The first time you use your headset, it is recommended that the headset is charged for a minimum of 4 hours before use. 2.1 Connecting to a telephone or terminal with a headset port Using the headset cord supplied with the product, connect the 'Tel' port on headset Ÿ... -
Page 10: Connecting Ehs With Dhsg Protocols (Refer To Your Supplier)
2.4 Connecting EHS with DHSG protocols (refer to your supplier) Connect the IPN DHSG cable to your telephone as indicated in its user guide. Ÿ Connect the IPN DHSG cable to the ‘AUX’ and ‘Tel’ ports located on the back of the headset Ÿ base. -
Page 11: Operation
Operation 3.1 Making and Receiving Calls 3.1.1 Making an outgoing call in Telephone mode Ensure that the 'TEL' button on top of the headset base is selected. Ÿ Lift the headset from the base to start a call. If you are already wearing the headset, Ÿ... -
Page 12: Making Or Receiving A Bluetooth Call
3.1.4 Making or receiving a Bluetooth call Ensure that the 'Bluetooth' button on top of the headset base is selected. • Lift the headset from the base or press the headset's ON/OFF button if you are already • wearing it and the base 'On line indicator’ LED will light. Make or answer the call on your bluetooth device ensuring that the DECT Headset is •... -
Page 13: Battery Level Indication
60%-80% 80%-100% Making A Conference Call Your IPN DECT Headset allows for a second headset to be temporarily connected to the base so that you can have a three way conference call. Setup the call using the primary headset unit. -
Page 14: Registering Headsets To The Base
NOTE: Only one of the two additional headsets can connect at any one time. 3.11 Using the IPN W9xx with Microsoft Lync (Models W970/W980/W985/W990/W995) When your W9xx is connected to a PC using the USB cable, it can interact with Microsoft Lync/Skype For Business communication software installed on your PC. -
Page 15: Switching Off Auto Pickup Mode (Telephone Only Base Station)
To enable MS Lync/Skype For Business - Press USB and microphone ‘+’ buttons together for 3 seconds. The USB LED will flash twice (fast) 6 times to confirm the function is enabled. To disable MS Lync/Skype For Business - Press USB and microphone ‘-’ buttons together for 3 seconds. -
Page 16: Troubleshooting
(If the telephone has one). Health and safety instructions Please read the following safety and operational instructions before using your IPN headset product. Please keep these instructions for your reference. When using this product, these basic safety precautions and warnings should be followed to reduce the risk of fire, electric shock, injury to persons and damage to property. - Page 17 Ÿ or sink, in a wet basement, or near a swimming pool. Discontinue use of product and contact IPN Headsets if the product overheats, has a damaged Ÿ cord or plug, if the product has been dropped or damaged, or if the product has come into contact with liquids.
- Page 18 Charging warnings Use only the charger supplied by IPN Headsets to charge the product. Do not use the Ÿ charger for any other purpose. Ensure that the voltage rating corresponds to the power supply you intend to use.
- Page 19 Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to instructions. Use only with (IPN W970 , IPN W980 and IPN W985) (3.7 V, 200 mAh Li-ion rechargeable battery). Supplied adaptor with ferrite must be used with this device to ensure compliance with the class B FCC limits.
- Page 20 Note: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 21 II) Notice: If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this IPN W9xx does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer.
- Page 22 Within the EU this product is intended to be used in Austria, Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Italy, Luxembourg, The Netherlands, Portugal, Spain, Sweden, United Kingdom, Cyprus, Czech Republic, Estonia, Hungary, Latvia, Lithuania, Malta, Poland, Slovakia and Slovenia and within the EFTA in Iceland, Norway and Switzerland. www.ipn-headsets.com...
