Summary of Contents for Covidien Filac 3000 EZ
- Page 1 Operating Manual Table of Contents Filac 3000 EZ/EZA Electronic Thermometer...
- Page 2 Operating Manual Filac ™ 3000 EZ/EZA Electronic Thermometer...
- Page 3 XII. Electromagnetic Conformity Declaration ............12 This product contains software solely owned by Covidien. Covidien grants the user a non-exclusive, limited license to use the software according to the operating instructions. A copy of the license can be obtained from Covidien. Filac ™...

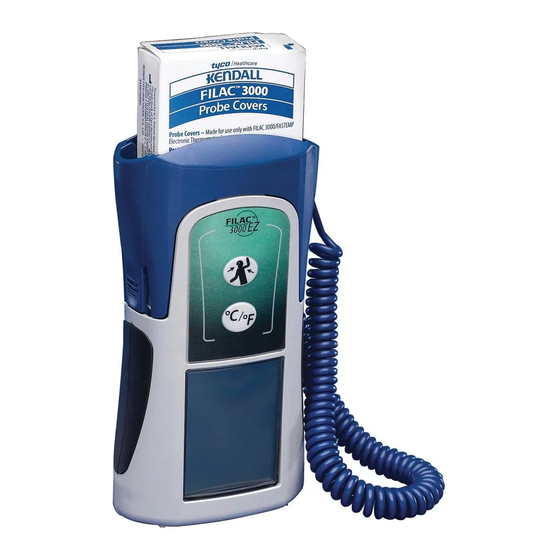

- Page 4 Houdas, Y. and Ring, E. F. J. Human Body Temperature, Its Measurement and Regulation; Plenum Press, NY, 1982; p.81-87. General Information The Filac 3000 EZ/EZA Electronic Thermometer is a fast, highly accurate, and easy to use clinical instrument for measuring patient temperatures by Oral, Axillary or Rectal means.
-
Page 5: Air, Oxygen Or Nitrous Oxide, Or An Oxygen Rich Environment
3. Do not use this thermometer without first installing a new Filac 3000 EZ/EZA Electronic Thermometer probe cover. 4. Use only Filac 3000 EZ/EZA Electronic Thermometer probe covers with this device. - Page 6 Icon Identification ORAL Out of Range - High Temperature Mode Temperature measurement Keep away from sunlight Works only with BLUE probe is above 109°F (43°C) and isolation chamber AXILLARY Out of Range - Low Temperature Mode Temperature measurement Keep dry Works only with BLUE probe is below 86°F (30°C) and isolation chamber...
-
Page 7: V. Instructions For Use
Instructions For Use Probe Covers —Applying & Removing Open probe cover box by lifting tab at top corner and pulling to remove top panel. Insert box of probe covers into top of isolation chamber. (To aid infection control, never switch boxes between blue and red isolation chambers. Also, never switch probes between blue and red isolation chambers. - Page 8 Oral & Axillary Temperature Taking 1. Make certain that the Blue isolation chamber/probe unit is attached. 2. Withdraw probe and apply a probe cover. The thermometer turns on automatically. 3. An icon identifying Oral or Axillary mode is displayed. The Rectal icon can not be displayed when a blue isolation chamber/probe is attached.
-
Page 9: Direct Mode
The Filac 3000 EZ/EZA Electronic Thermometer can be set to operate exclusively in Direct mode (disable Predictive mode). See the Direct Mode Lock Section for instructions on configuring the thermometer to operate exclusively in Direct mode. -
Page 10: Vii. Battery Replacement / Installation
VII. Battery Replacement / Installation 1. To access the batteries, remove the isolation chamber by depressing the tabs on the sides of the unit and slide off upwardly. 2. Pull back on the finger tab on the top of the battery door. The battery door should hinge open to expose the batteries. -
Page 11: Ix. Specifications
Specifications Medical Electrical Equipment Filac 3000 EZ/EZA Electronic Thermometer Classified with respect to electrical shock, fire, and mechanical hazards only in accordance with UL60601-1 Classified with respect to electrical shock, fire, and mechanical hazards only in accordance with CAN/CSA C22.2 No. 60601-1-08 Dimensions (Approximate, without base): in.- 3.2 W x 6.0 H x 2.1 D ;... - Page 12 Return unit to the factory if the device is dropped and performance appears degraded, or in the event that the environmental conditions for transport, storage and operation are exceeded. The Filac 3000 EZ/EZA Electronic Thermometer is in compliance with the following International Regulatory and Safety standards: UL60601-1 CAN/CSA C22.2 No.
-
Page 13: X. Customer Service
A Filac 3000 EZ/EZA Electronic Thermometer Calibration Plug (reorder number 500099) is available to check accuracy of the Filac 3000 EZ/EZA Electronic Thermometer. It replaces the regular probe and verifies the accuracy of the main unit electronics. Replace the main unit if accuracy is deficient. Follow the instructions that accompany the Filac 3000 EZ/EZA Electronic Thermometer Calibration plug. - Page 14 Complete Oral /Axillary Thermometer Includes electronic thermometer with Blue - Oral/Axillary isolation chamber and Blue - Oral/Axillary probe, with 4-foot (1.2 m) cord, and global manual on CD Filac 3000 EZ Reorder No. 504000 Filac 3000 EZA Reorder No. 504003 Filac 3000 AD Reorder No.
-
Page 15: Xi. Warranty
Limited Warranty: Covidien warrants to the original purchaser (“Customer”) that this product will be free of defects in materials and workmanship, under normal use, for three (3) years from the date of original purchase from Covidien or its authorized distributor. If... - Page 16 Guidance and manufacturer’s declaration – electromagnetic immunity The Filac 3000 Electronic Thermometer is intended for use in the electromagnetic environment specified below. The user of the Filac 3000 Electronic Thermometer should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance level...
- Page 17 Guidance and manufacturer’s declaration – electromagnetic immunity The Filac 3000 Electronic Thermometer is intended for use in the electromagnetic environment specified below. The customer or the user of the Filac 3000 Electronic Thermometer should assure that it is used in such an environment. Immunity Test IEC 60601 test level Compliance level...
- Page 18 Identification of a substance that is not contained or present within the D532,710; D535,202; D548,626; D554,008. product or packaging. COVIDIEN, COVIDIEN with logo and Covidien logo are U.S. and internationally registered trademarks of Covidien AG. TM* Trademark of its respective owner.
