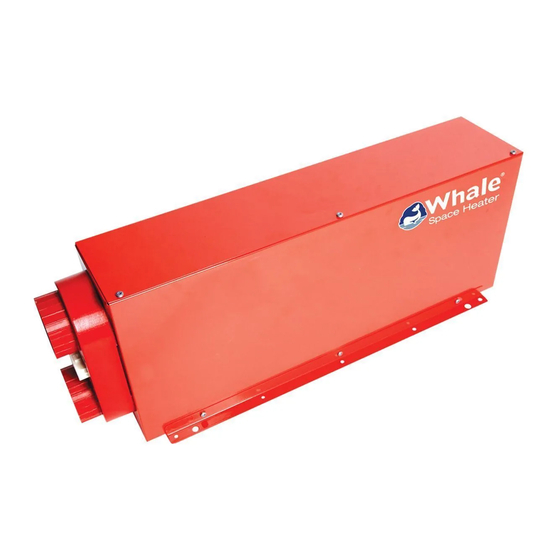

Whale SH2201 Installation & User's Instructions

Gas Only Space Heater Mk II
INSTALLATION & USER INSTRUCTIONS
Thank you for purchasing this Whale® product.
For over 40 years Whale® has led the way in the design and manufacturer of freshwater and waste systems
including:- plumbing, faucets, showers and pumps for low voltage applications. The company and its products have
built a reputation for quality, reliability and innovation backed up by excellent customer service.
For information on our full product range visit: www.whalepumps.com
CONTENTS
1. Principles of Operation
2. Specification
3. Application
4. Warnings
5. Parts List
6. Instructions for Installation
7. Instructions for Use
8. Maintenance
9. Trouble Shooting
10. Winterising
11. Service Support Details
12. EU Declaration of Conformity
13. Patents and Trademarks
14. Warranty
15. Appendix A - Identifying Flue Type
LIST OF IMAGES
Fig. 1 Components drawing
Fig. 2 Installation in vehicle
Fig. 3 Installation under vehicle
Fig. 4 Dimensions – top view inside vehicle
Fig. 5 Dimensions – side view inside vehicle
Fig. 6 Dimensions – front view inside vehicle
Fig. 7 Dimensions – top view outside vehicle
Fig. 8 Dimensions – side view outside vehicle
Fig. 9 Dimensions – front view outside vehicle
Fig. 10 Flue locating diagram
Fig. 11 Attaching flues
Fig. 12 Heater locating
Fig. 13 Installation and securing of heater
Fig. 14 Floor construction and cut out
Fig. 15 Attaching under floor heater
Fig. 16 Attaching flues
Fig. 17 Secure flue brackets
Fig. 18 Connect to gas supply
Fig. 19 Connect gas supply to under floor heater
Fig. 20 Hot air duct
Fig. 21 Hot air duct to under floor heater
Fig. 22 Tee fitting orientation
Fig. 23 Cold air duct
Fig. 24 Cold air duct to under floor heater
Fig. 25 Insert control panel
Fig. 26 Secure control panel
1
SH2201 / SH2211B
