Summary of Contents for Whale SL5512

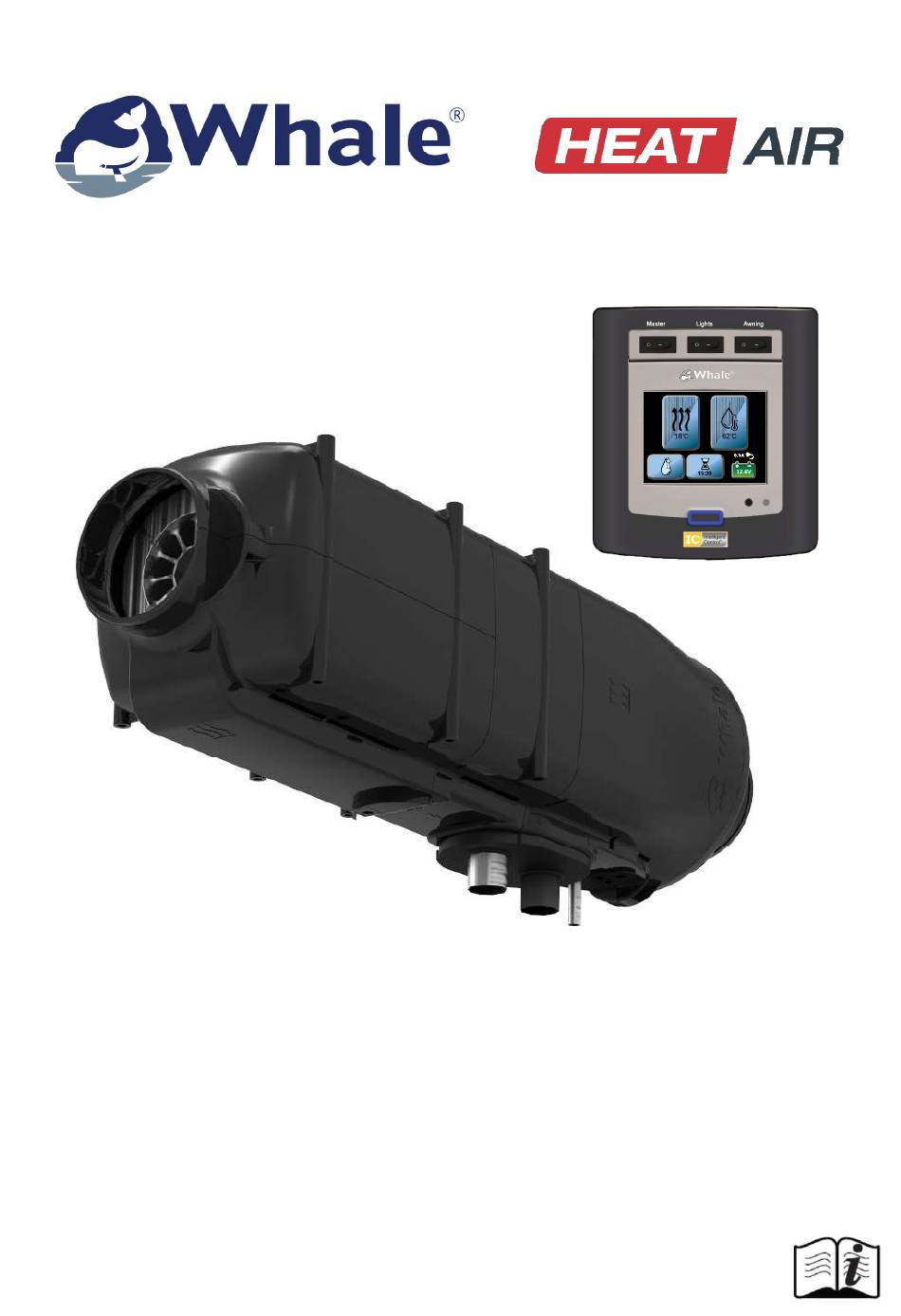

- Page 1 Gas & Electric Space Heater Recreational Vehicle warm-air heater operates using gas and/or electric SL5512, SL7512, SL5502, SL7502 Operating Instructions with iVan Control Panel...
-
Page 2: Table Of Contents
It is the sole responsibility of the vehicle owner to ensure that the appliance is in a safe operating condition and is operated correctly. • The unit may be operated only with approved Whale control panels and accessories. • If the fl ues have been placed near or directly beneath an opening window, the device must be equipped with an automatic shut-off... - Page 3 • Heater must not be operated when refuelling the vehicle, the towing vehicle or other appliances, or when the vehicle in which the heater is installed is in a confi ned space such as a garage (BS EN 624). Make sure that the heater defi...
-
Page 4: Warnings
• Do not smoke • Shut off gas connection • Leave the vehicle Immediately ensure that the system is thoroughly checked by a registered gas engineer at a Whale ® Approved Service Centre or by a member of the Whale Service Engineer Network. -
Page 5: Instructions For Use
5. Instructions for Use - iVan Control Panel Figure 1. Whale iVan Control Panel Overview Figure 2. Space Heater Icon... - Page 6 Figure 3. Room Heater Control Screen Icon Description Icon Description 0.75kW Electric Off 0.75kW Electric On 1.50kW Electric Off 1.50kW Electric On 3.00kW Electric Off 3.00kW Electric On Gas Off Gas On Fan Off Fan On Off Button Active Off Button Inactive Night Mode (10 C - 18 C) Off...
- Page 7 1. Select Temperature 2. Activate Gas Power And/Or 3. Activate Electric Setting Usable Electric Settings 0.75kW 230V a.c. 1.50kW 230V a.c. 3.00kW 230V a.c.
- Page 8 4. Setting Timers 5. Activating Timers...
-
Page 9: Troubleshooting
2. Go to step 4 Example Fault types #5-11 Internal fault 1. Go to step 4 2. Call Whale support +44 (0)345 9090 911. Fault type #15 - Multiple faults 1. Power off 2. Check heater for recurring faults 3. Power on... - Page 10 Step 4 - Clear Lockout If problems persist please contact Whale Support on +44 (0)345 9090 911.
-
Page 11: Maintenance / Repairs
Use of the appliance for non-leisure purposes The heat exchanger must be replaced with a Whale original spare part every 10 years from date of registration. See the data label on the heater for the fi rst time it was put into service. - Page 12 Whale® and iVan® are registered trademarks of Munster Simms Engineering Ltd. Warranty This Whale product is covered by a 2 year warranty. Please see the enclosed document for details of our Statement of Limited Warranty. Caravan or Motorhome manufacturer’s warranty terms may apply, please refer to manufacturer’s handbook for details.
Need help?
Do you have a question about the SL5512 and is the answer not in the manual?
Questions and answers
Why does our heating keep dropping ampage without us doing anything ? We set the heating to 21⁰C on 6.5A two hours ago. Its getting cool in the van so I've looked at the heater panel and the room temp is 20ºC and it's switched itself down to 3.3A. The heating hasn't kicked in. There are no timers set. Any suggestions, please?
The Whale SL5512 heating system could drop amperage from 6.5A to 3.3A without user intervention if the system automatically switches to a lower electric setting. Usable electric settings include:
- 6A (0.75kW)
- 10A (1.50kW)
- 16A (3.00kW)
A drop in amperage may occur if the system reduces power draw based on internal controls, reduced heating demand, or voltage fluctuations. Additionally, if the supply voltage drops below the required range (under 10.5V d.c.), the heater may become inoperable or reduce function, which could also lower current draw.
